Anchor Points

NOTE: Attaching the child seat tether strap to the anchor hardware can only be done with the convertible top in the full-up position. Read these instructions carefully prior to installation of the tether anchor kit.









Anchoring Points

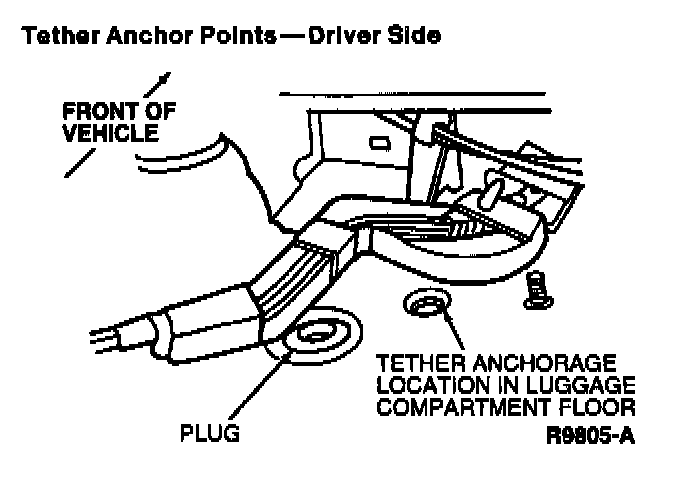

The convertible model has two tether anchoring points in the luggage compartment floor at the locations shown in the following illustrations. Choose either of these locations available for attaching the tether anchorage hardware.

NOTE: The tether anchorage locations are not immediately visible. Remove the luggage compartment floor carpet to gain access to these locations.
