Evaporative Emission Control Canister: Service and Repair

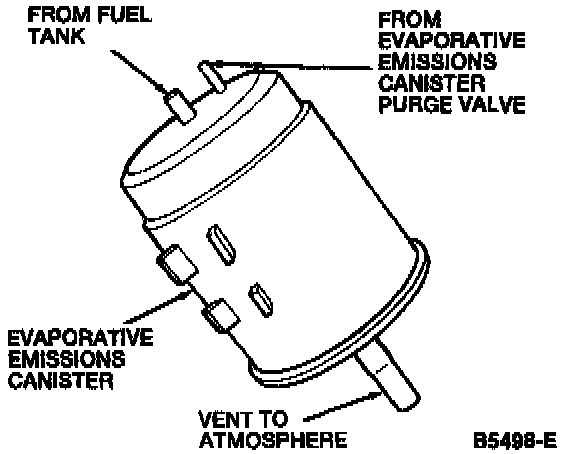

Evaporative Emissions Canister:

1. Loosen the hose clamps and remove the hoses from the top of the evaporative emissions canister.
2. Remove the canister by lifting it straight up to disconnect it from the bracket.
3. To install, reverse the removal procedure.
