Seat Latch: Service and Repair

If the front seat back latch does not pass the sensitivity test, the entire front seat back latch assembly must be replaced. Latch Sensitivity Test
Service of the front seat back latch components is not acceptable, and should not be attempted.







REMOVAL
1. Remove front seat.
2. Disengage front seat back cover to gain access to front seat back latch upper cover.

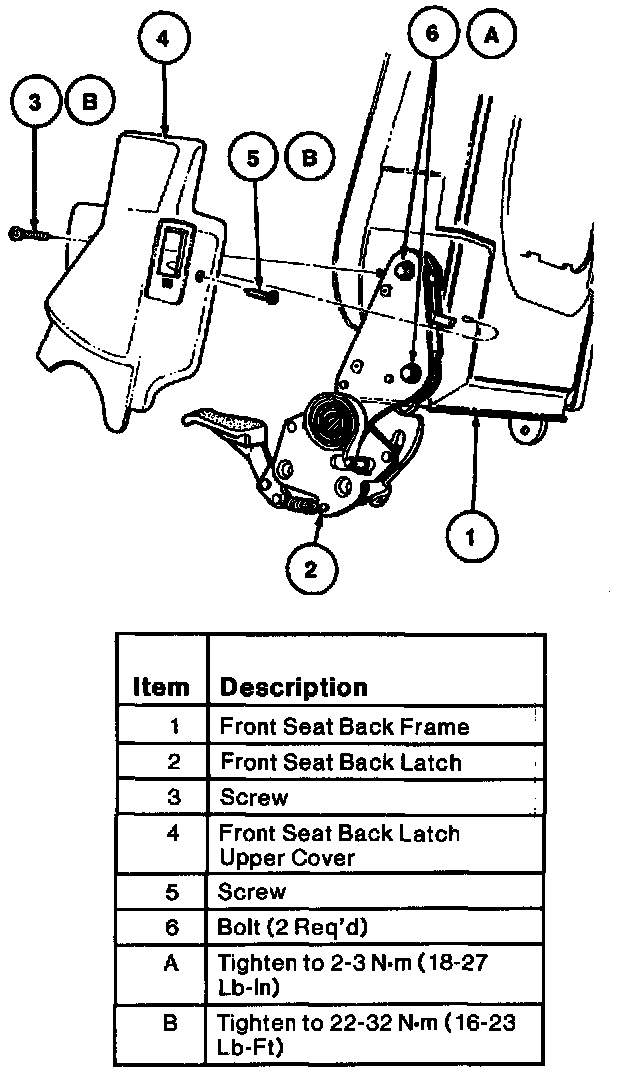

3. Remove two screws retaining front seat back latch upper cover to front seat back frame.







4. Remove two bolts retaining front seat back latch to front seat back frame.

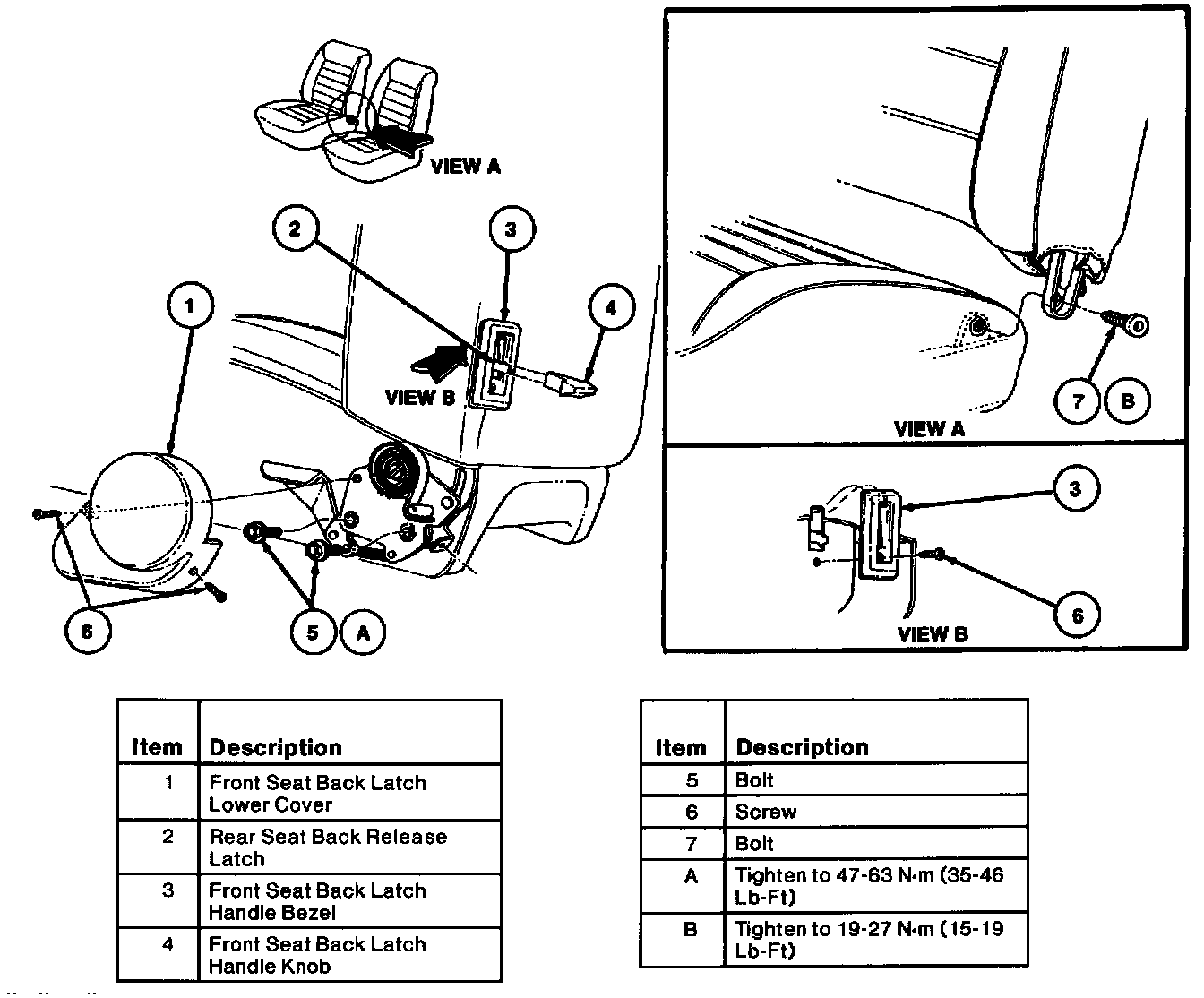

5. Remove two screws retaining front seat back latch lower cover to front seat cushion frame and spring.
6. Remove two bolts retaining front seat back latch to front seat cushion frame and spring and remove front seat back latch.

INSTALLATION
1. Follow removal procedure in reverse order.

NOTE: After latch assembly replacement, the seat assembly must be checked for proper operation prior to installing the seat assembly. Refer to front seat back latch sensitivity test. Latch Sensitivity Test

2. Tighten latch-to-front seat back frame bolts to 22-32 N.m (16-23 Lb-Ft).
3. Tighten front seat back latch to front seat cushion frame and spring bolts to 47-63 N.m (35-46 Lb-Ft).
4. Check seat tracks, recliner and safety belts for proper operation.
