Antilock Brakes / Traction Control Systems

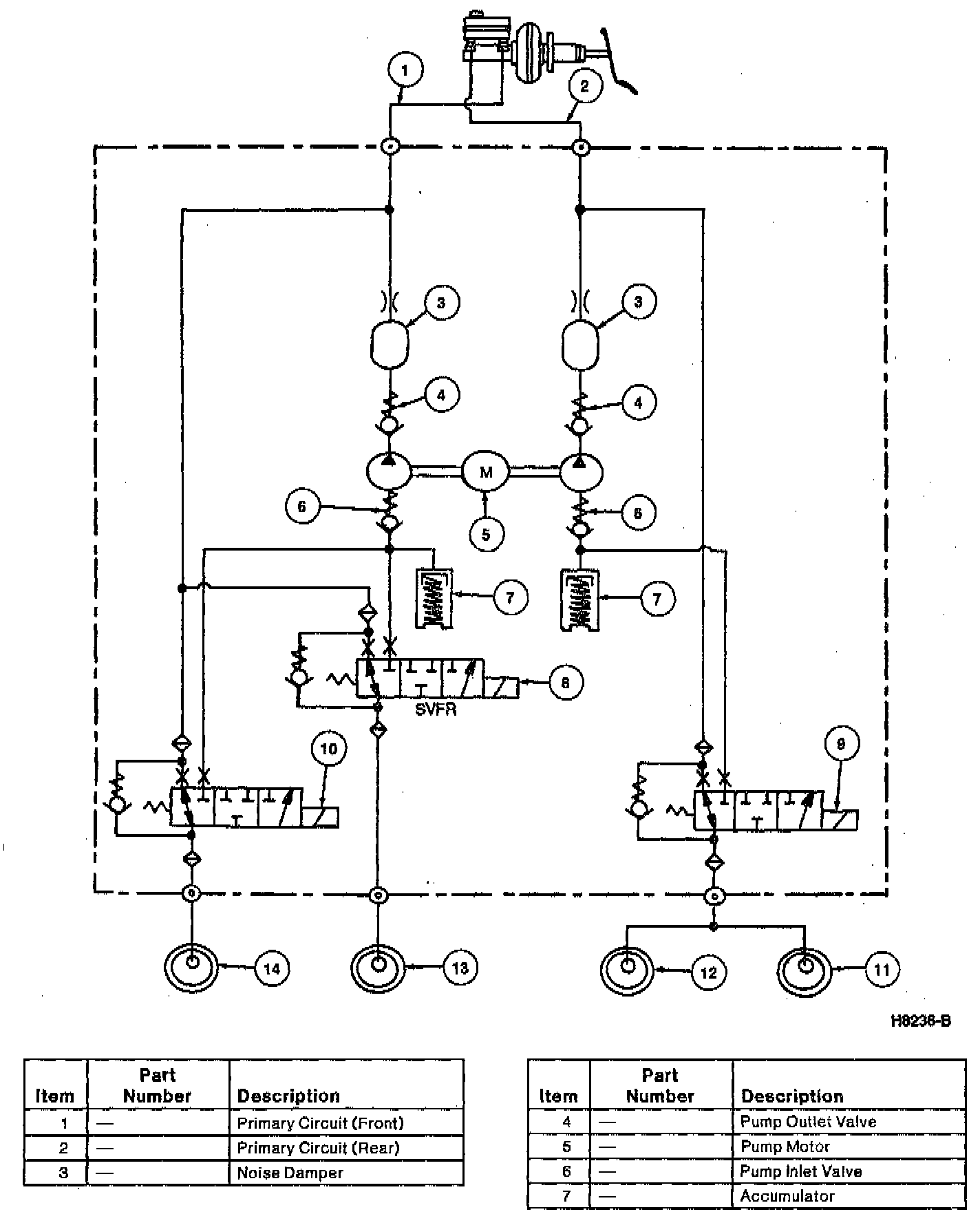

Hydraulic Schematic/Description (Part 1 Of 2):

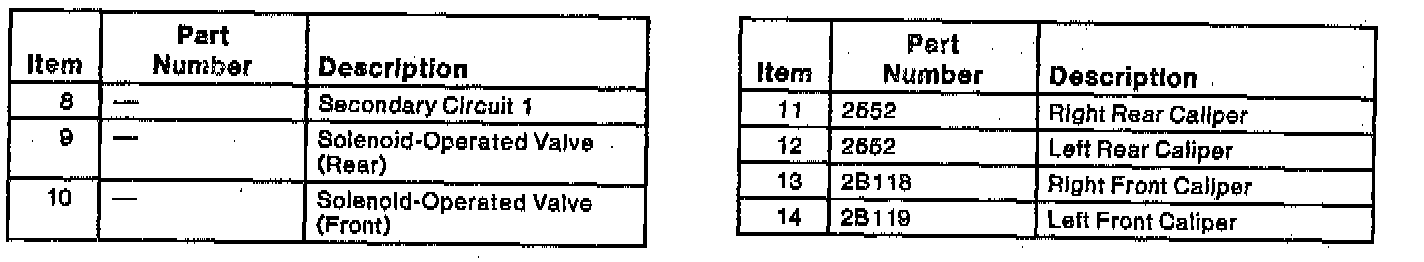

Hydraulic Schematic/Description (Part 2 Of 2):
