Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
1997
>>
Mustang V6-3.8L VIN 4
>>
Repair and Diagnosis
>>
Diagrams
>>
Vacuum and Vapor Hose Diagrams
>>
Fuel Delivery and Air Induction
Fuel Delivery and Air Induction

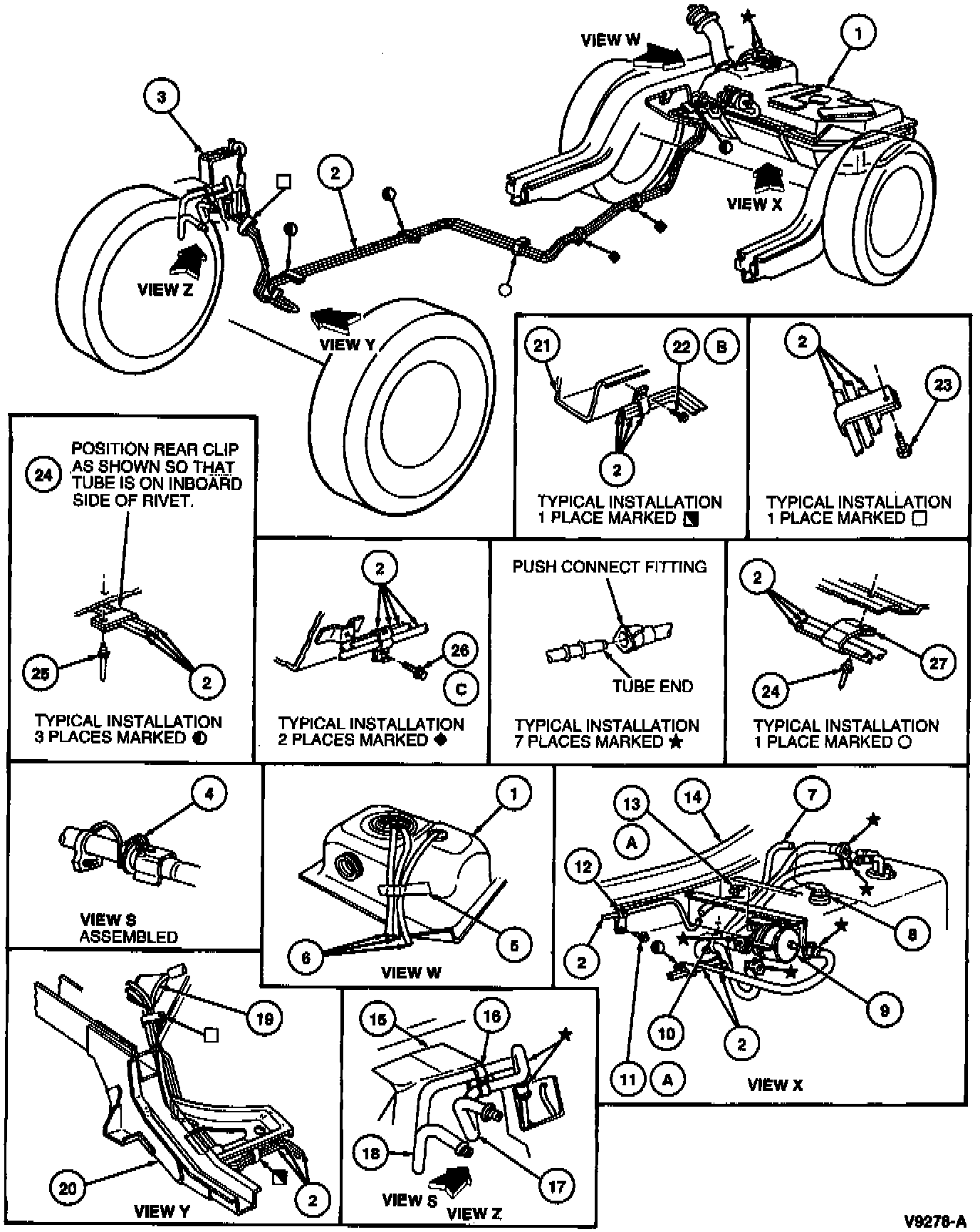

Fuel Supply And Vapor Hose Routing (Part 1 Of 2):
Fuel Supply And Vapor Hose Routing (Part 2 Of 2):
