License Plate Lamp: Service and Repair

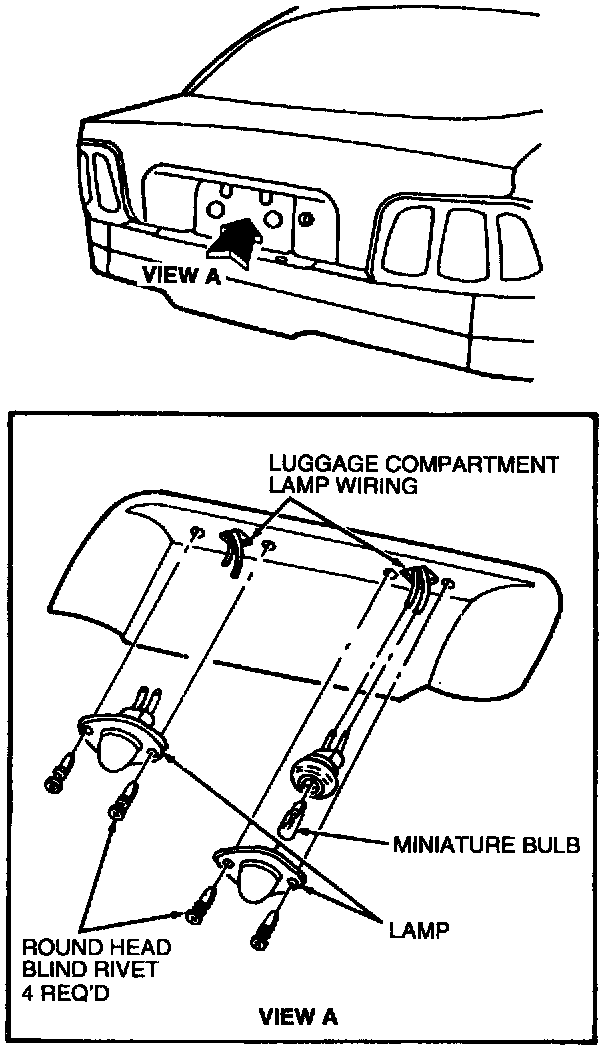

REMOVAL
1. Remove two round-head blind rivets from the lamp and pull the lamp down.
2. Remove socket from the lamp.

INSTALLATION
1. Install socket in the lamp and position the lamp on luggage compartment door.
2. Insert blind rivets in retaining holes and push center pins in to lock rivets in place.
