Canister Purge Control Valve: Service and Repair

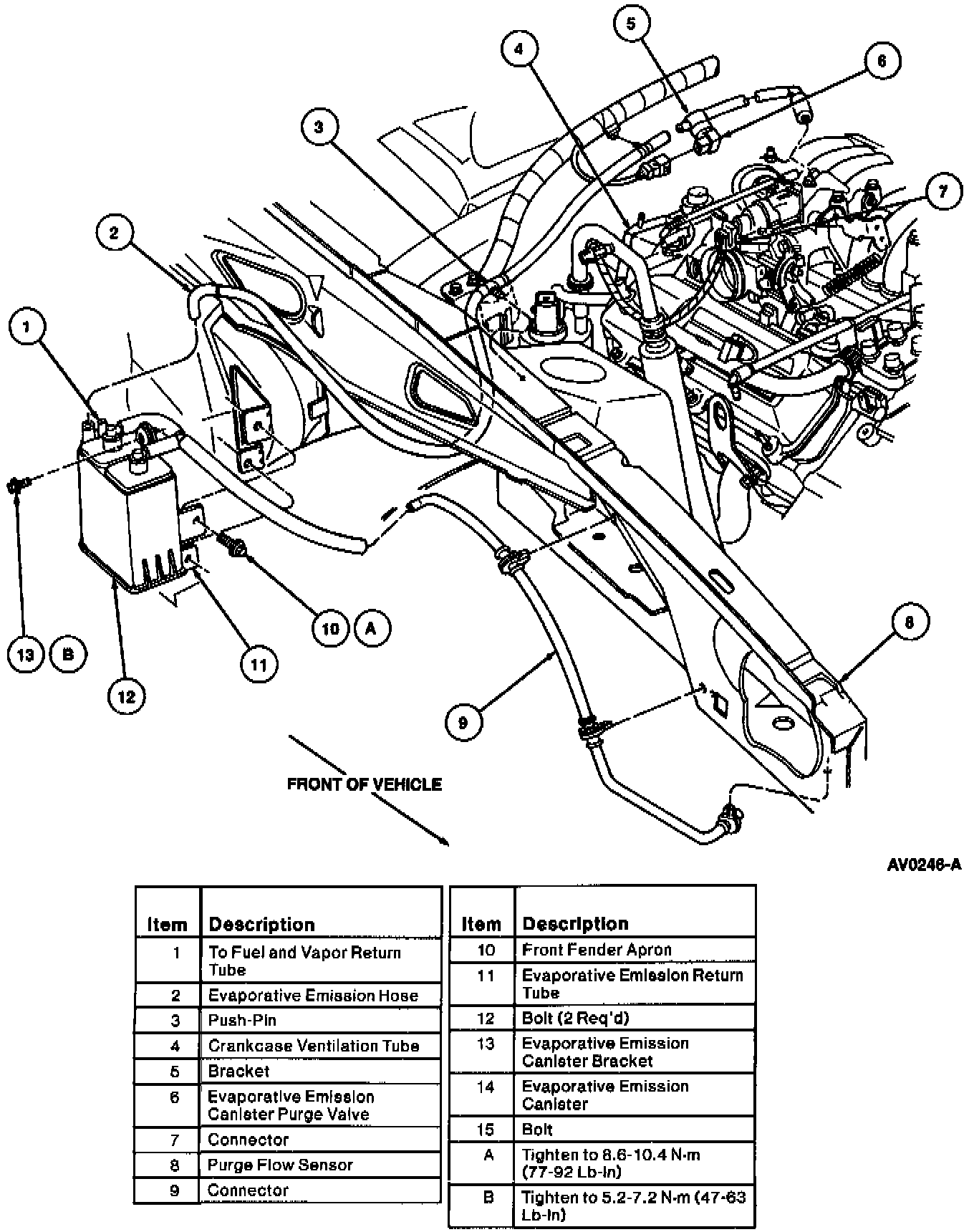

Typical Canister Venting System:

REMOVAL and INSTALLATION
1. Raise vehicle on hoist.
2. Remove evaporative emission canister. Remove evaporative emission canister bracket (if required).
3. Lower vehicle.
4. Disconnect canister purge control valve from engine control sensor wiring at connector.
5. Disconnect evaporative emission hose from crankcase ventilation tube connector. Remove evaporative emission hose retaining push pin from front fender apron. Disconnect retainer bracket on canister purge control valve from engine control sensor wiring and remove evaporative emission hose and canister purge control valve as an assembly.
6. If required, remove canister purge control valve from evaporative emission hose.
7. To install, reverse removal procedure.
