Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
1998
>>
Crown Victoria V8-281 4.6L SFI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Diagrams
>>
Connector Views
>>

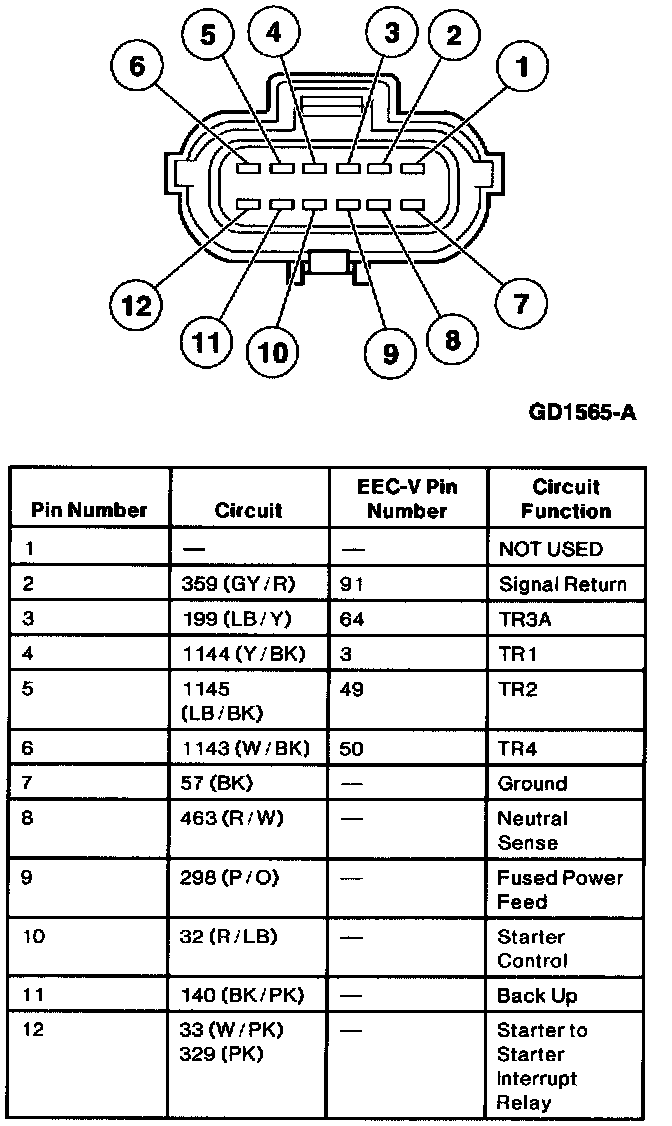

Digital Transmission Range Sensor Connector (C168/C110)
Digital Transmission Range Sensor Connector (C168/C110)
