Crown Victoria V8-4.6L CNG SOHC VIN 9
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Computers and Control Systems
>>
System Diagram
System Diagram

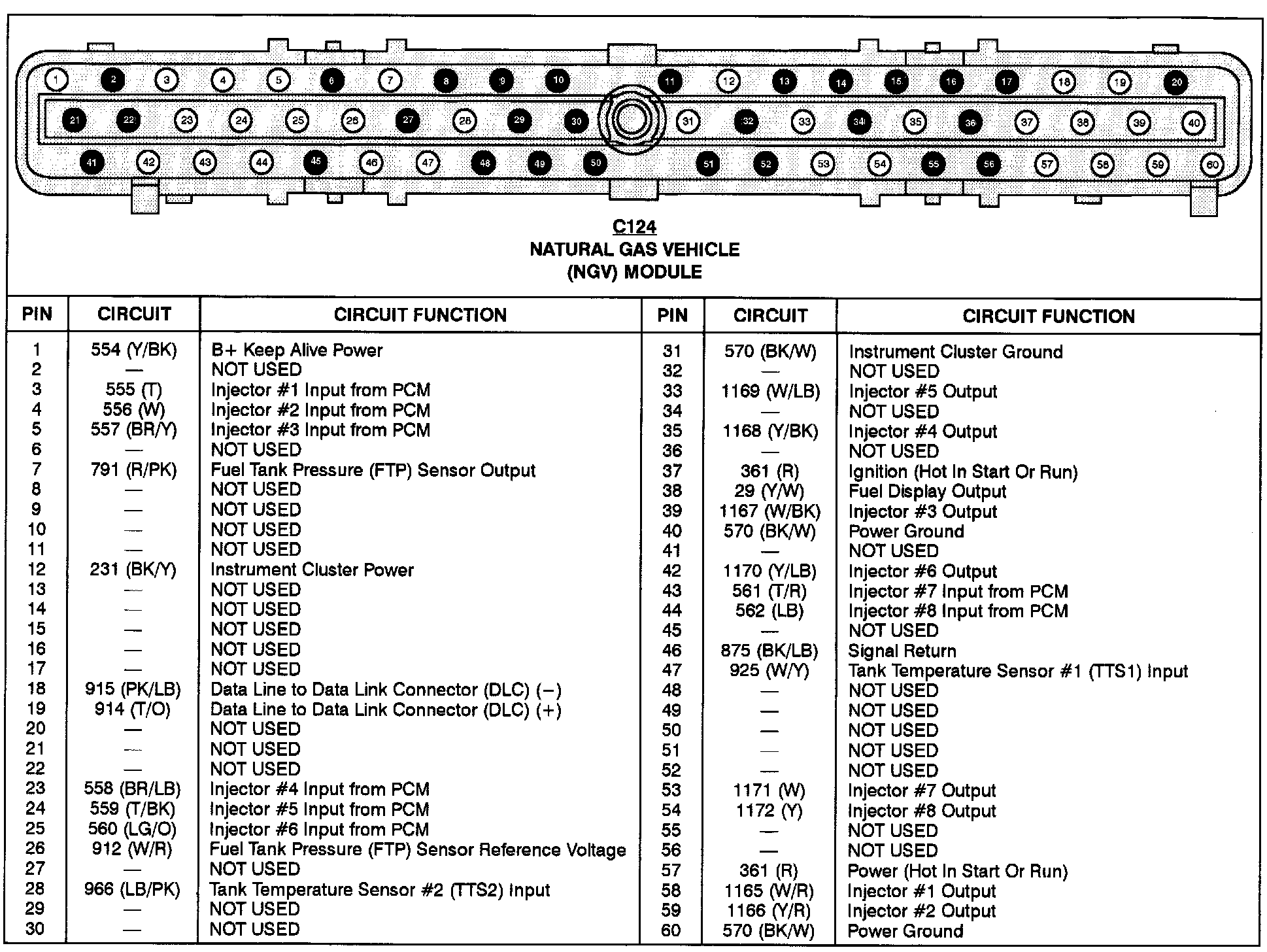

Natural Gas Vehicle Module:
