A: Speed Control Inoperative

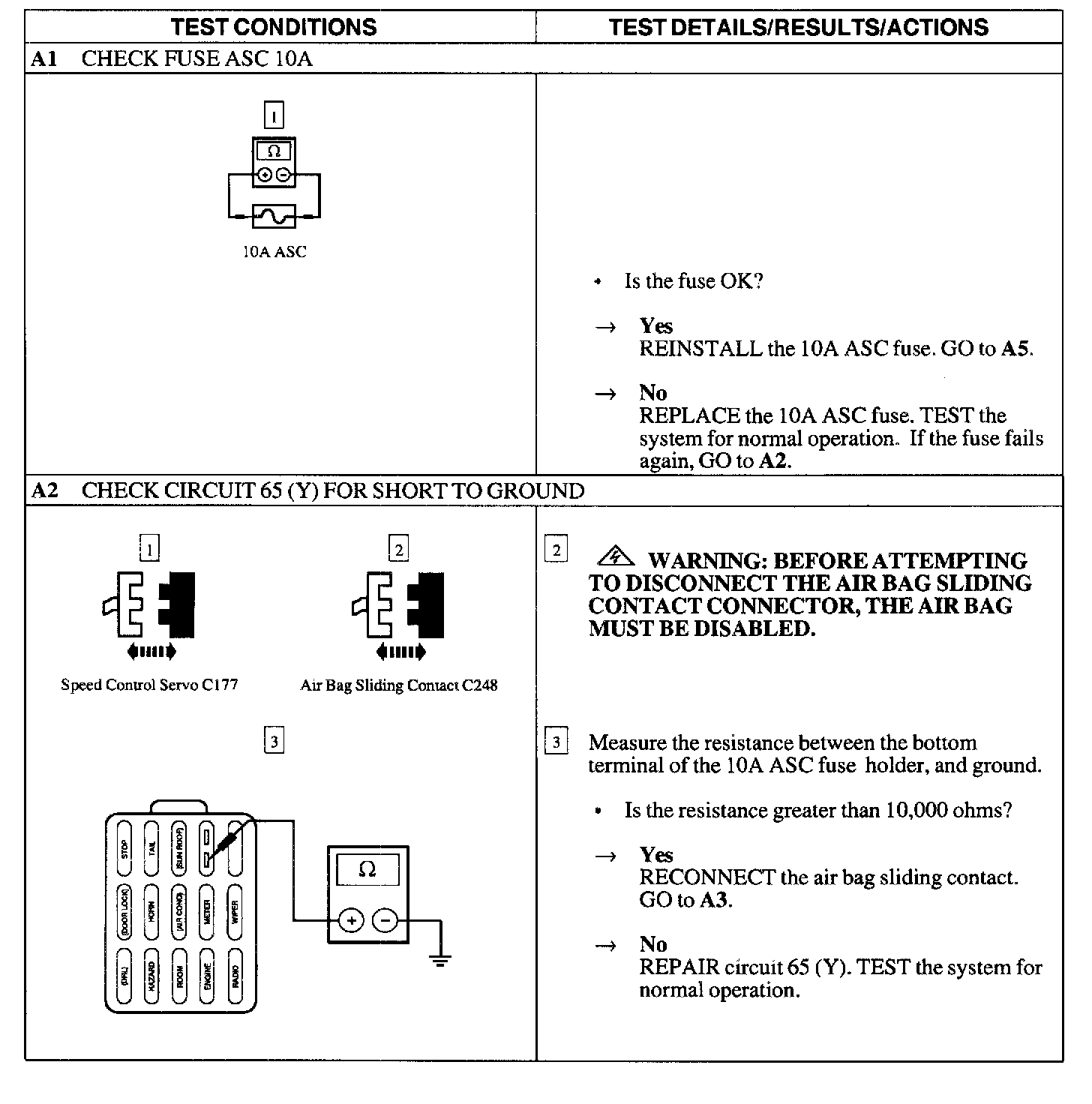

A1-A2:

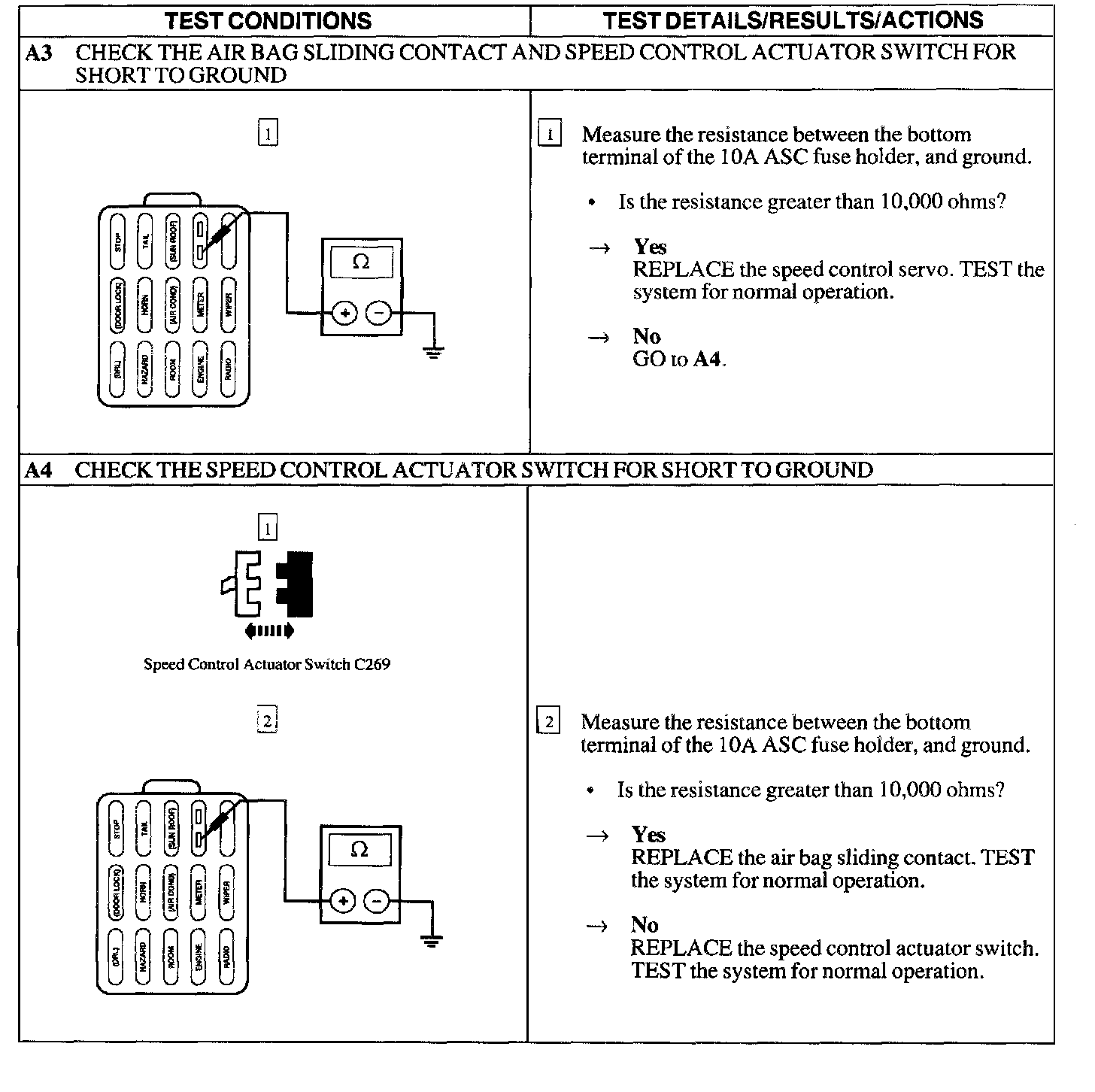

A3-A4:

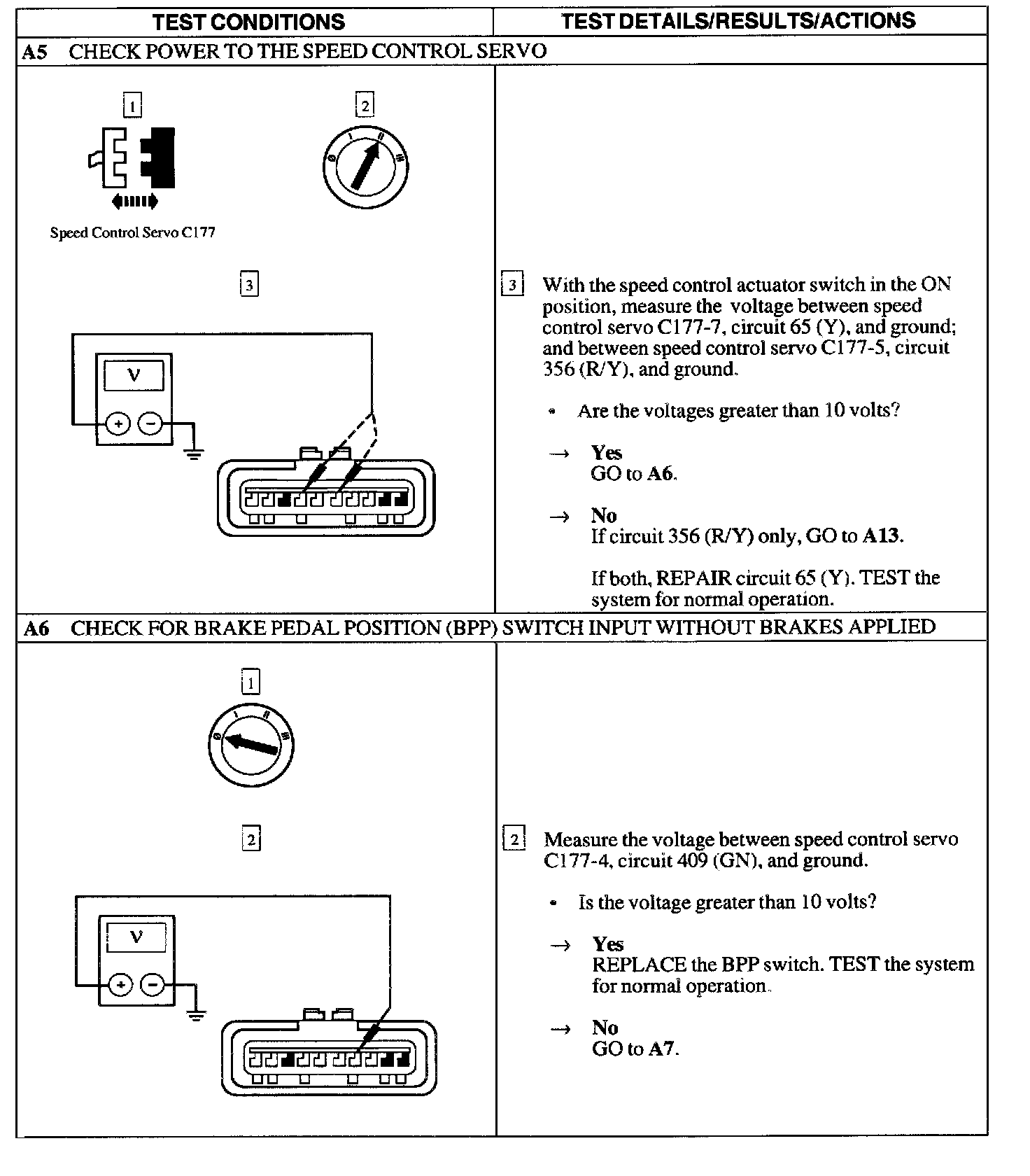

A5-A6:

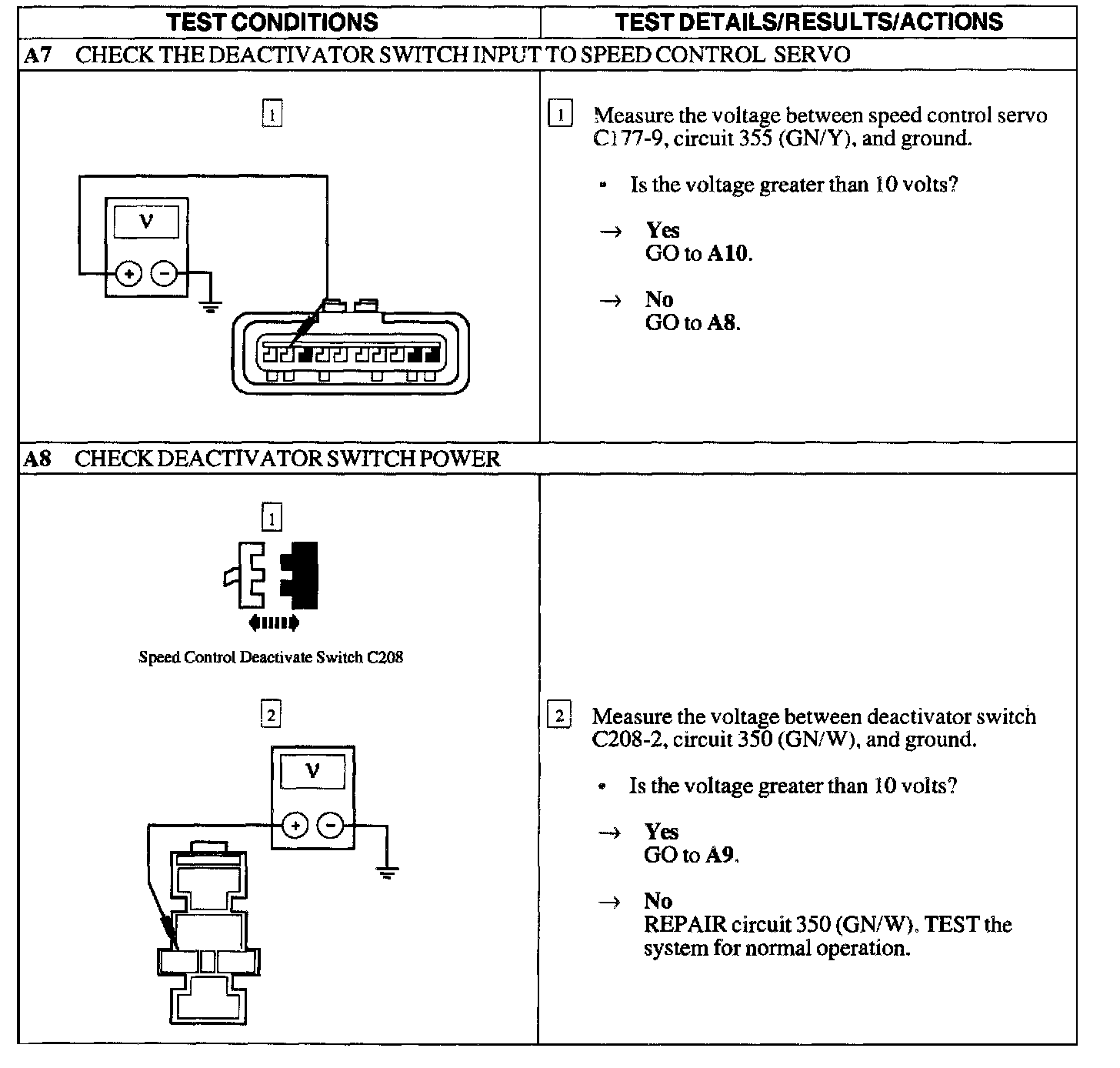

A7-A8:

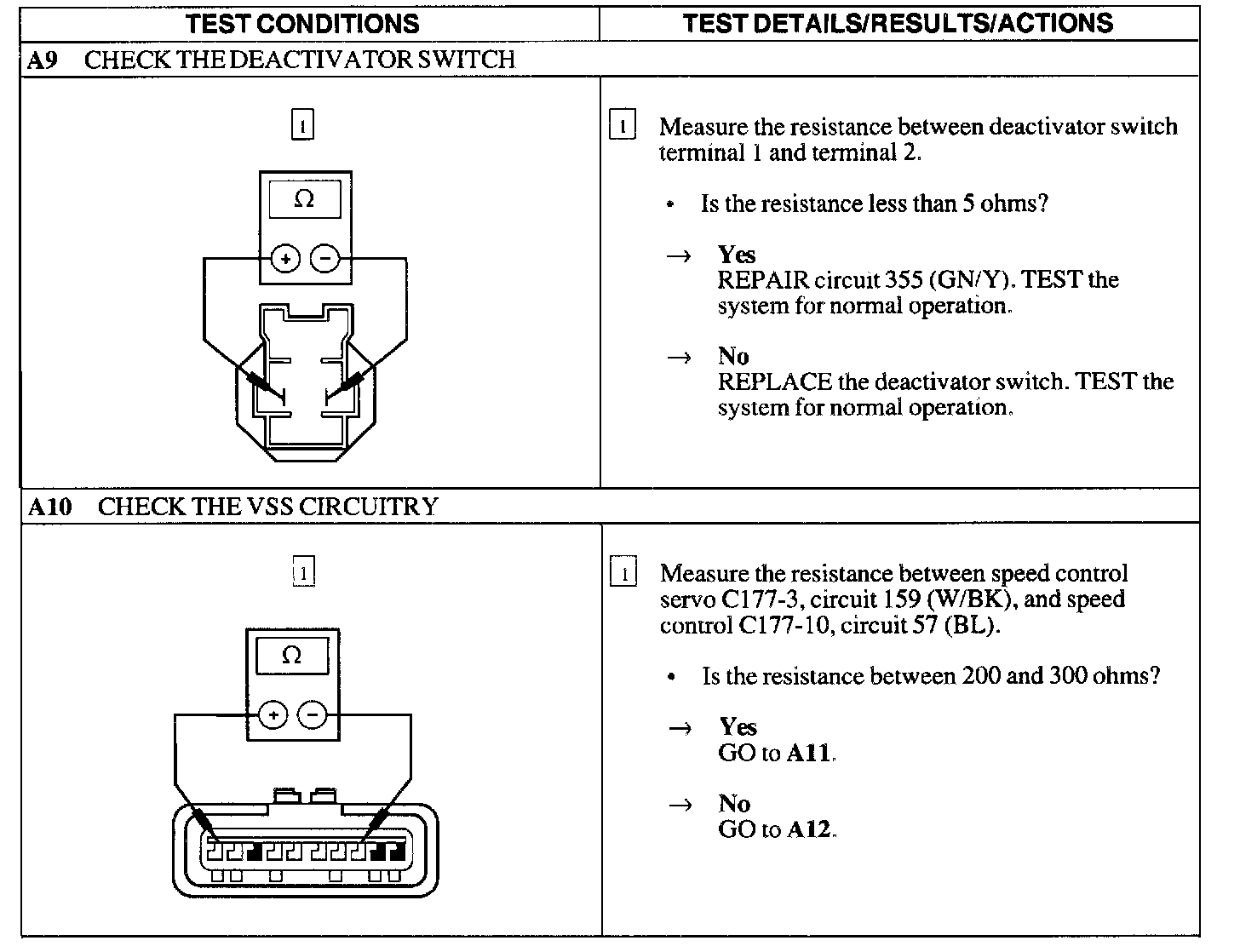

A9-A10:

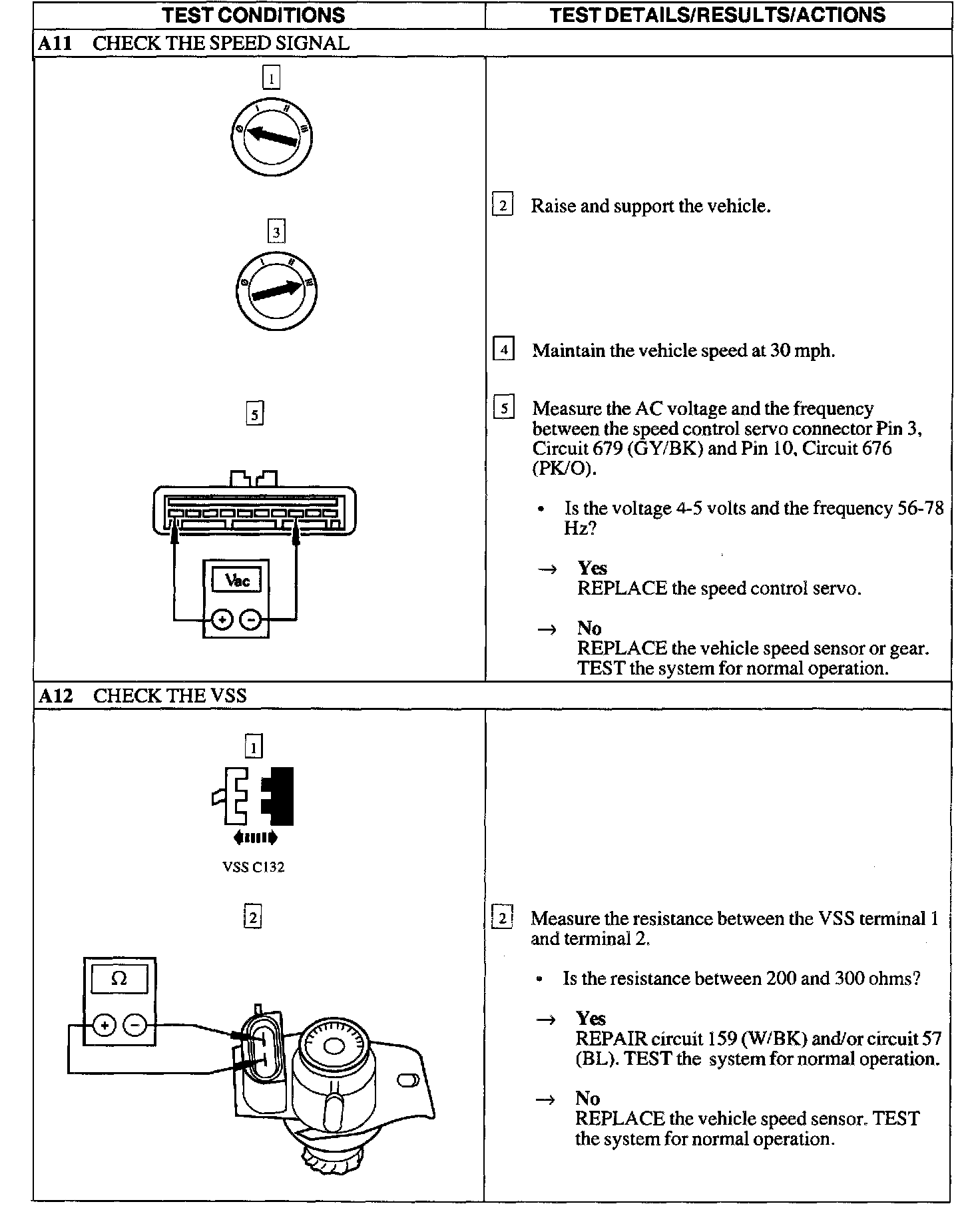

A11-A12:

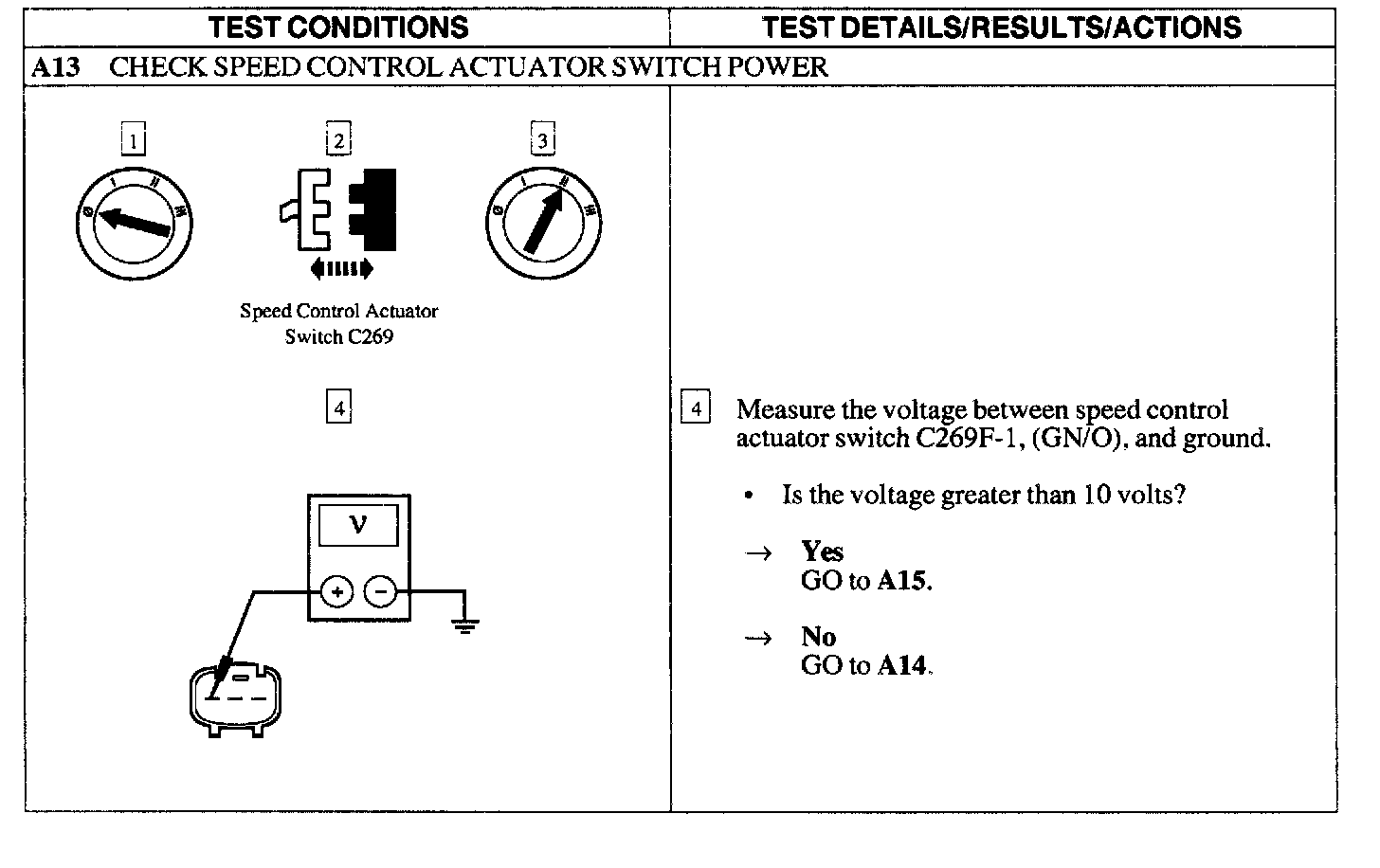

A13:

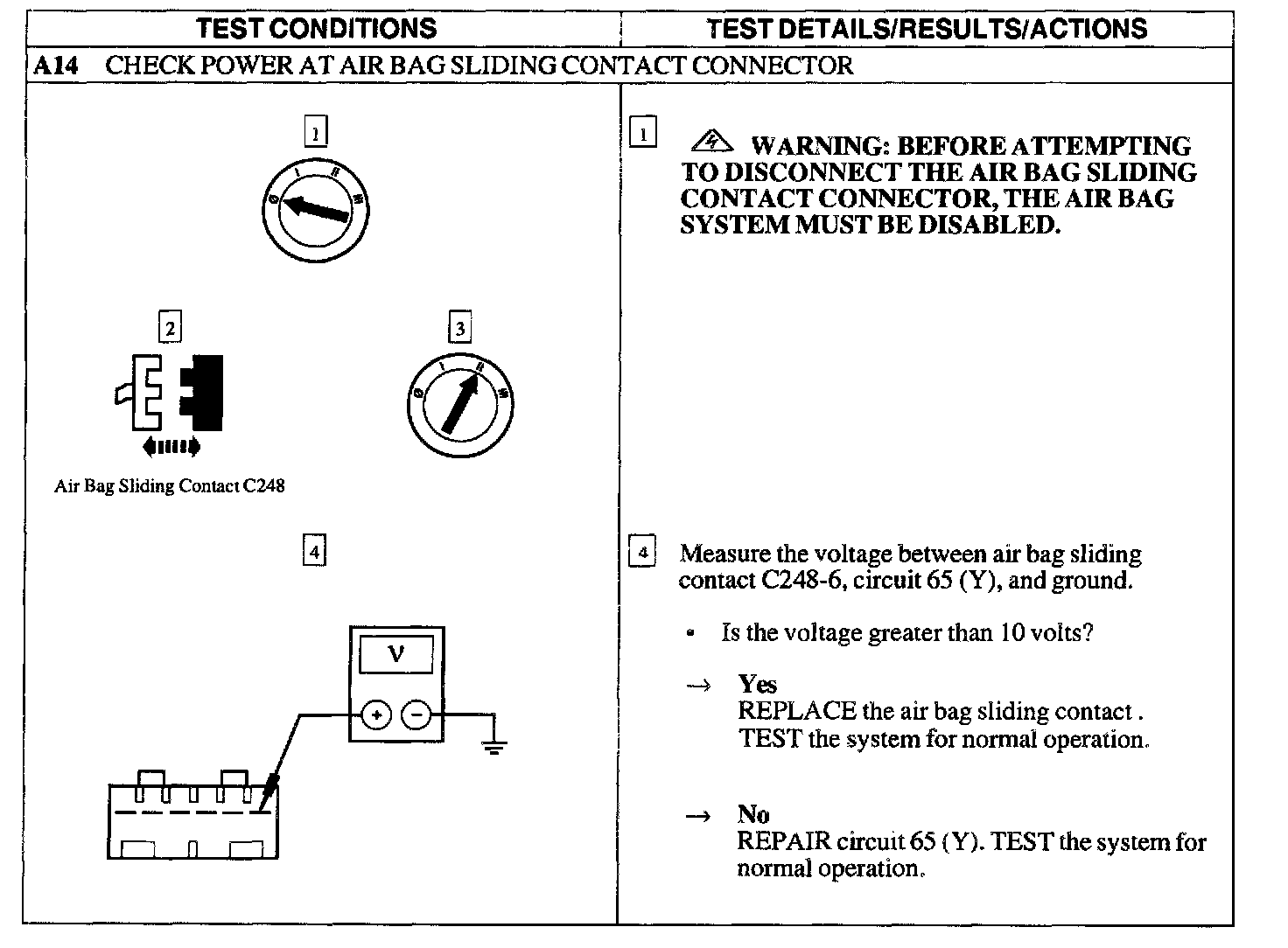

A14:






A15-A16:

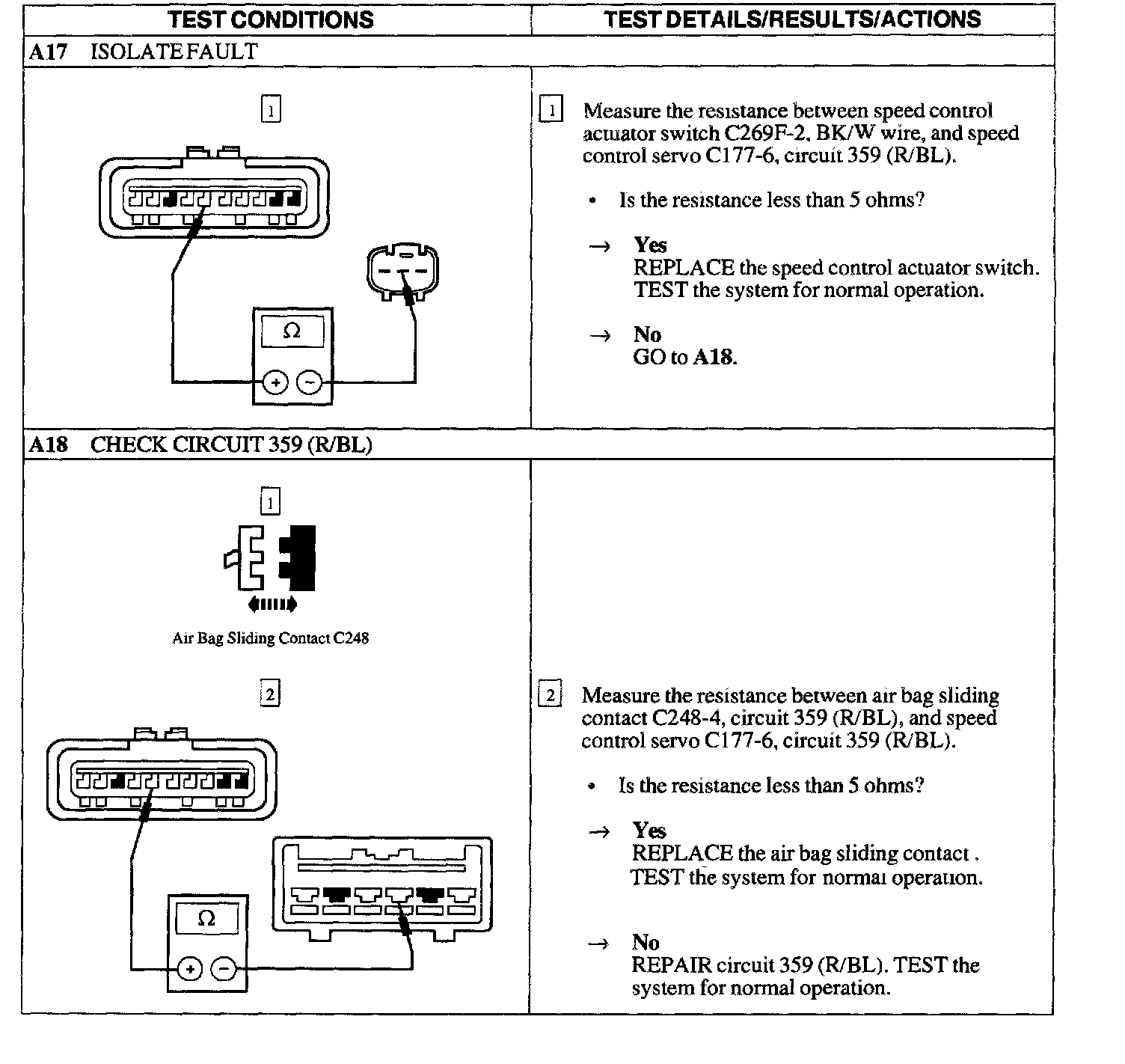

A17-A18:
