Pressure Transducer

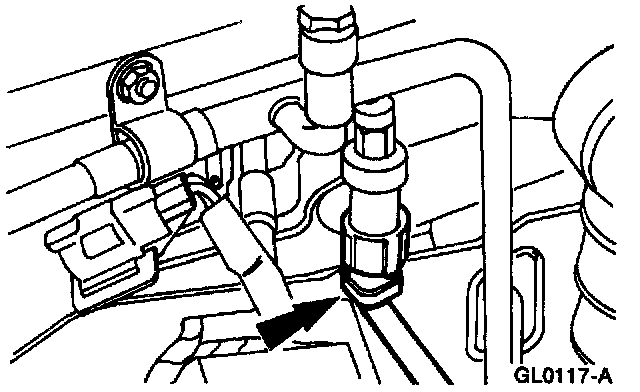

A/C PRESSURE TRANSDUCER

REMOVAL







1. Disconnect the A/C pressure transducer electrical connector.







2. Remove the A/C pressure transducer.

INSTALLATION







1. Follow the removal procedure in reverse order.
1 Lubricate the O-ring seal with Motorcraft YN-12b refrigerant oil F2AZ-19577-AB or equivalent meeting Ford specification WSH-M1C231-B.
