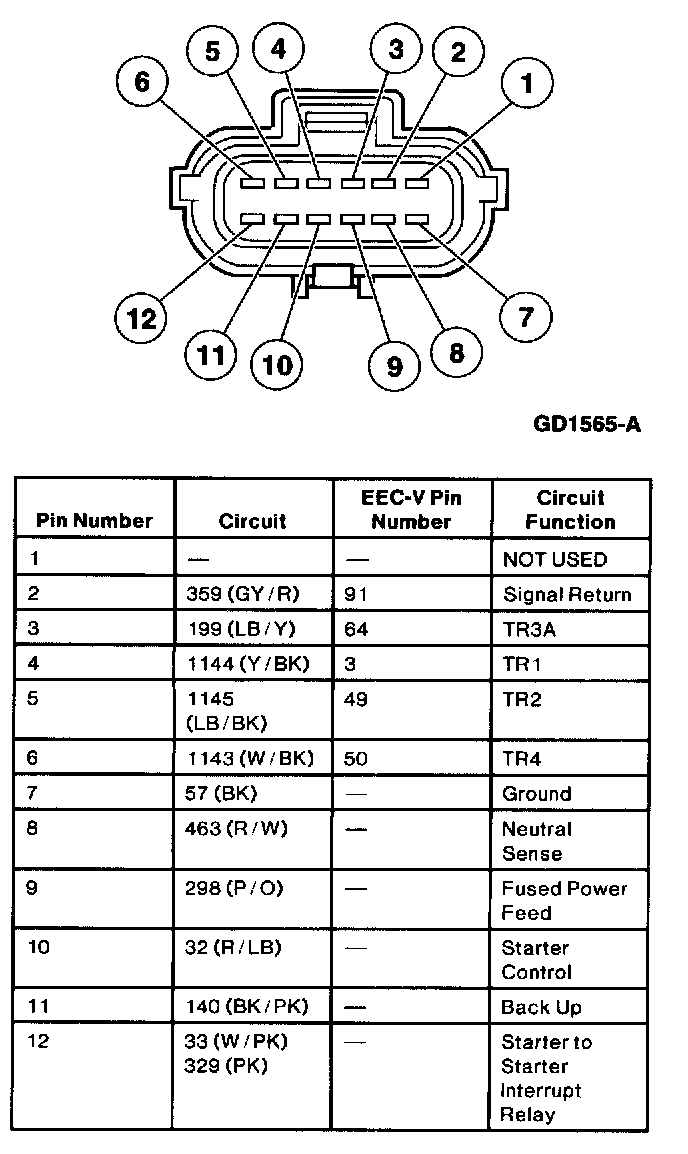

Digital Transmission Range (TR) Sensor Connector (C110)
Digital Transmission Range (TR) Sensor Connector (C110)
Digital Transmission Range (TR) Sensor Connector (C110):
