Home >> Ford >> 1998 >> Mustang V6-3.8L VIN 4 >> Repair and Diagnosis >> Wiper and Washer Systems >> Windshield Washer Switch >> Testing and Inspection >> Component Tests and General Diagnostics >> Multifunction Switch Continuity Test

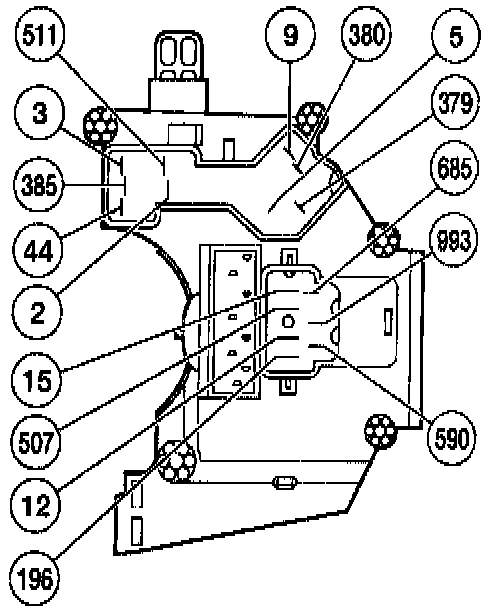

Multifunction Switch Continuity Test

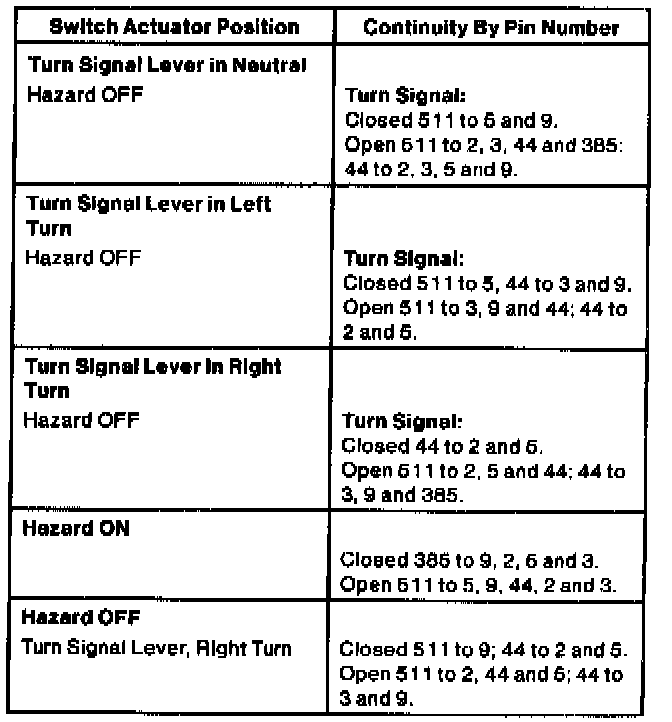

Part 1 Of 2:

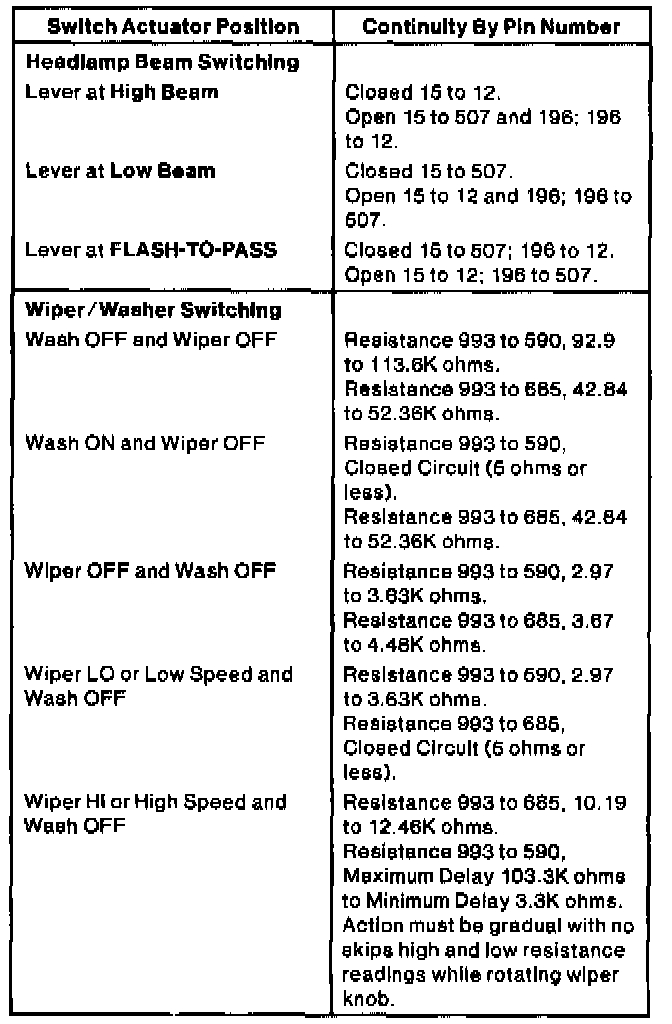

Part 2 Of 2:
