Pinpoint Test Schematics

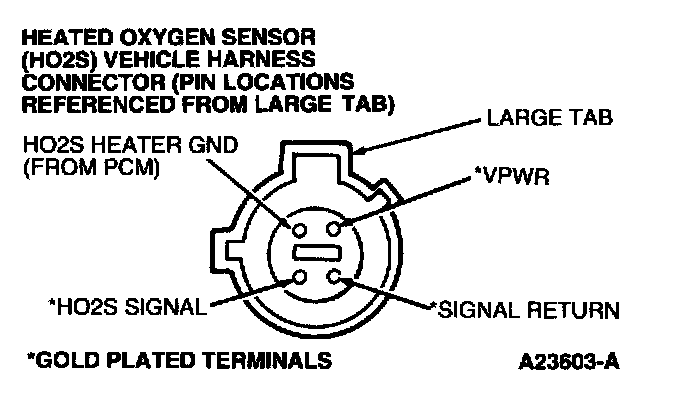

Oxygen Sensor Vehicle Harness Connector:

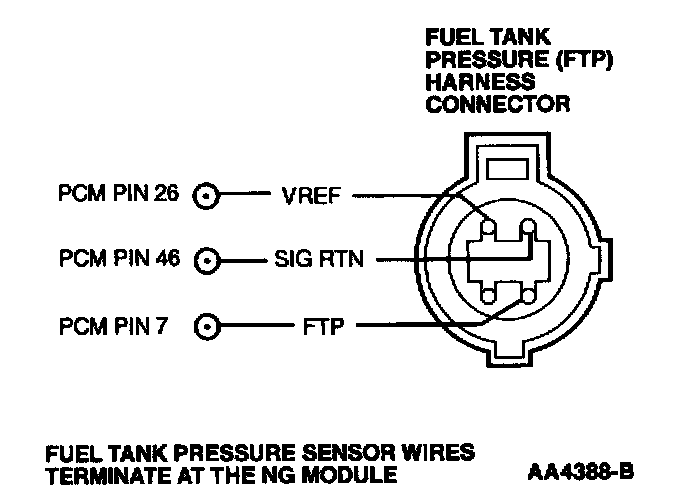

FTP Sensor Vehicle Harness Connector:

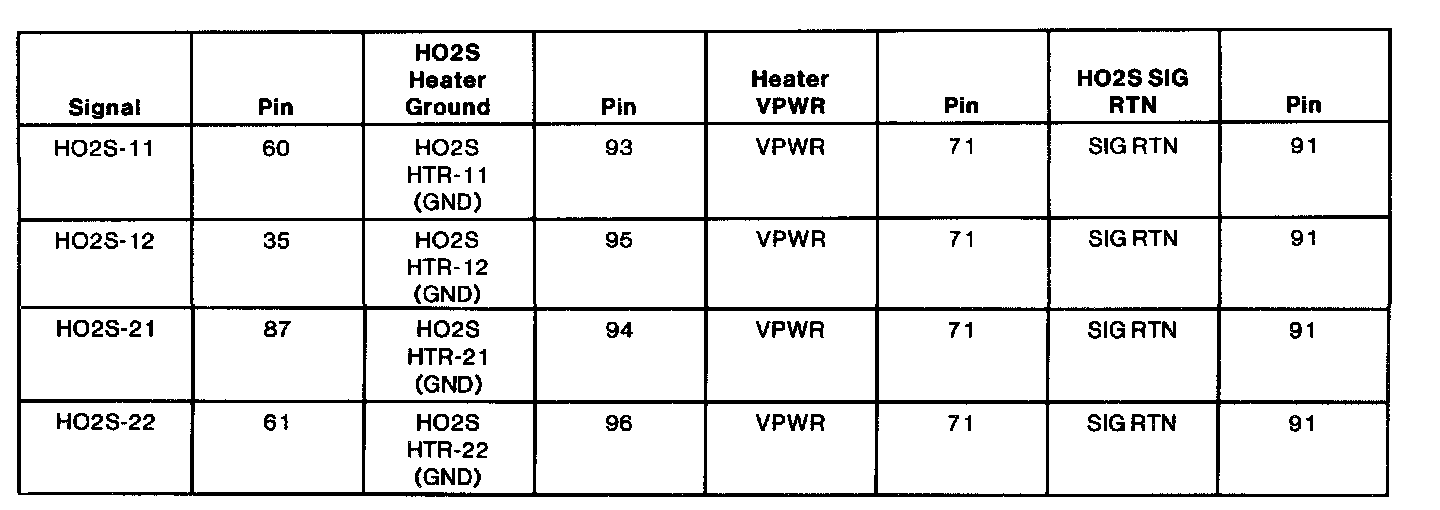

HO2S Connector Pin Assignments:

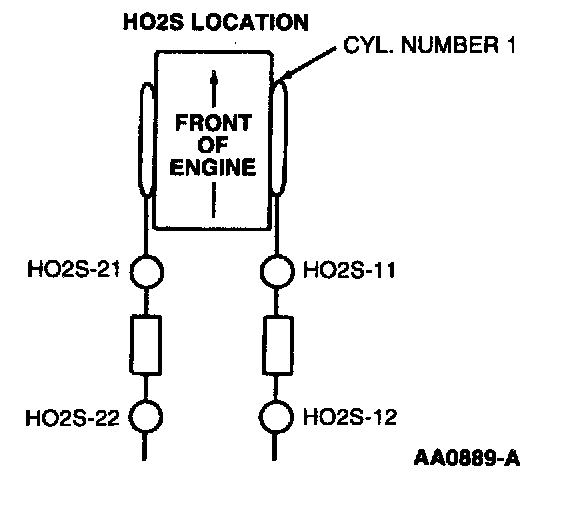

HO2S Locations:

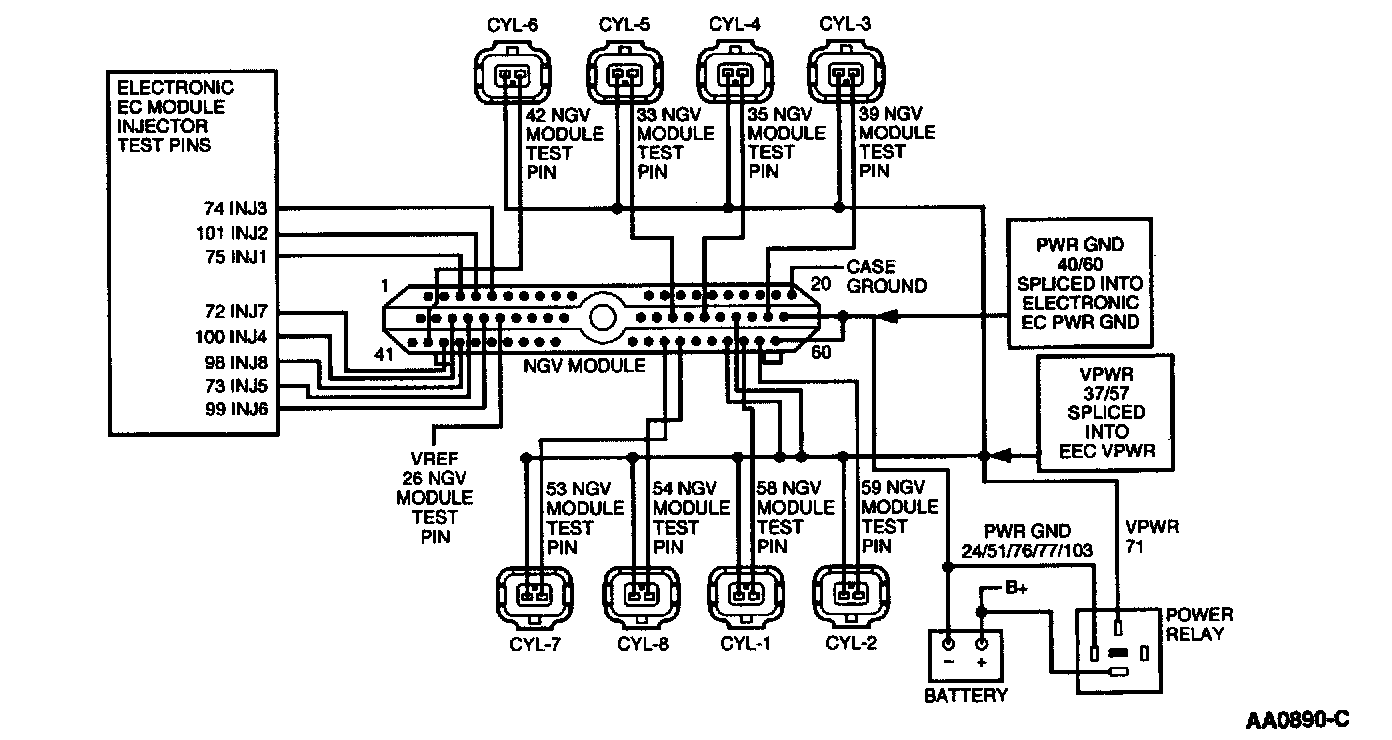

NGV Module Connector Pin Locations:
