Home >> Ford >> 1999 >> Crown Victoria V8-4.6L VIN W >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Trunk / Liftgate >> Without Keyless Entry

Without Keyless Entry

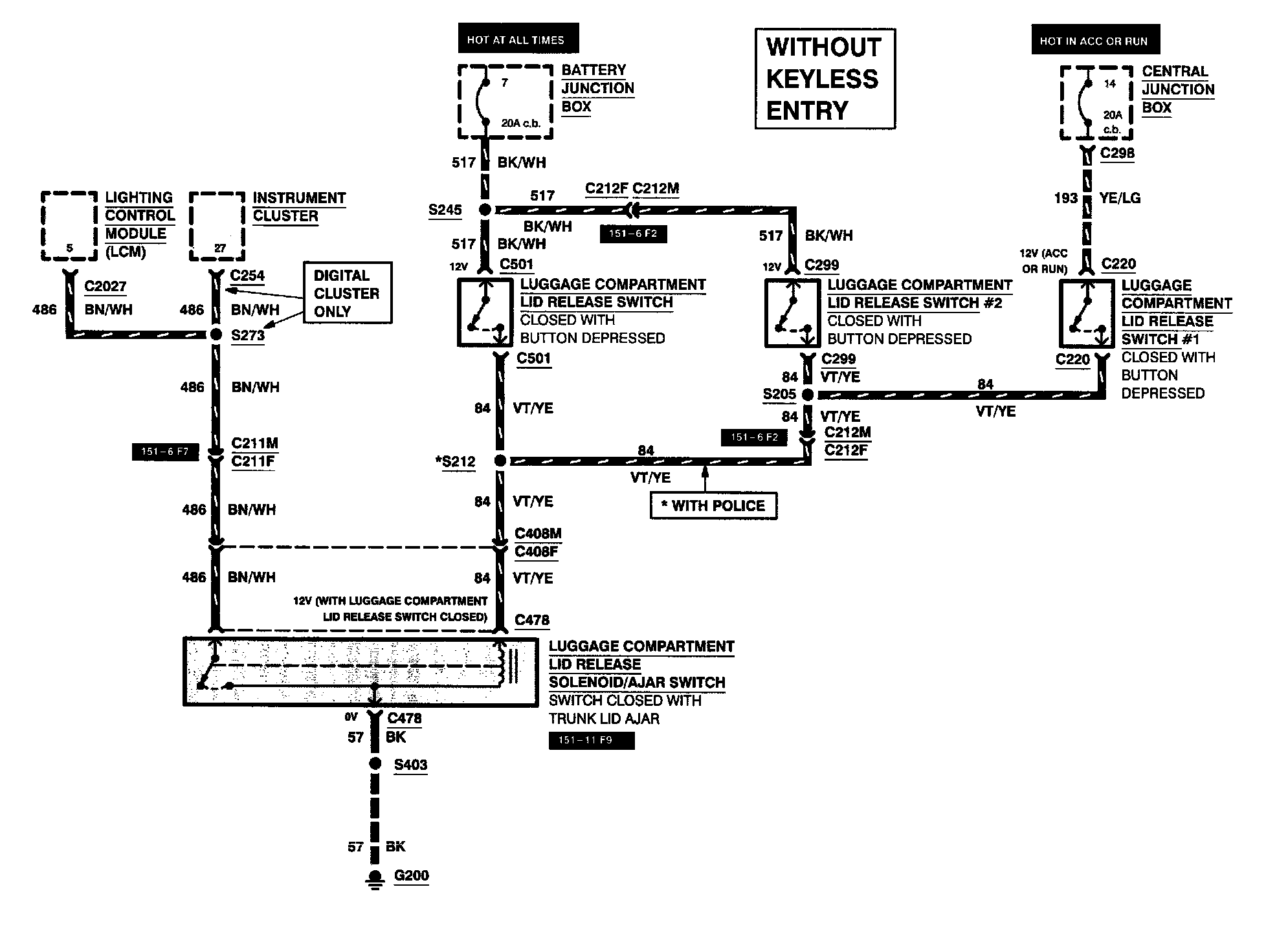

Diagram 113-1:
