Heater Hose: Service and Repair

REMOVAL
1. Remove the upper intake manifold.
2. Partially drain the cooling system.

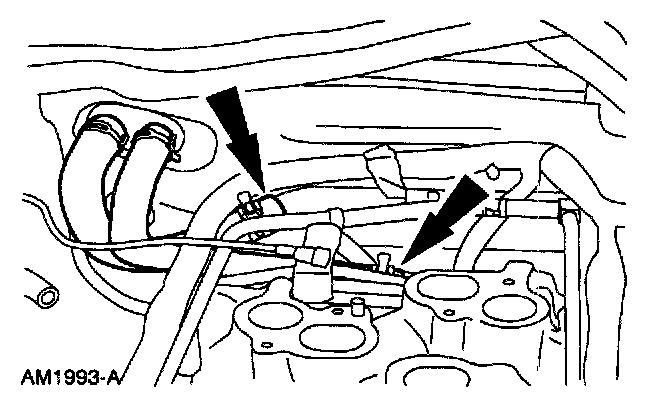

3.8l Shown.:

3. Remove the hose clamps at the engine.

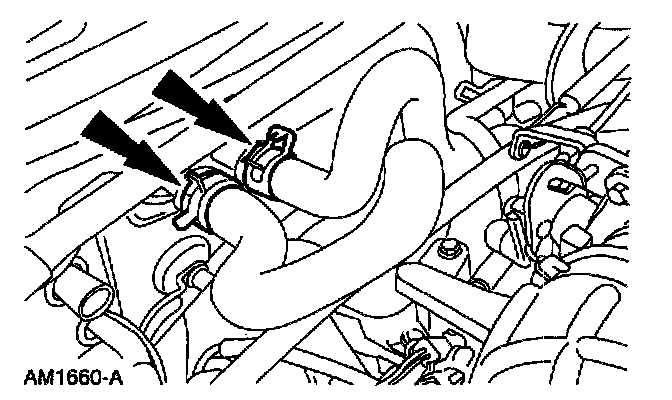

4. Remove the hose clamps and water hoses.

INSTALLATION
1. To install, reverse the removal procedure.
