Test A: No Communication With the Module - Lighting Control Module
Test A: No Communication With the Module - Lighting Control Module

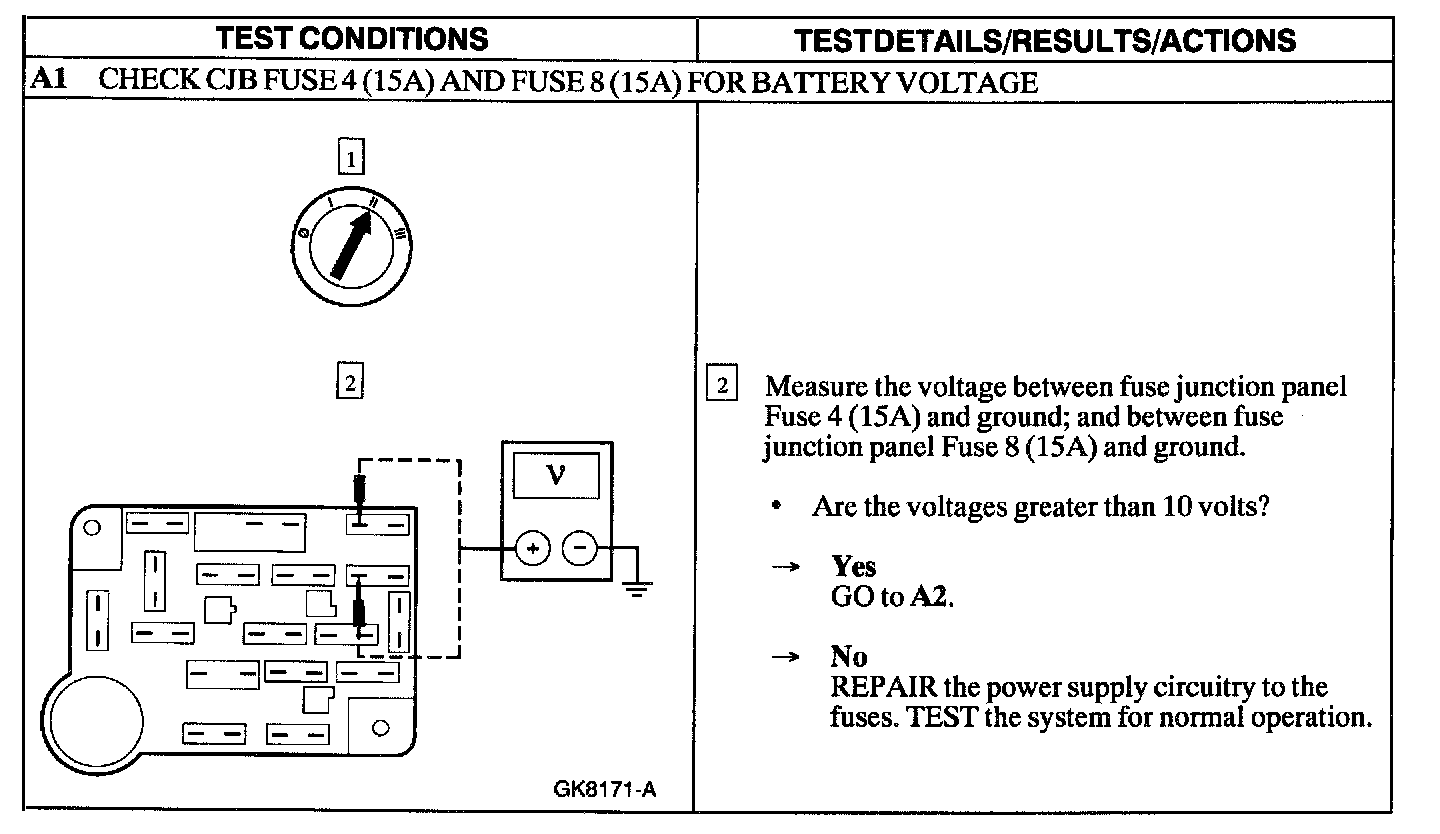

A1:

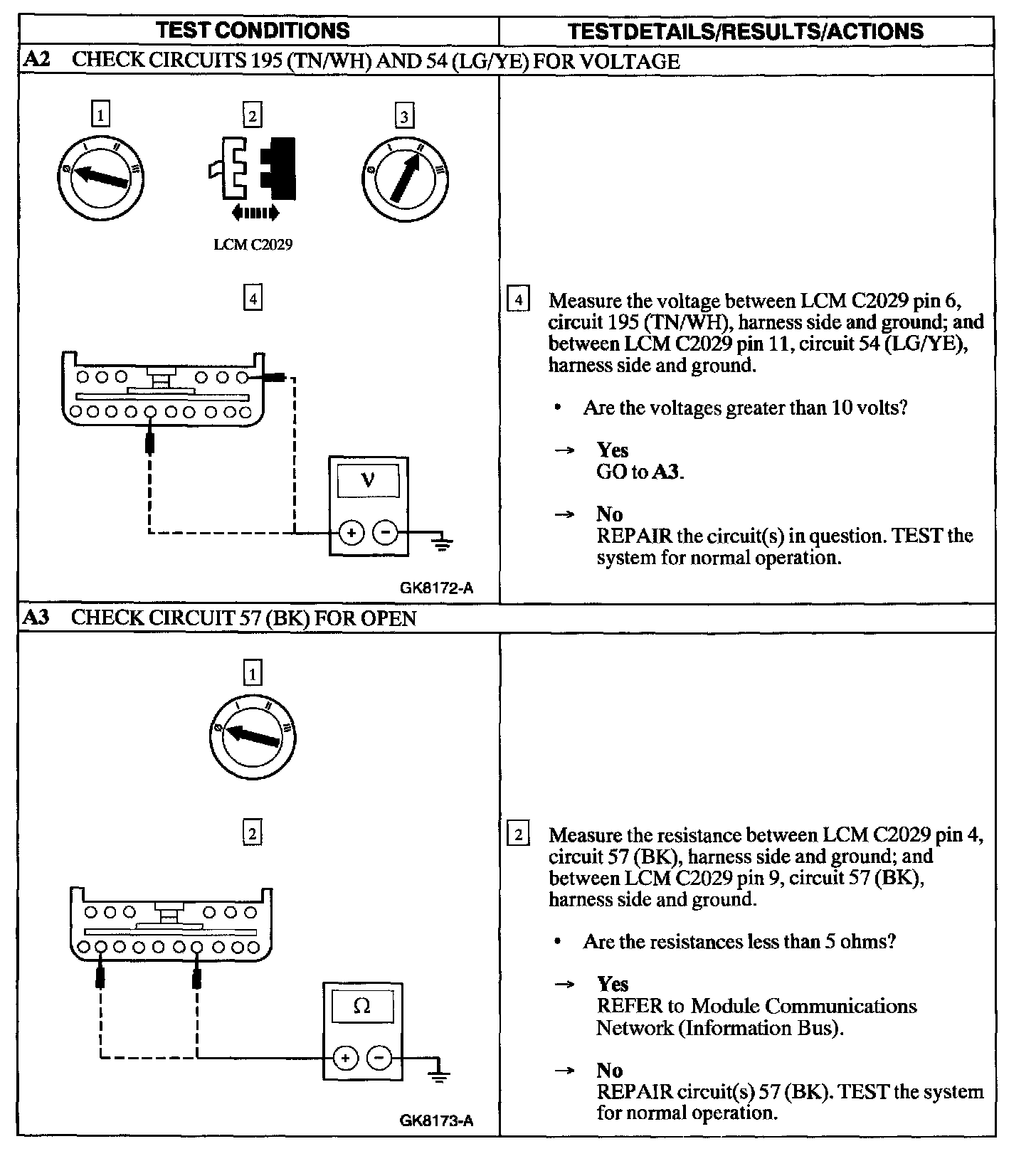

A2 - A3:
