Installation

Installation

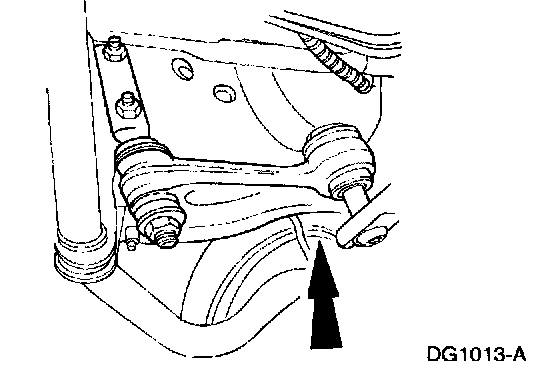

Note: Before installing the idler arm to the drag link, make sure the idler arm is in the straight ahead position (parallel to the vehicle's centerline).

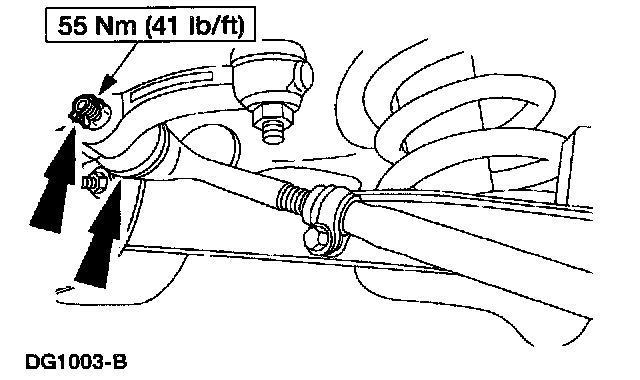

1. Install the steering sector shaft arm drag link onto the steering idler arm and bracket.





2. Install the washer, nut and a new cotter pin.

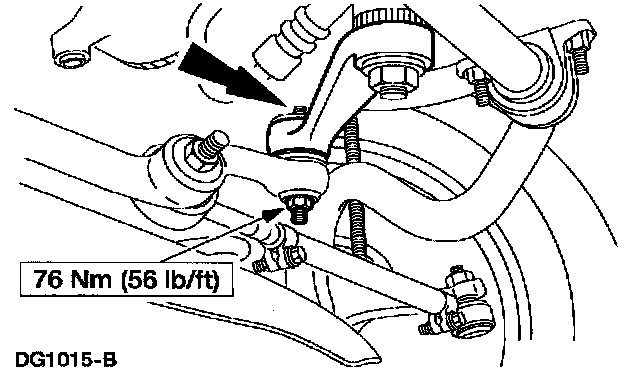

3. Install the steering i!ear sector shaft arm onto the steering sector shaft arm drag link. Install a new lock nut.

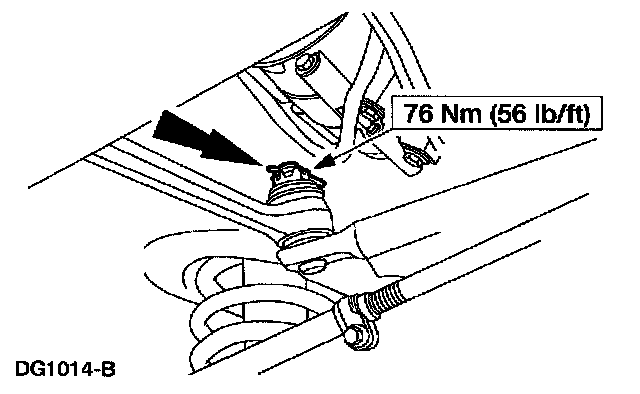

4. Note: Both the left side and the right side inner tie-rod ends are installed the same way. Only the left side is shown.

Install the tie-rod end, nut and a new cotter pin.
5. Lower the vehicle.
