Transmission Support Crossmember

Removal
1. Deactivate the air suspension
2. Disconnect the battery ground cable.
3. Raise the vehicle on a hoist.
4. Remove the exhaust system.
5. Support the transmission with a suitable jack.
6. Remove the transmission support crossmember.

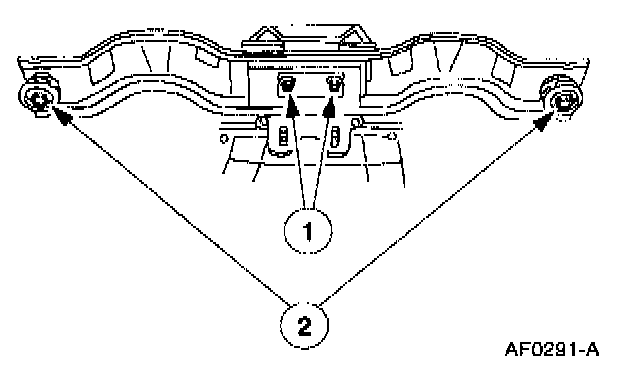

1 Remove the nuts retaining the transmission support insulator to the transmission support crossmember.
2 Remove the bolts retaining the transmission support crossmember to the body brackets. Remove the transmission support crossmember.

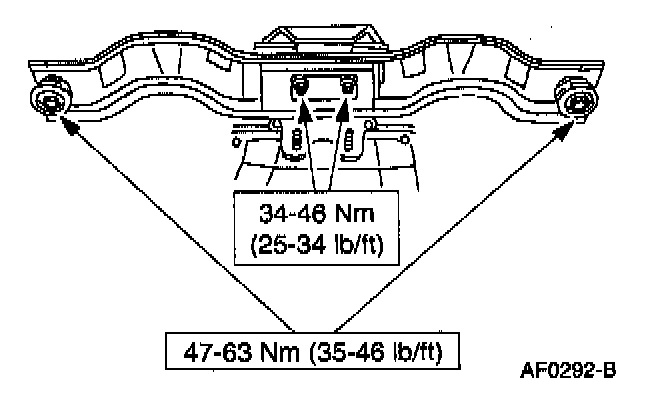

Installation





1. Follow the removal procedure in reverse order.
