Rear

REMOVAL

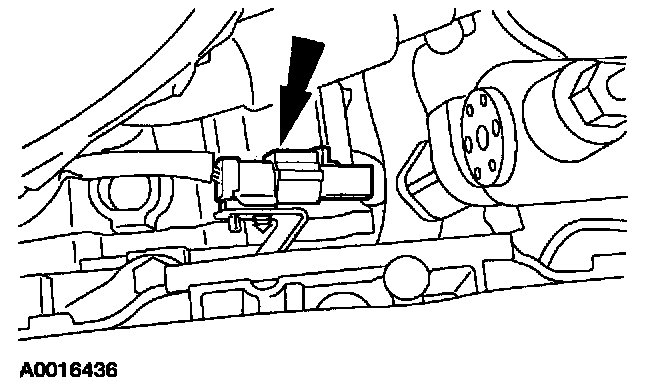

1. Disconnect the Heated Oxygen Sensor (HO2S) electrical connector.
2. Raise and support the vehicle. For additional information, refer to Maintenance/Service and Repair.







3. Remove the HO2S.

INSTALLATION
1. To install, reverse the removal procedure.
