Power Flow

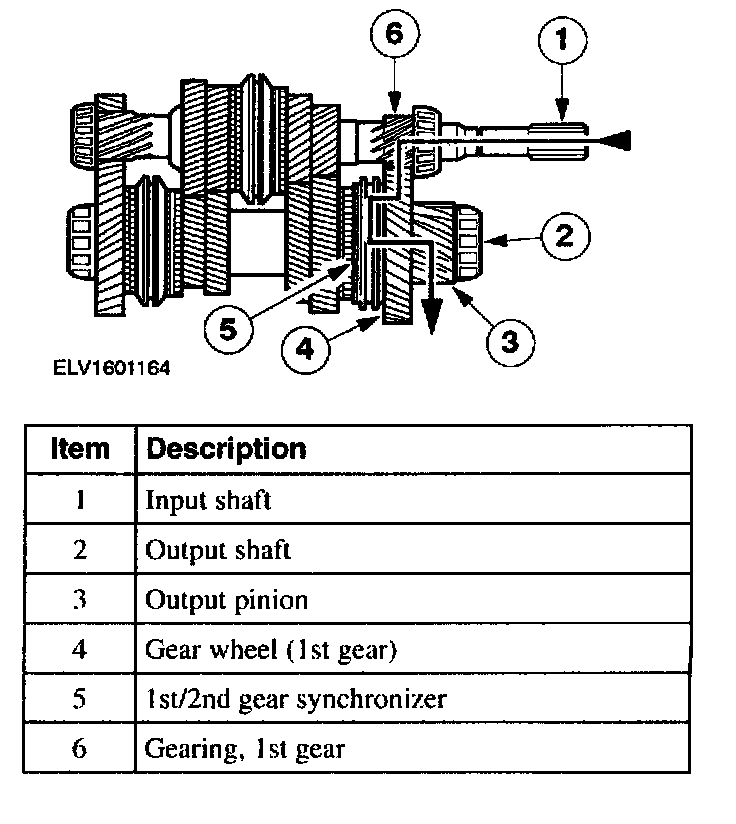

1st Gear

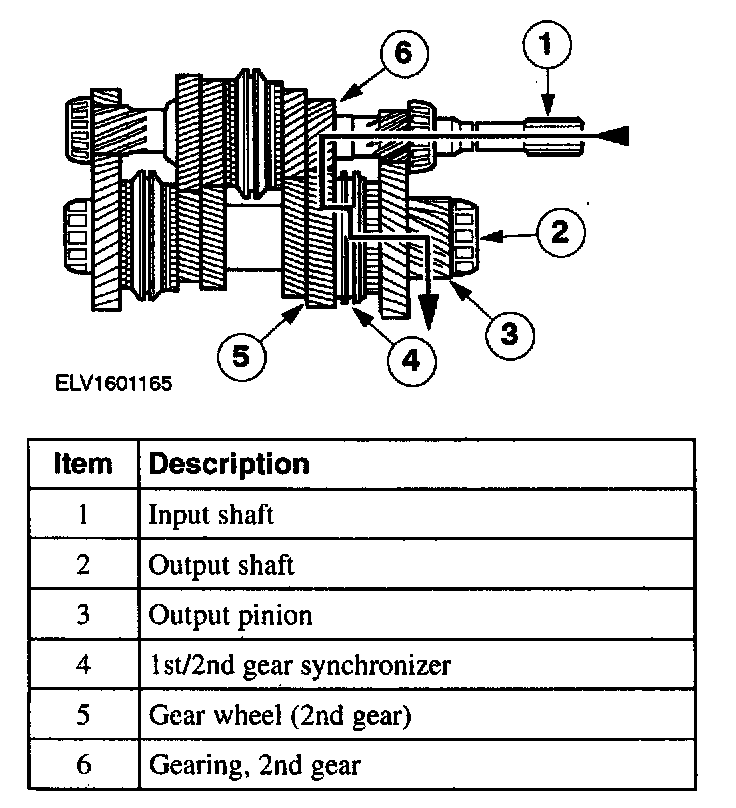

2nd Gear

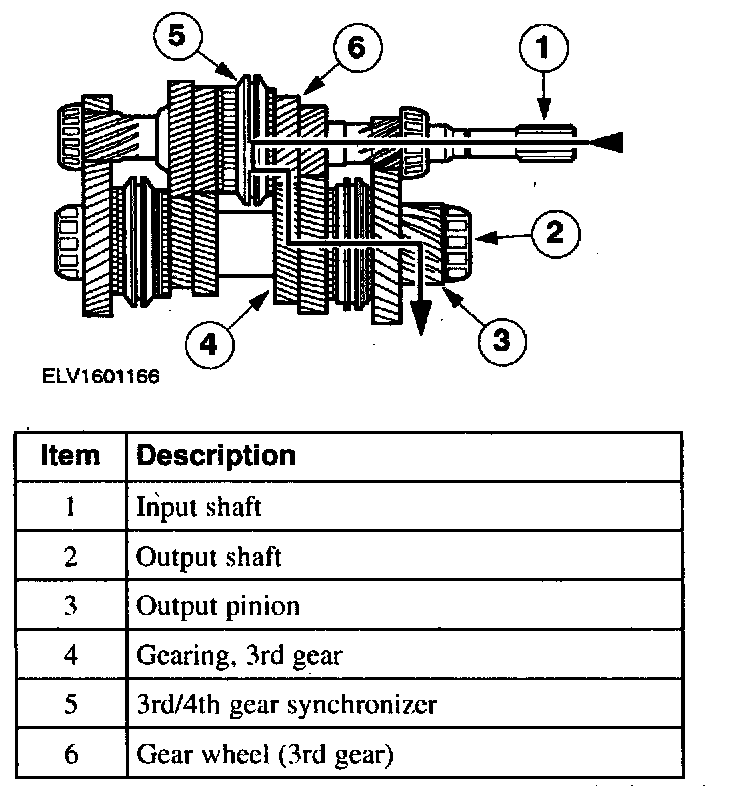

3rd Gear

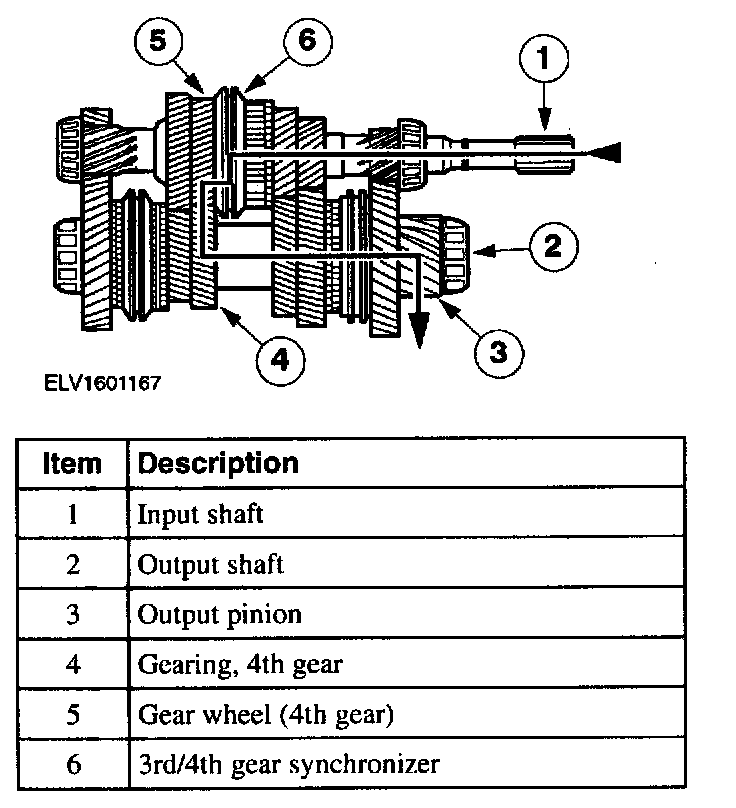

4th Gear

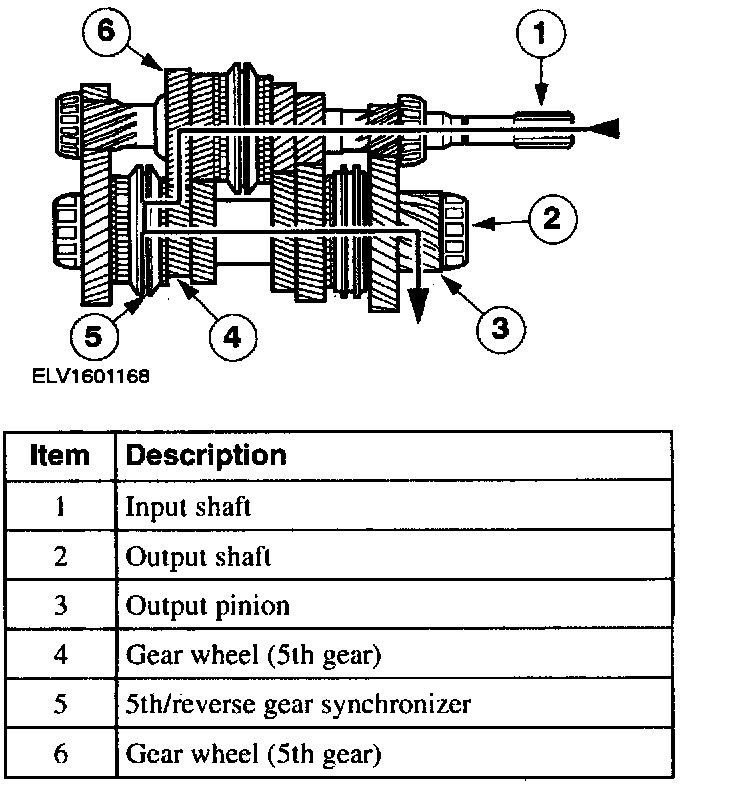

5th Gear





Reverse Gear

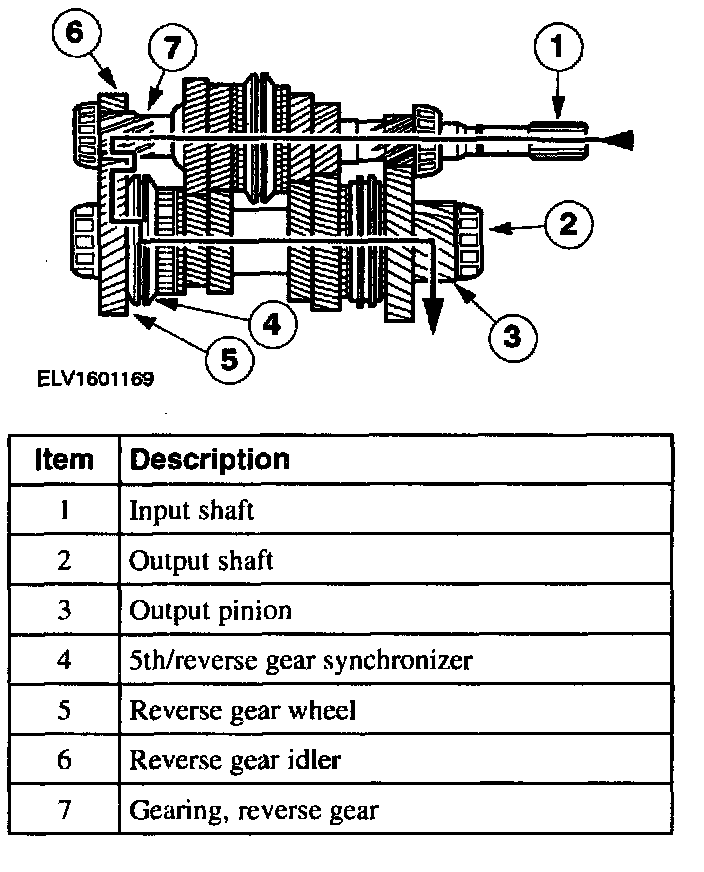

Reverse gear idler

The reverse gear idler is driven off the input shaft. Its function is to reverse the direction of rotation of the output shaft in reverse gear.

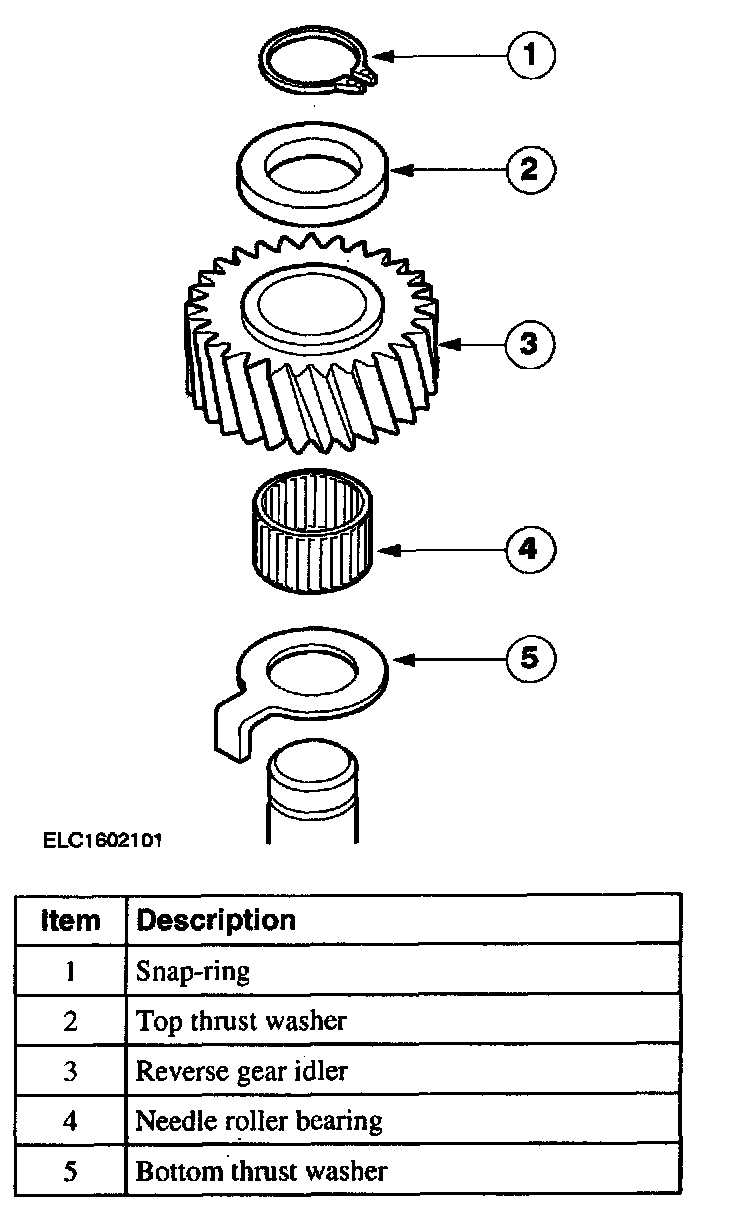

The reverse gear idler is located on the idler gear shaft together with a needle bearing.








Selector Interlock Mechanism

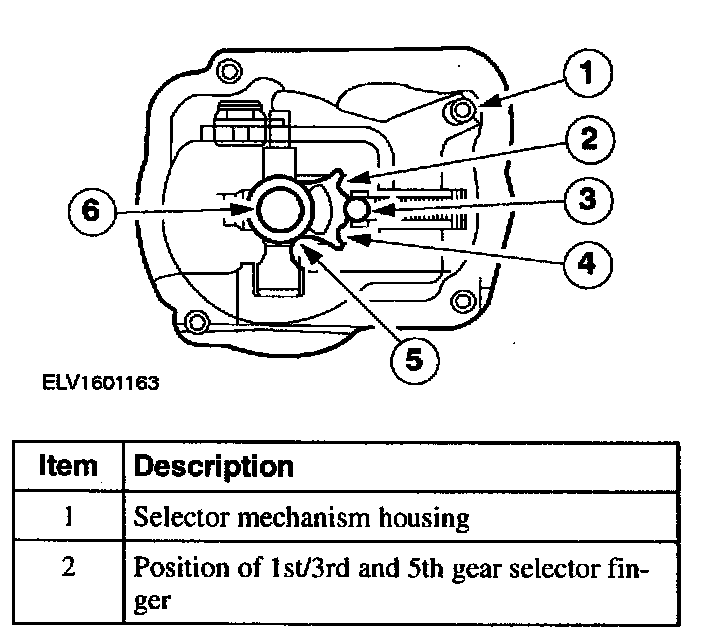

The selector interlock mechanism and the selector finger are mounted on a sleeve in the selector mechanism housing and keep the selected gear engaged with the aid of a spring-loaded ball until another gear is selected.

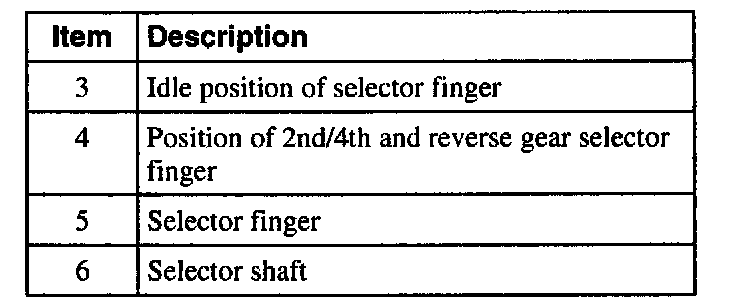

The selector interlock mechanism has three positions.
The reversing lamp switch is mounted on the side of the selector mechanism housing.
