Disassembly and Assembly

Disassembly

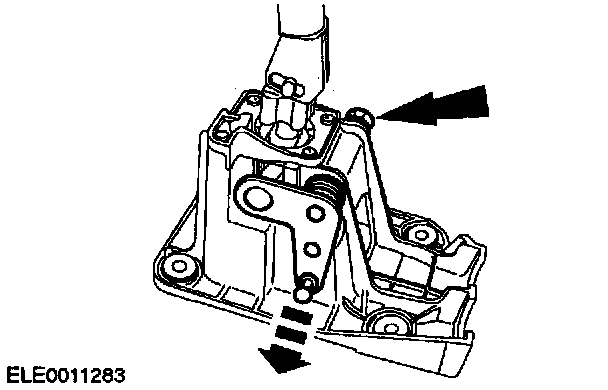

1. NOTE: Location of the spring.





Remove the bracket lever.
- Remove the Securing clip.

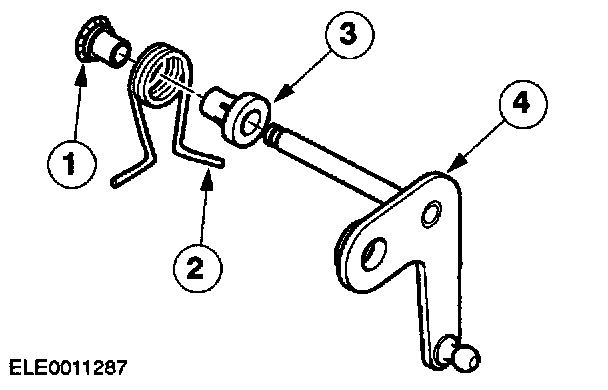

2. Disassemble the bracket lever.
1. Securing clip
2. Spring
3. Sleeve
4. Bracket lever

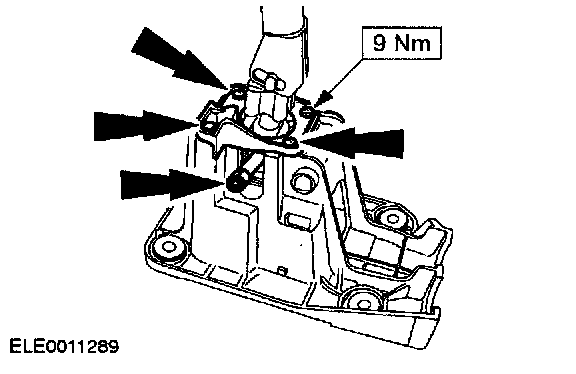

3. Remove the bearing housing and the bearing shell.

Assembly





1. Reassemble the parts in reverse order.
