4-Door

REMOVAL
1. Fold the rear seat backrest(s) forward.

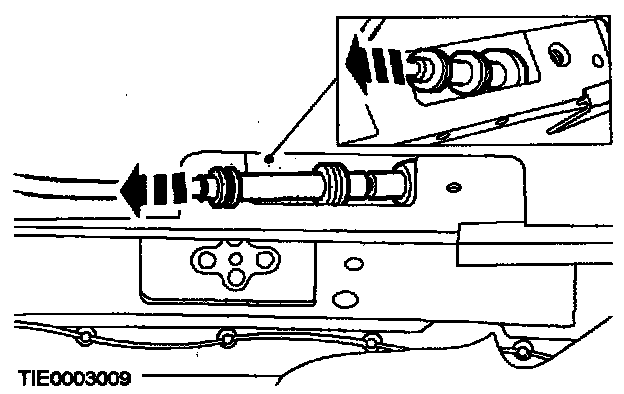

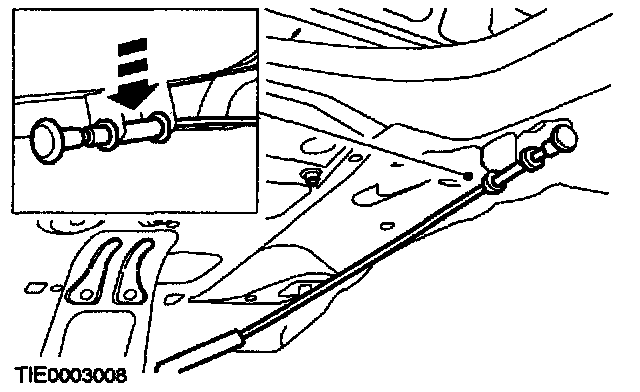

2. Detach the backrest release cable.

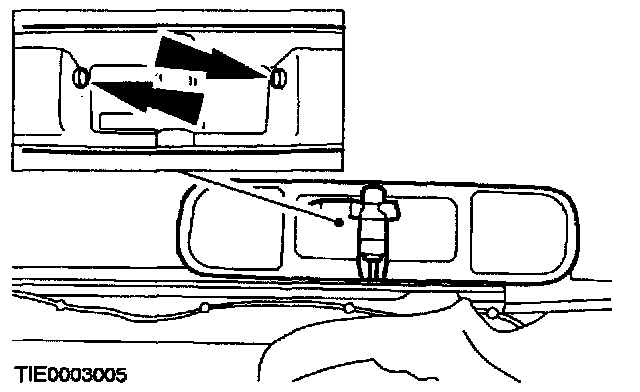

3. Remove the backrest latch cover.
^ Release the two retaining tangs.

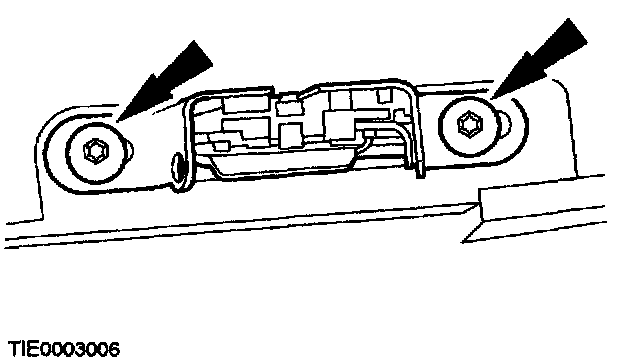

4. Remove the backrest latch screws.







5. Remove the backrest release latch.

NOTE: Note the routing of the backrest release cable when removing it to aid installation.


INSTALLATION







1. To install, reverse the removal procedure.
