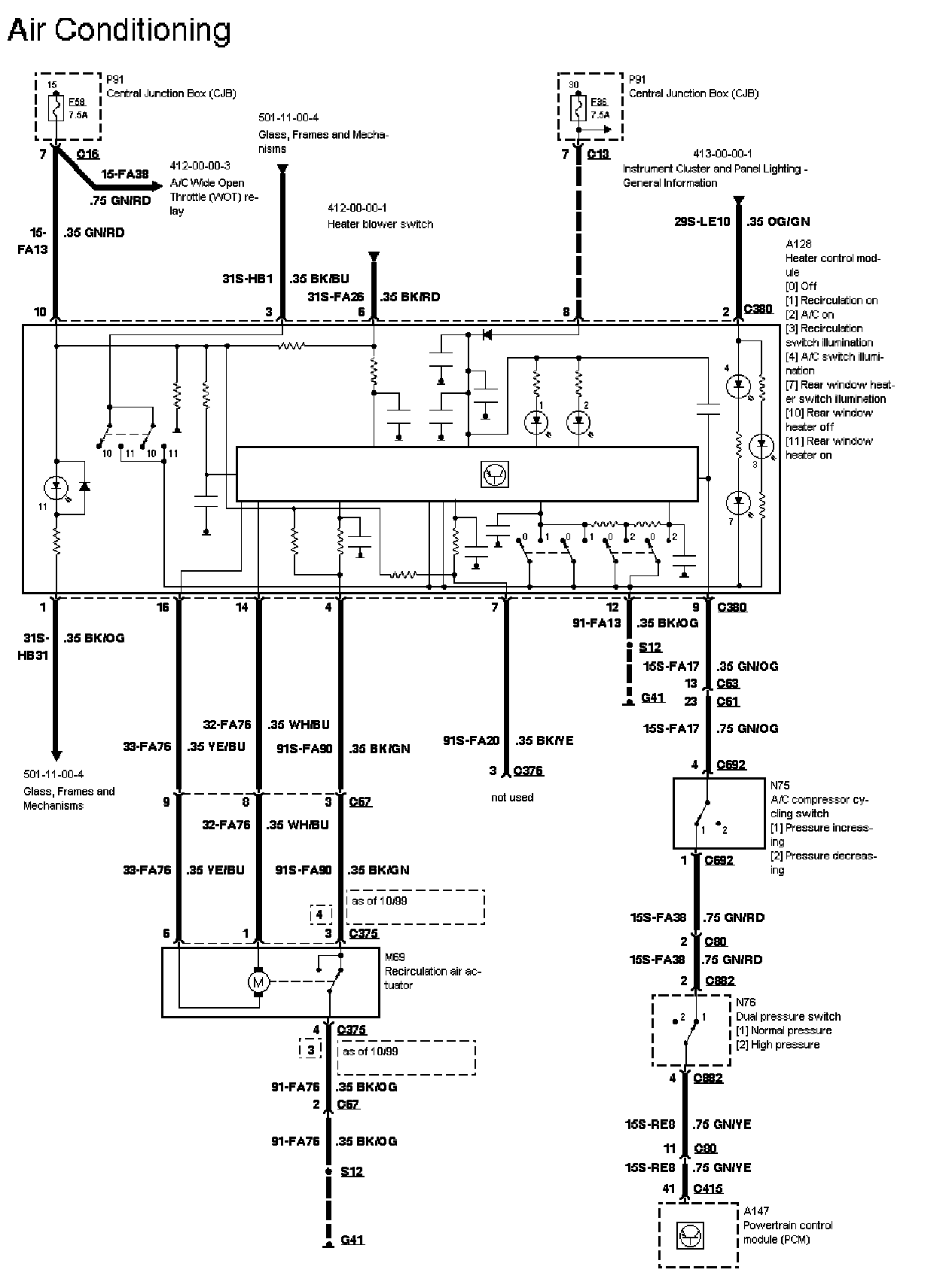

Air Conditioning






DETAILED DIAGRAMS





















RELATED DIAGRAMS


Diagram 501-11-00-4:






Diagram 413-00-00-1:
