Drivetrain - Intermediate Axle Shaft Bearing Replacement

Article No.
03-15-11

08/04/03

TRANSAXLE - INTERMEDIATE AXLE SHAFT
BEARING REPLACEMENT

FORD:
2000-2003 FOCUS

ISSUE
The Right Axle Intermediate Shaft Bearing has been released for service separate from the Intermediate Shaft Assembly. The following service procedure has been developed to aid in replacing this bearing.

ACTION
If the Intermediate Shaft Bearing needs to be replaced, follow the Service Procedure below.

SERVICE PROCEDURE

1. Remove the Right Intermediate Shaft Assembly using the removal procedure in the Workshop Manual (Section 205-04, Removal and Installation, Intermediate Shaft).

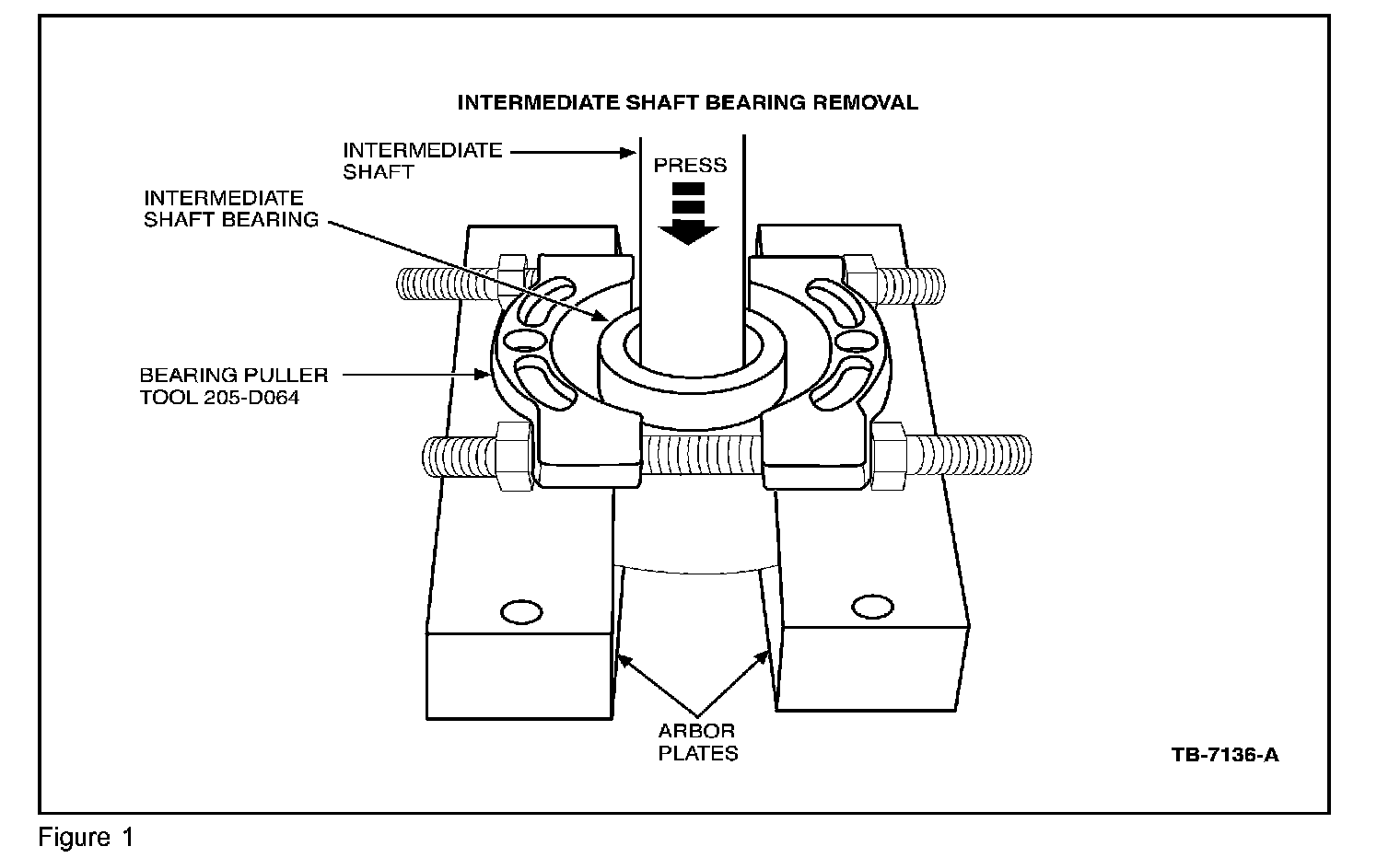

2. Using a press, suitable arbor plates, and Bearing Puller Tool 205-D064 (D84L-1123-A), press the old bearing off of the Intermediate shaft (Figure 1).

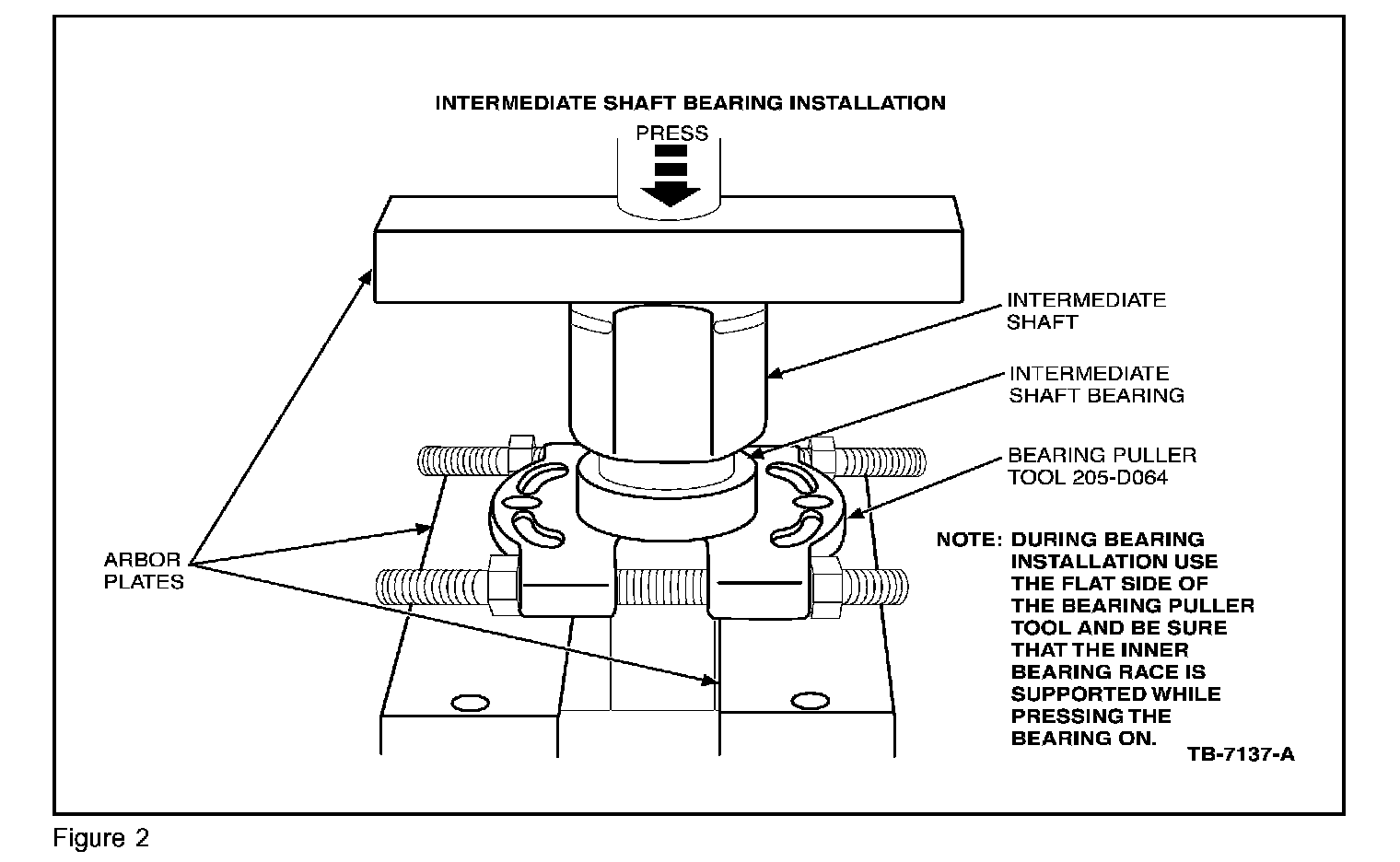

3. Using a press, suitable arbor plates, and Bearing Puller Tool 205-D064 (D84L-1123-A), press the new bearing onto the Intermediate Shaft (Figure 2).

NOTE
DURING BEARING INSTALLATION USE THE FLAT SIDE OF THE BEARING PULLER TOOL, AND BE SURE THAT THE INNER BEARING RACE IS SUPPORTED WHILE PRESSING THE BEARING ON.

4. Reinstall the Intermediate Shaft, using the installation procedure in the Workshop Manual (Section 205-04, Removal and Installation, Intermediate Shaft).

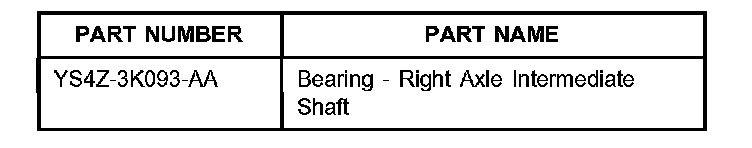

Parts Block

OTHER APPLICABLE ARTICLES: NONE

WARRANTY STATUS: Eligible Under The Provisions Of Bumper To Bumper Warranty Coverage

OPERATION DESCRIPTION TIME

031511A Replace Intermediate Axle 1.2 Hrs.
Shaft Bearing (Includes
Time To Remove And
Install Halfshaft)

DEALER CODING
CONDITION
BASIC PART NO. CODE
3K093 30
