Electronic Brake Control Module
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

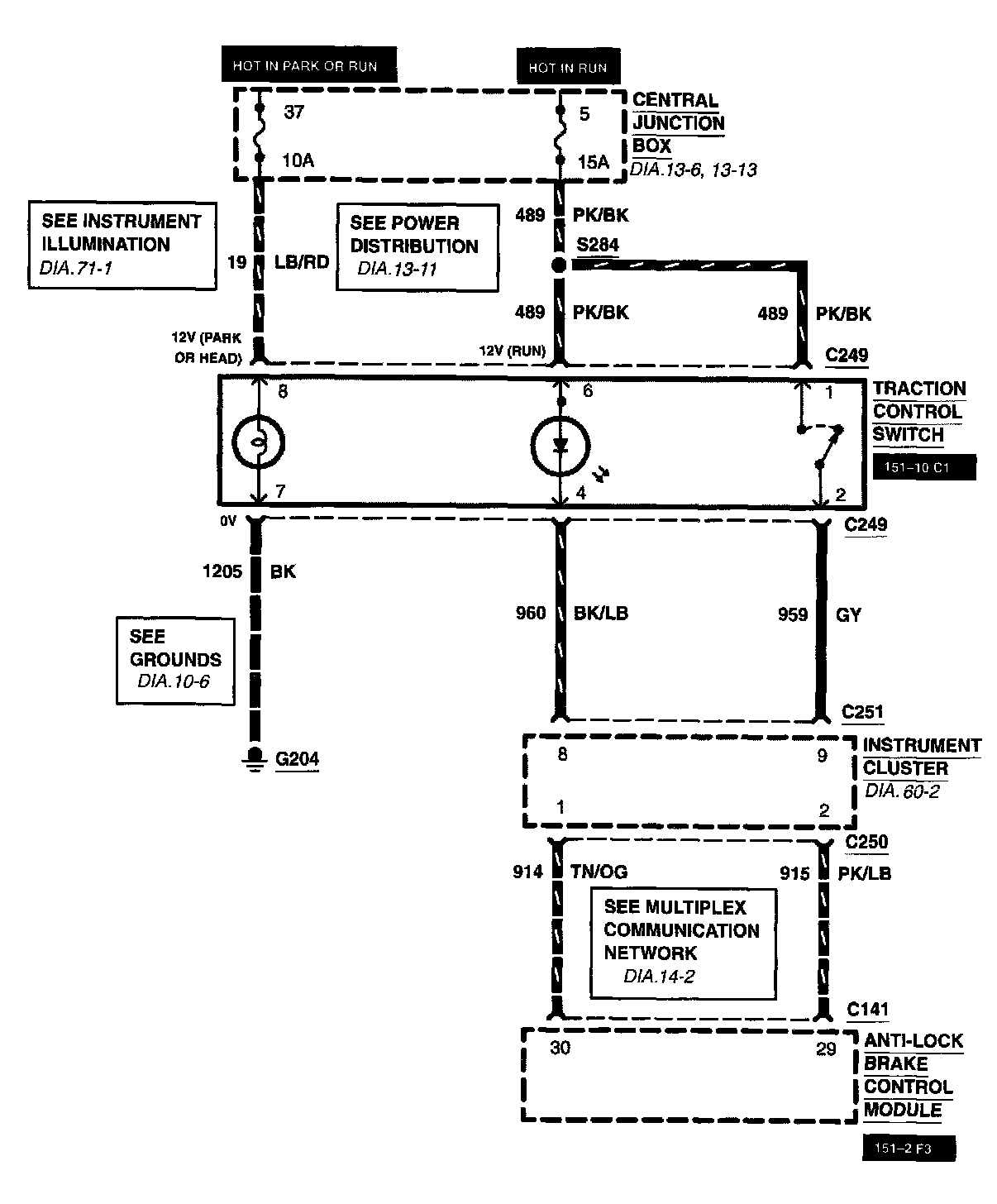

Diagram 42-3:
