Power Mirror Motor: Service and Repair

REMOVAL
1. Remove the exterior rear view mirror glass.

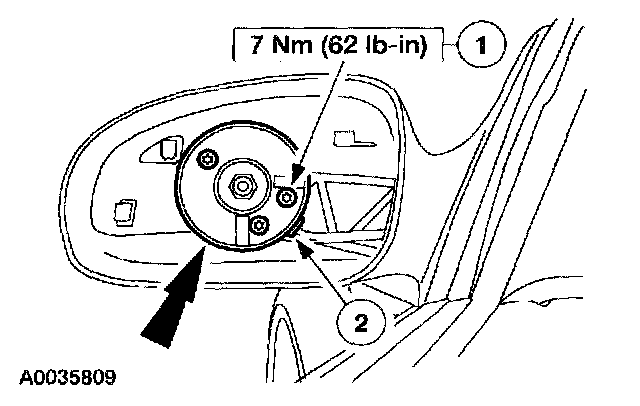

2. Remove the exterior rear view mirror motor.
1 Remove the screws.
2 Disconnect the electrical connector.

INSTALLATION
1. To install, reverse the removal procedure.

NOTE: When installing the mirror glass, make sure the motor gasket is in position between the mirror glass and the mirror motor, and that the mirror glass snaps completely onto the mirror motor.
