Disassembly and Assembly

DISASSEMBLY







1. Remove the LH and RH panel registers.
- Depress the inboard side tab with a flat blade tool. Pull the register rearward, depress the outboard tab and remove the register.

NOTE: RH register shown LH similar.

2. Remove the plenum chamber.

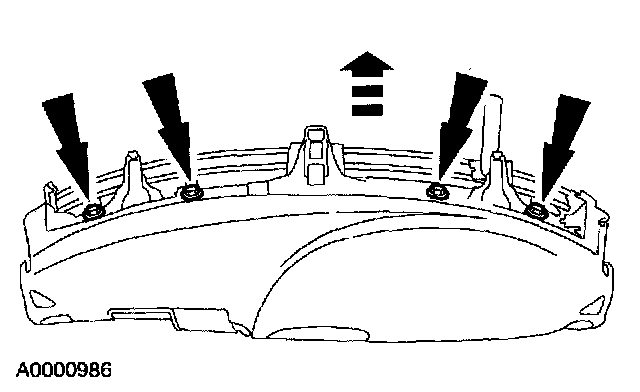

3. Remove the screws and remove the defroster duct.

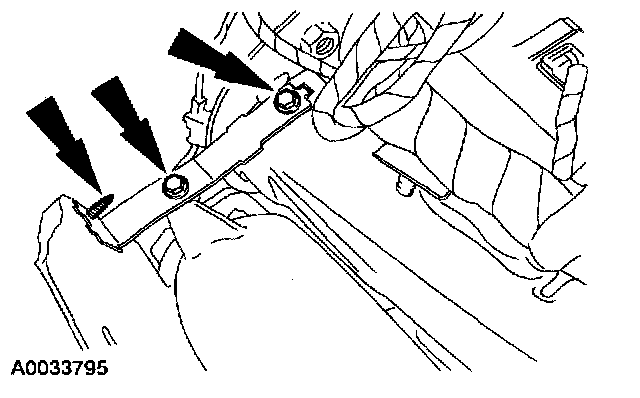

4. Remove the screws and remove the driver side support brace.







5. Remove the screw and position the driver side panel duct away from the driver side demister duct screw.

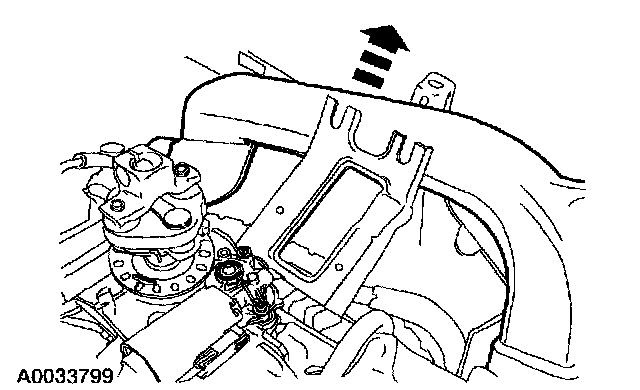

6. Remove the driver side demister duct screw and remove the driver side demister duct.

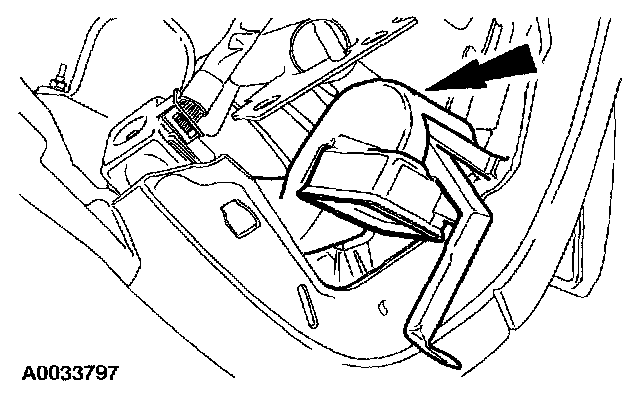

7. Remove the passenger side demister duct screw and remove the passenger side demister duct.

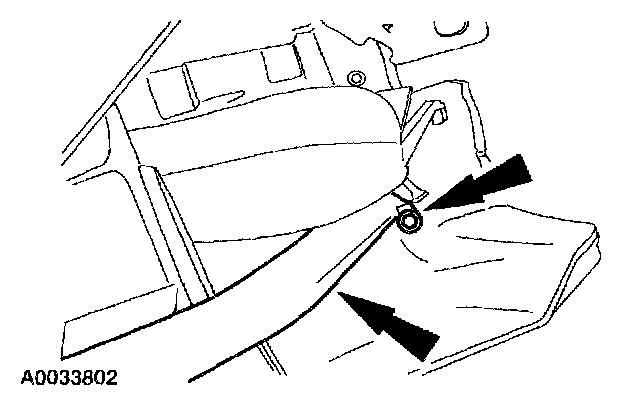

8. Remove the passenger side panel duct inner screw.

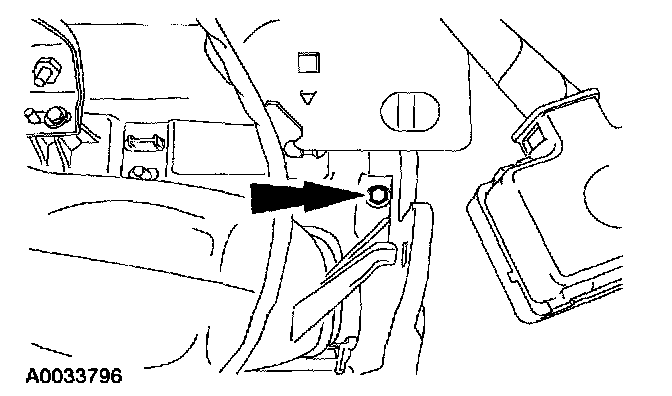

9. Remove the passenger side panel duct outer screw.

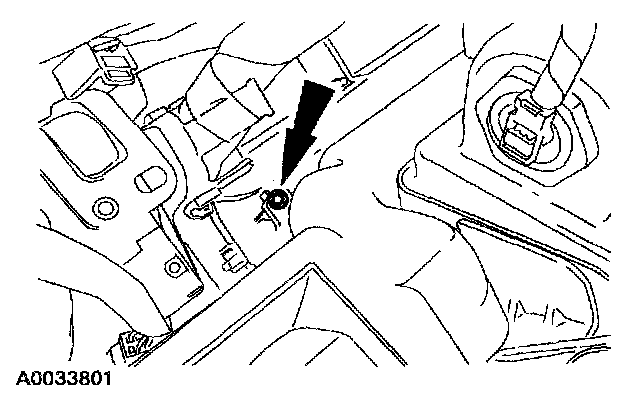

10. Remove the screws and remove the center panel duct.







11. Remove the driver side panel duct.







12. Rotate and pull the panel duct through the opening in the side of the instrument panel.

ASSEMBLY
1. To assemble, reverse the disassembly procedure.
