Windshield Moulding / Trim: Service and Repair

WINDOW MOULDING

Removal and Installation

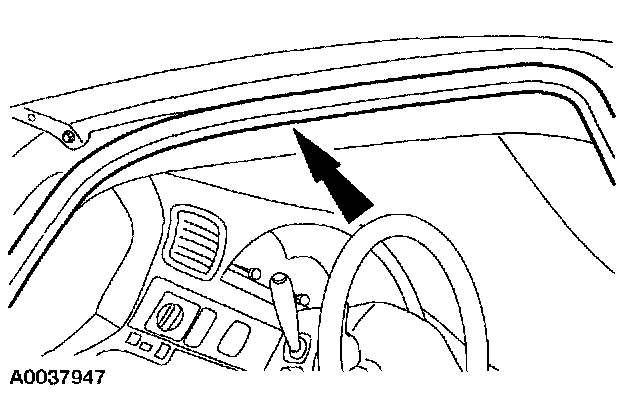

1. Position the LH and the RH weatherstrip aside.







2. Remove the LH and RH windshield side garnish mouldings.

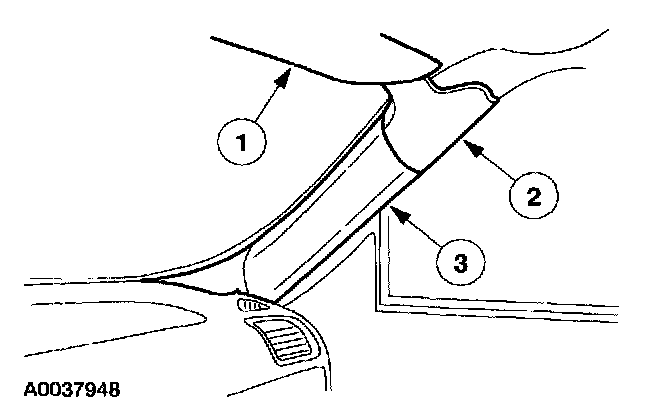

1 Remove the header panel.
2 Position the upper windshield side garnish moulding aside.
3 Remove the windshield side garnish mouldings.

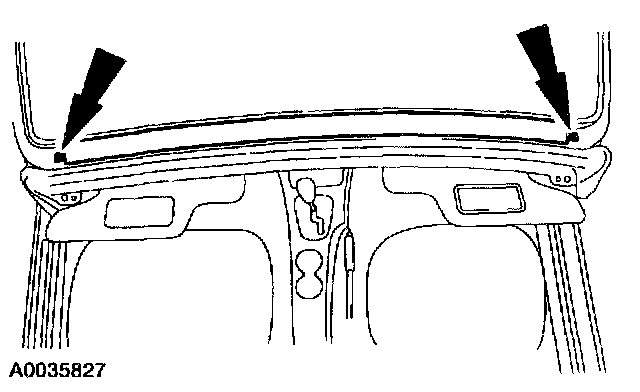

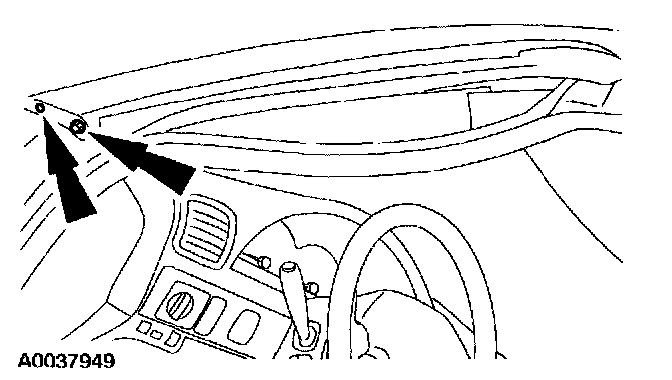

3. Remove the windshield moulding screw and the pin-type retainer.

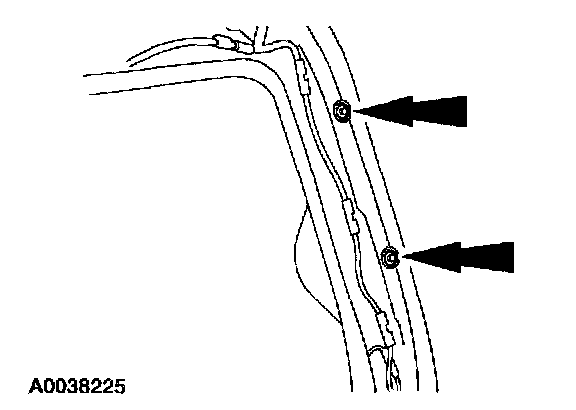

4. Remove the LH and the RH windshield moulding nuts.

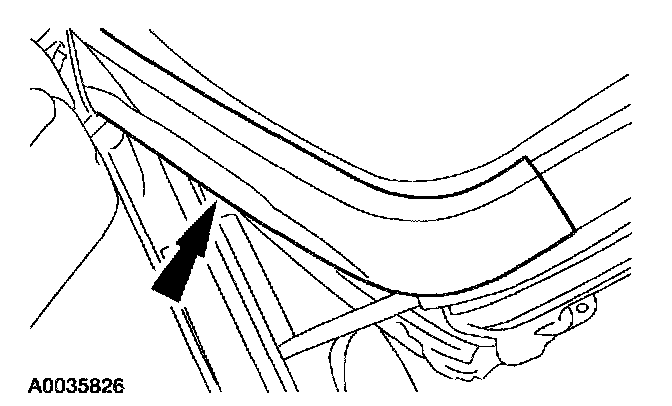

5. Remove the LH and RH windshield mouldings.
- Release the bottom retainer.

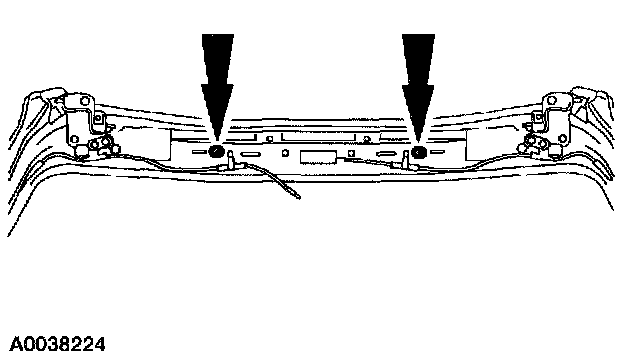

6. Remove the windshield center moulding nuts.







7. Remove the screws and the windshield center moulding.
- Release the center retainer.

8. To install, reverse the removal procedure.
