Drive Belt: Service and Repair

Accessory Drive Belt

Removal and Installation
1. Raise and support the vehicle.

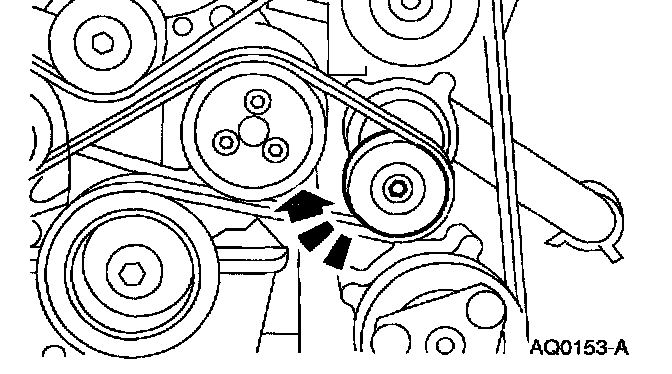

2. Rotate the drive belt tensioner clockwise and remove the drive belt.

3. NOTE: Refer to the Component Locations illustration for the drive belt routing.

To install, reverse the removal procedure.
