Home >> Ford >> 2003 >> Focus L4-2.0L DOHC VIN 5 >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Pinpoint Tests >> C

C

PINPOINT TEST C: DTC B1676 - BATTERY VOLTAGE OUT OF RANGE

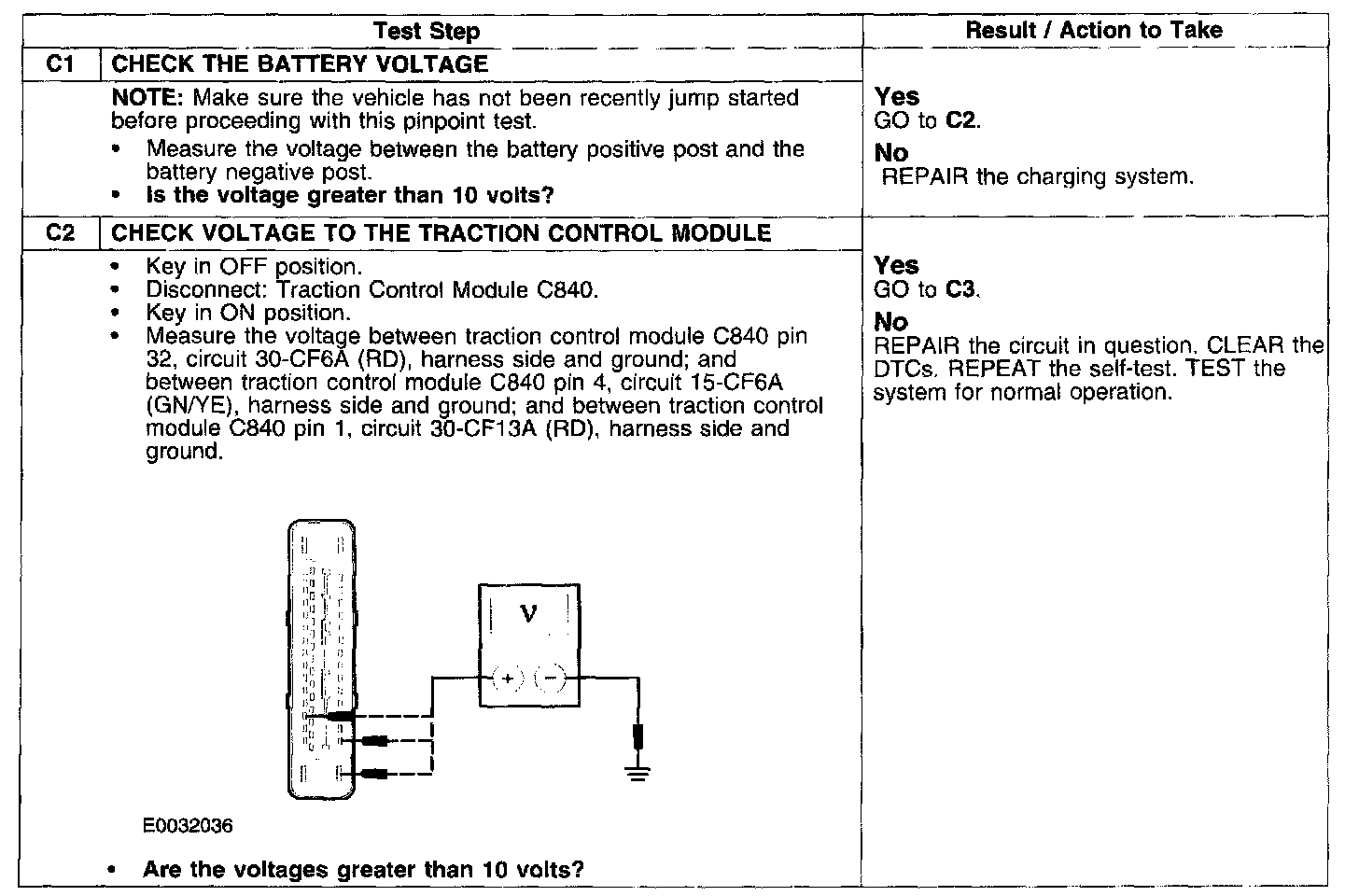

Test C1 - C2:

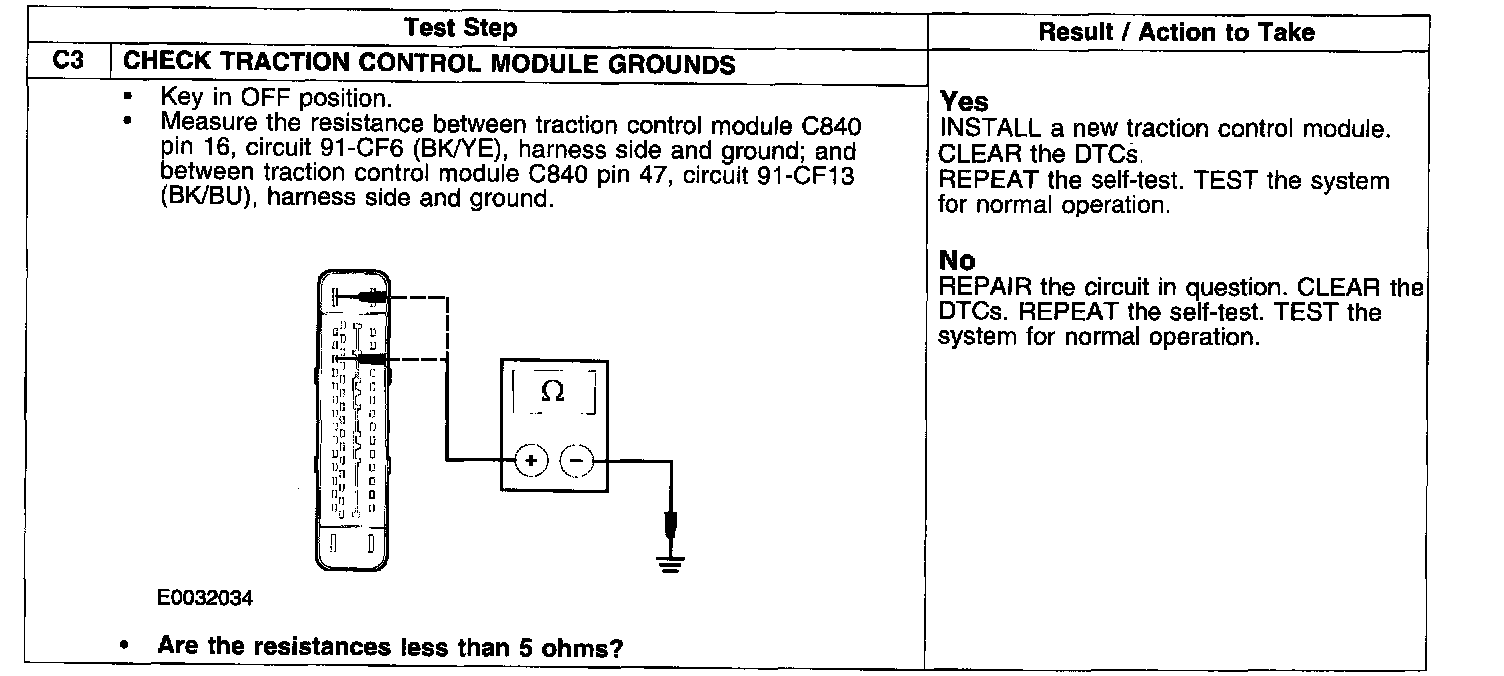

Test C3:
