Home >> Ford >> 2003 >> Focus L4-2.0L DOHC VIN 5 >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Pinpoint Tests >> L

L

PINPOINT TEST L: THE TRACTION CONTROL IS INOPERATIVE

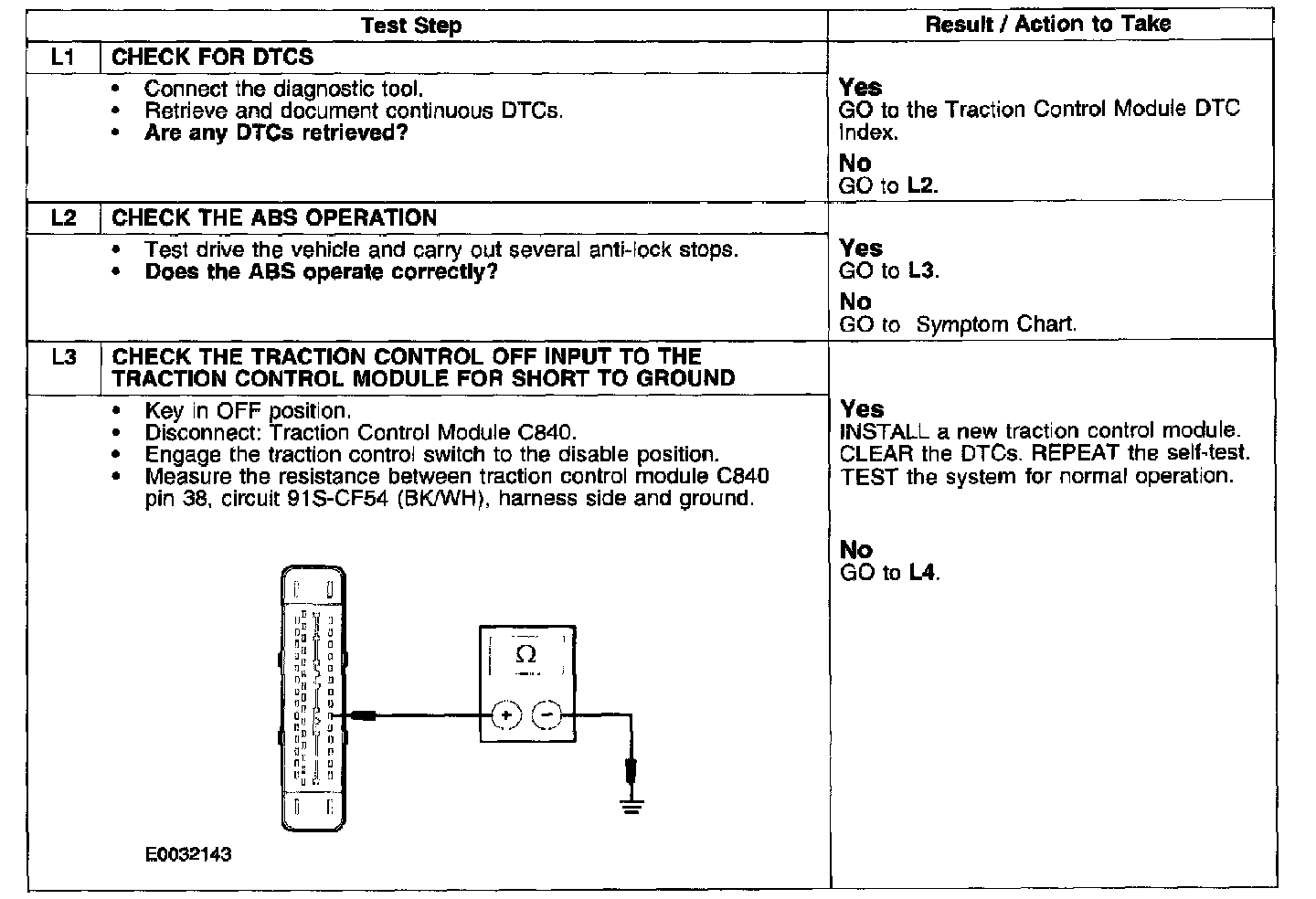

Test L1 - L3:

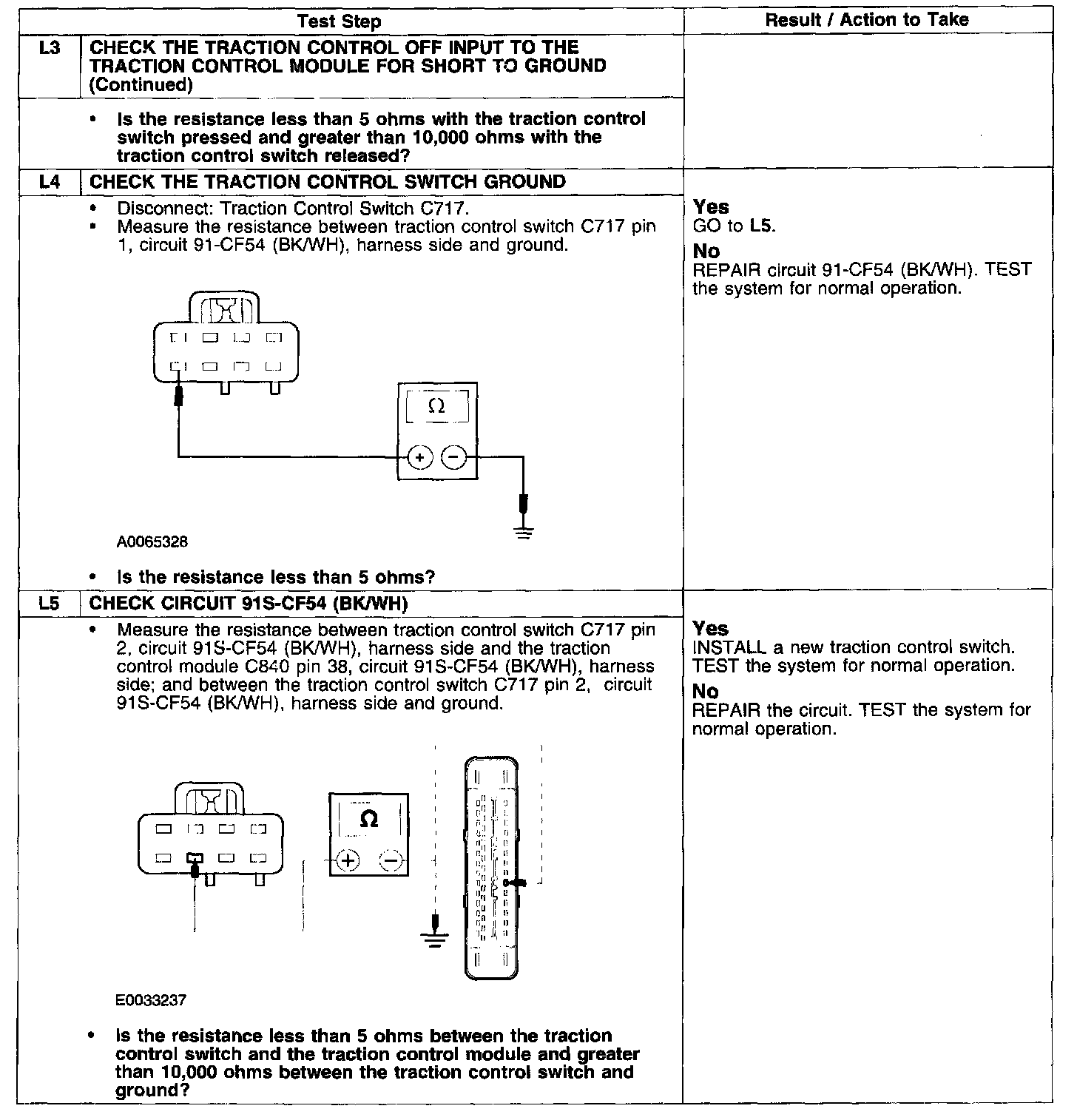

Test L3 - L5:
