Applications Shift Speeds - Approx MPH

Shift Speeds

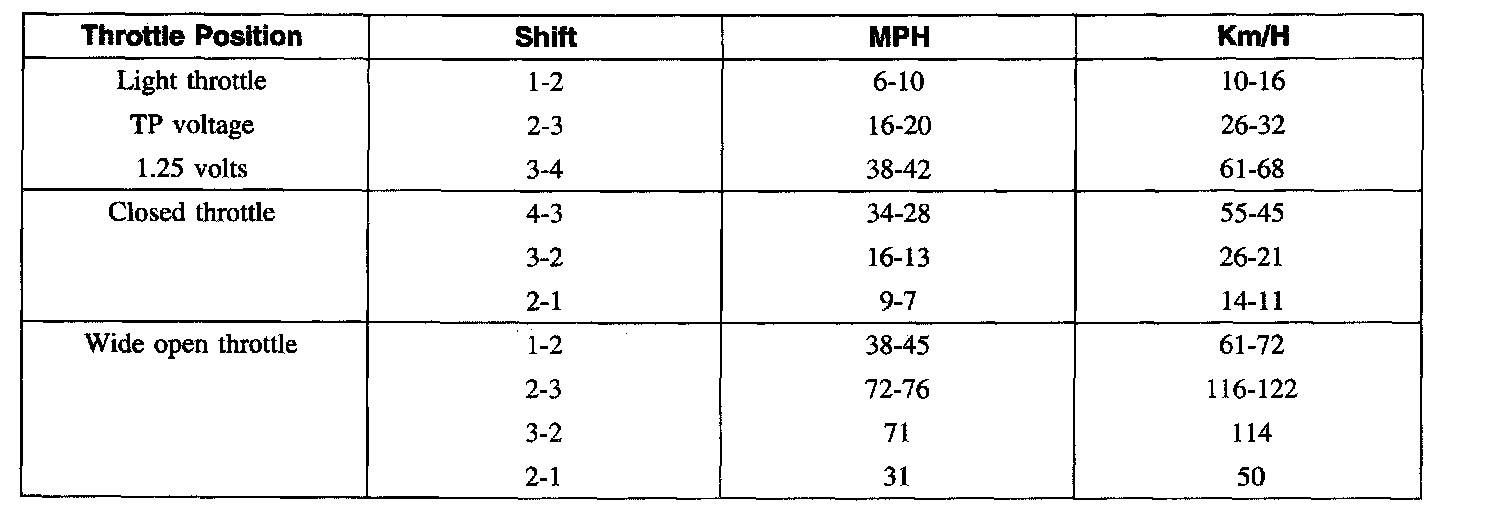

Shift Speeds 3.8L (3:27:1 Axle Ratio)

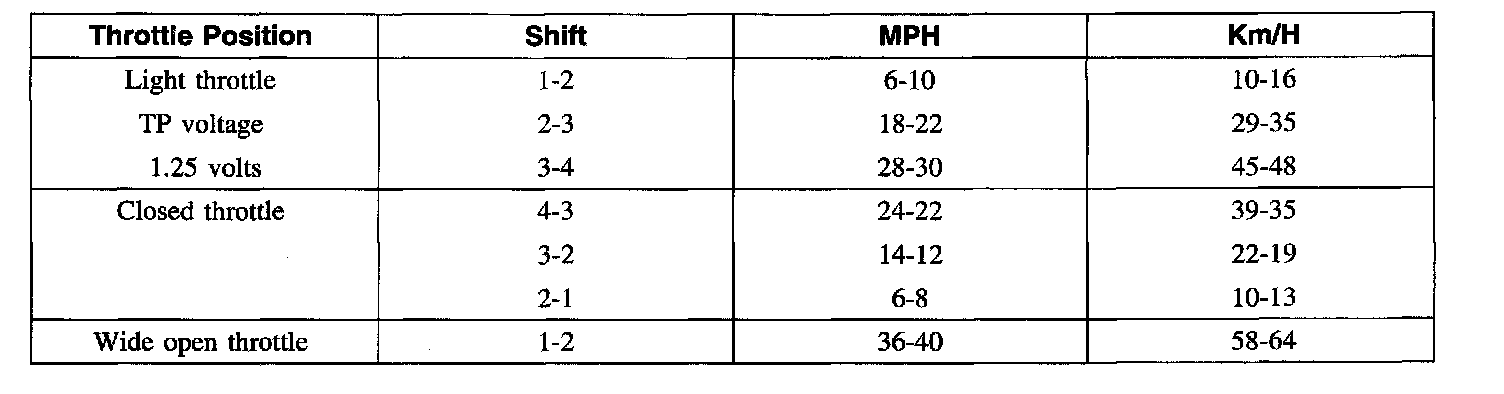

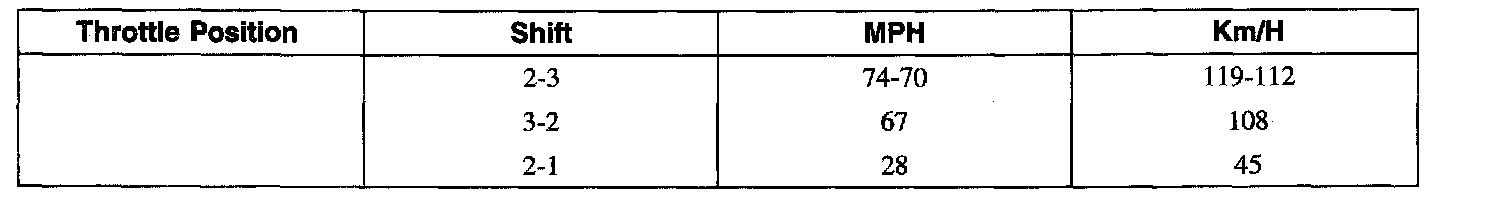

Shift Speeds 3.8L (3:08:1 Axle Ratio)
