Floor Duct

REMOVAL
1. Remove the evaporator core housing. Refer to: Heating and Air Conditioning, Evaporator Case, Service and Repair, Removal and Installation, Removal and Installation

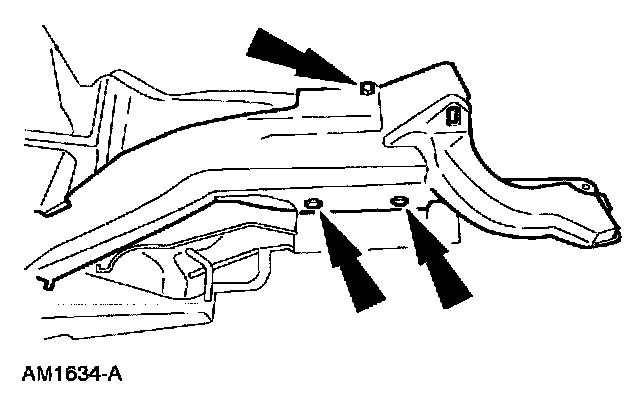

2. Remove the screws and remove the heater outlet floor duct.

INSTALLATION
1. To install, reverse the removal procedure.
