Drive Belt: Diagrams

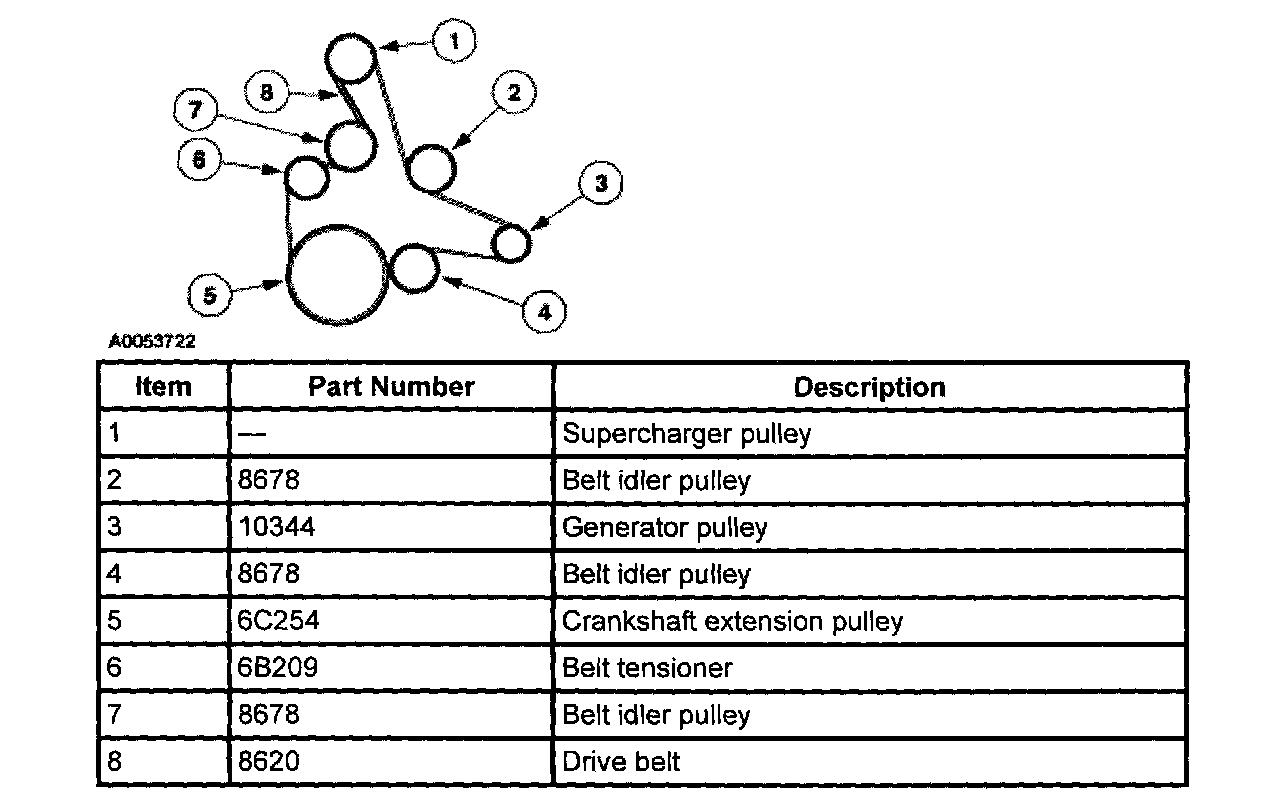

Component Locations -Supercharger Accessory Drive:

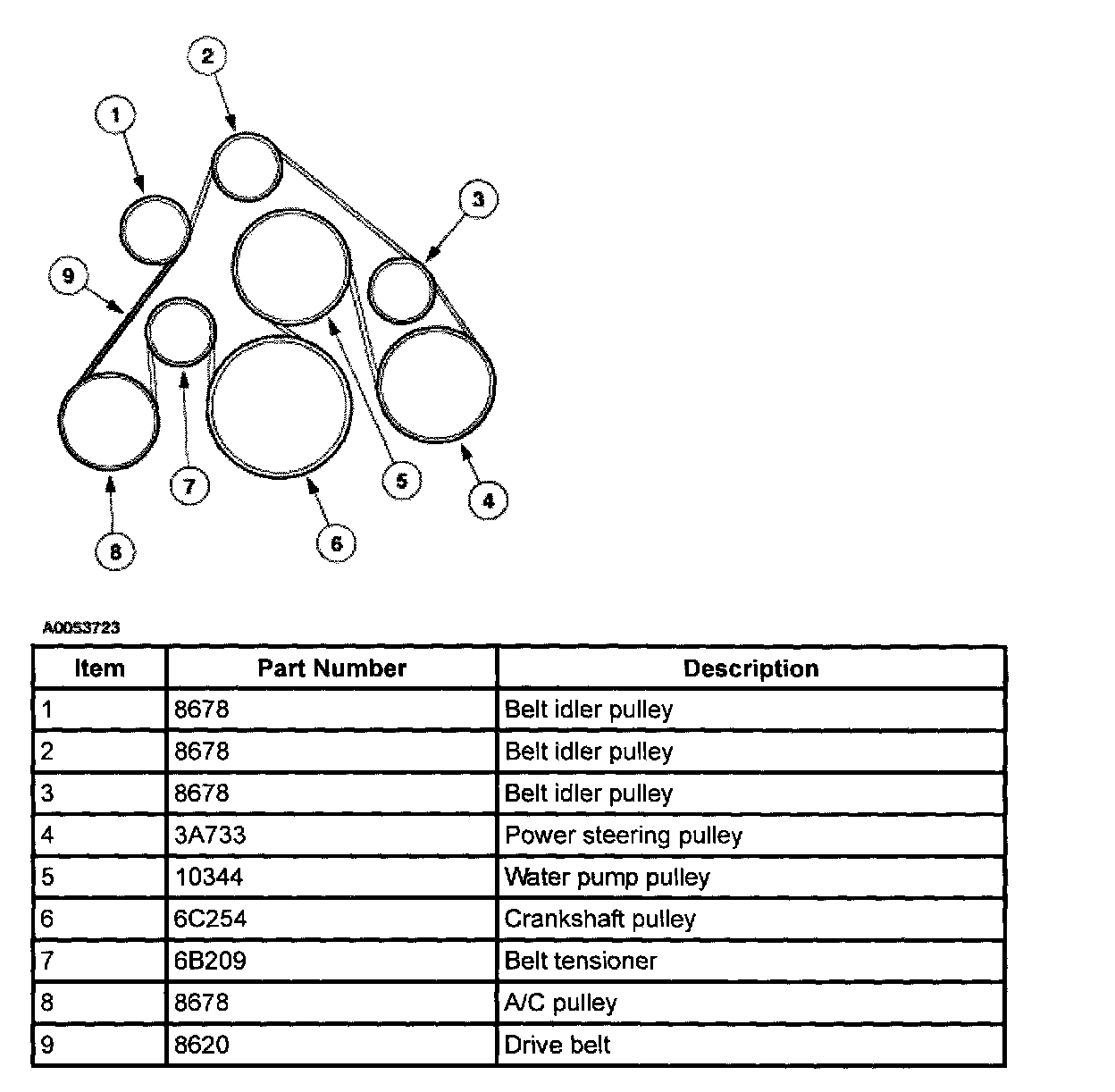

Component Location -Accessory Drive:
