Home >> Ford >> 2004 >> Thunderbird V8-3.9L VIN A >> Repair and Diagnosis >> Lighting and Horns >> Courtesy Lamp >> Testing and Inspection >> Pinpoint Tests >> Connector Circuit Reference >> Dome/MAP Lamp C929

Dome/MAP Lamp C929

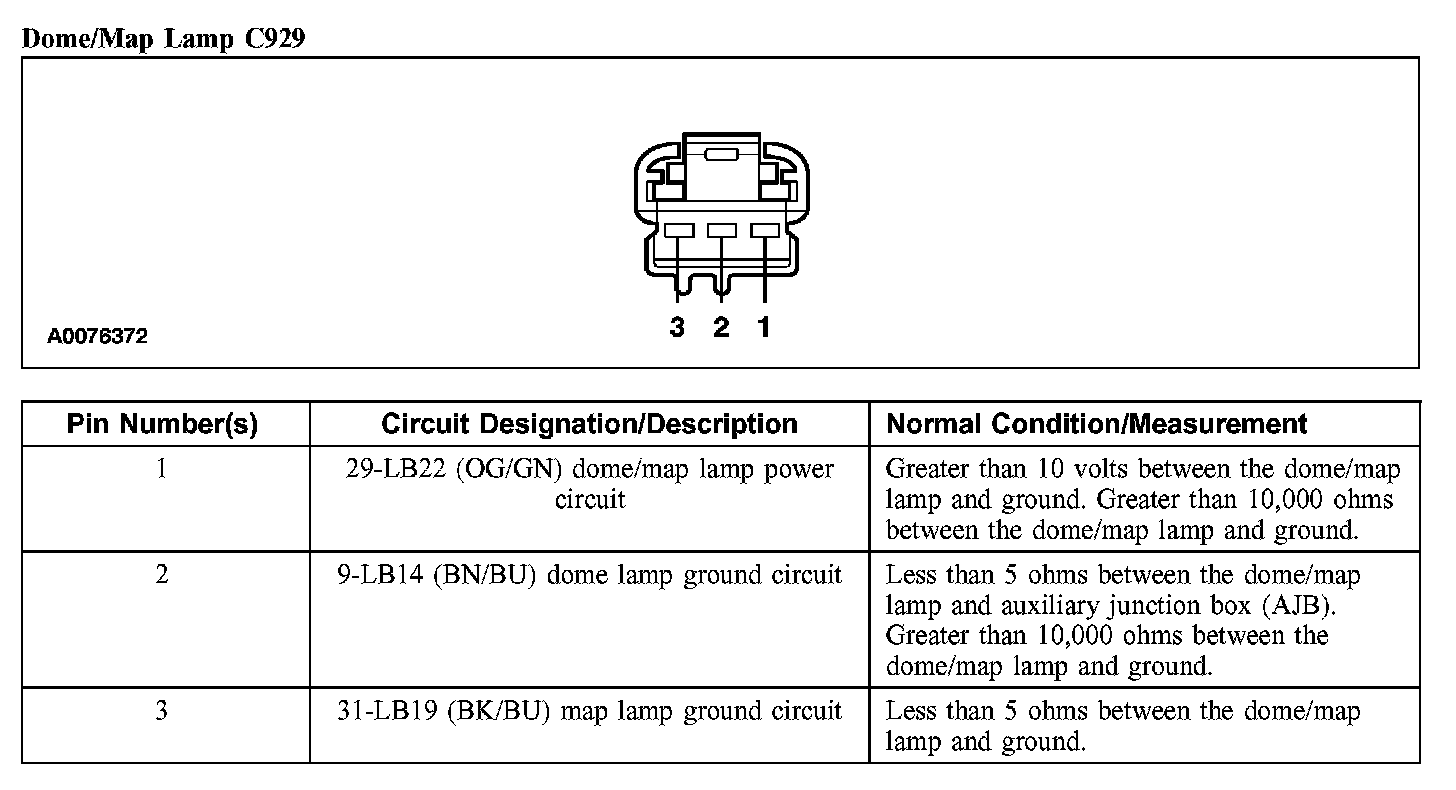

Dome/Map Lamp C929:
