Rear Footwell Duct

REAR FOOTWELL DUCT

Removal and Installation

NOTE: Early build vehicles use a rear footwell duct as shown in this procedure. Late build vehicles use duct work that is integrated into the floor console.

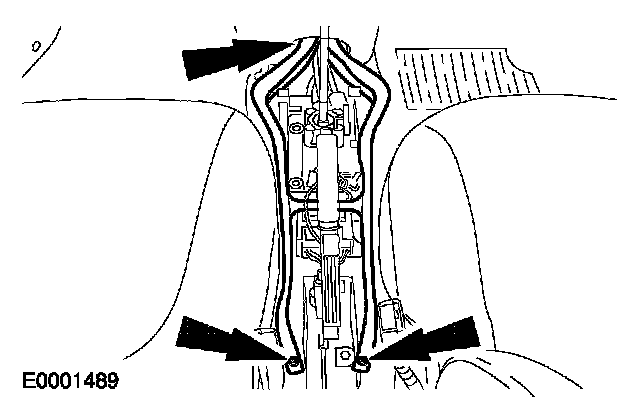

1. Remove the floor console.

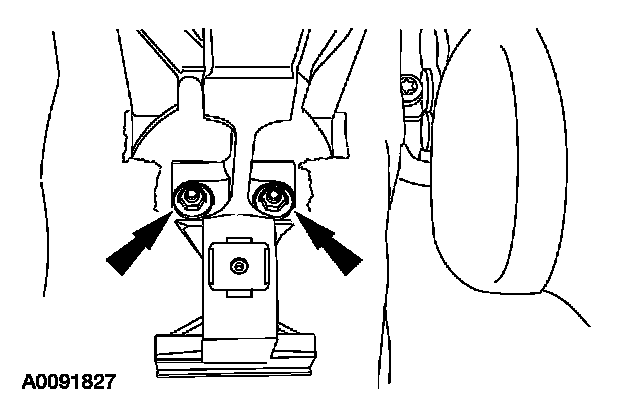

2. Remove the two rear armrest bracket nuts (if equipped).

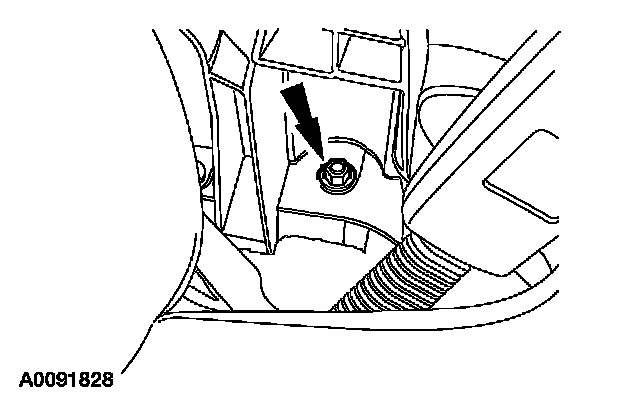

3. Remove the remaining armrest bracket nut and the armrest bracket.







4. Detach and remove the rear footwell duct.
5. To install, reverse the removal procedure.
