Luggage Compartment Lid Remote Switch C534
Luggage Compartment Lid Remote Switch C534

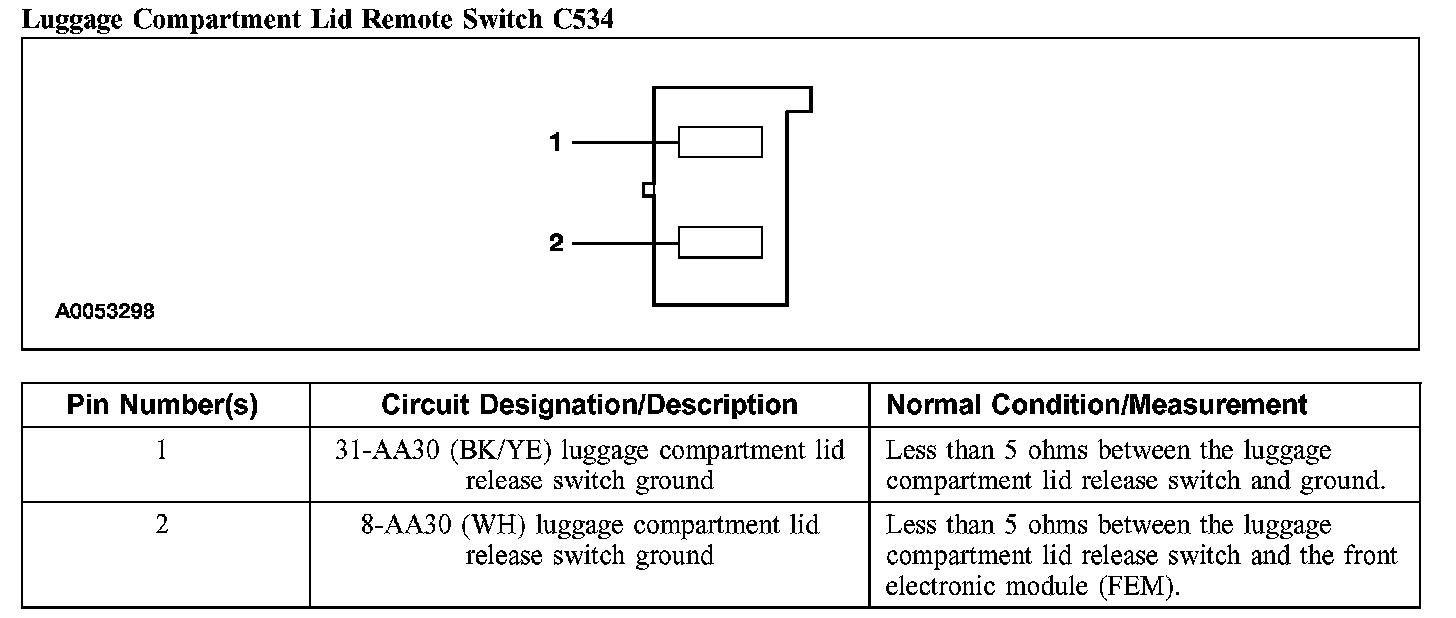

Luggage Compartment Lid Remote Switch C534:
