Thunderbird V8-3.9L VIN A
>>
Repair and Diagnosis
>>
Body and Frame
>>
Locks
>>
Power Locks
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Connector Circuit Reference
>>
Rear Electronic Module (Rem) C420F
Rear Electronic Module (Rem) C420F

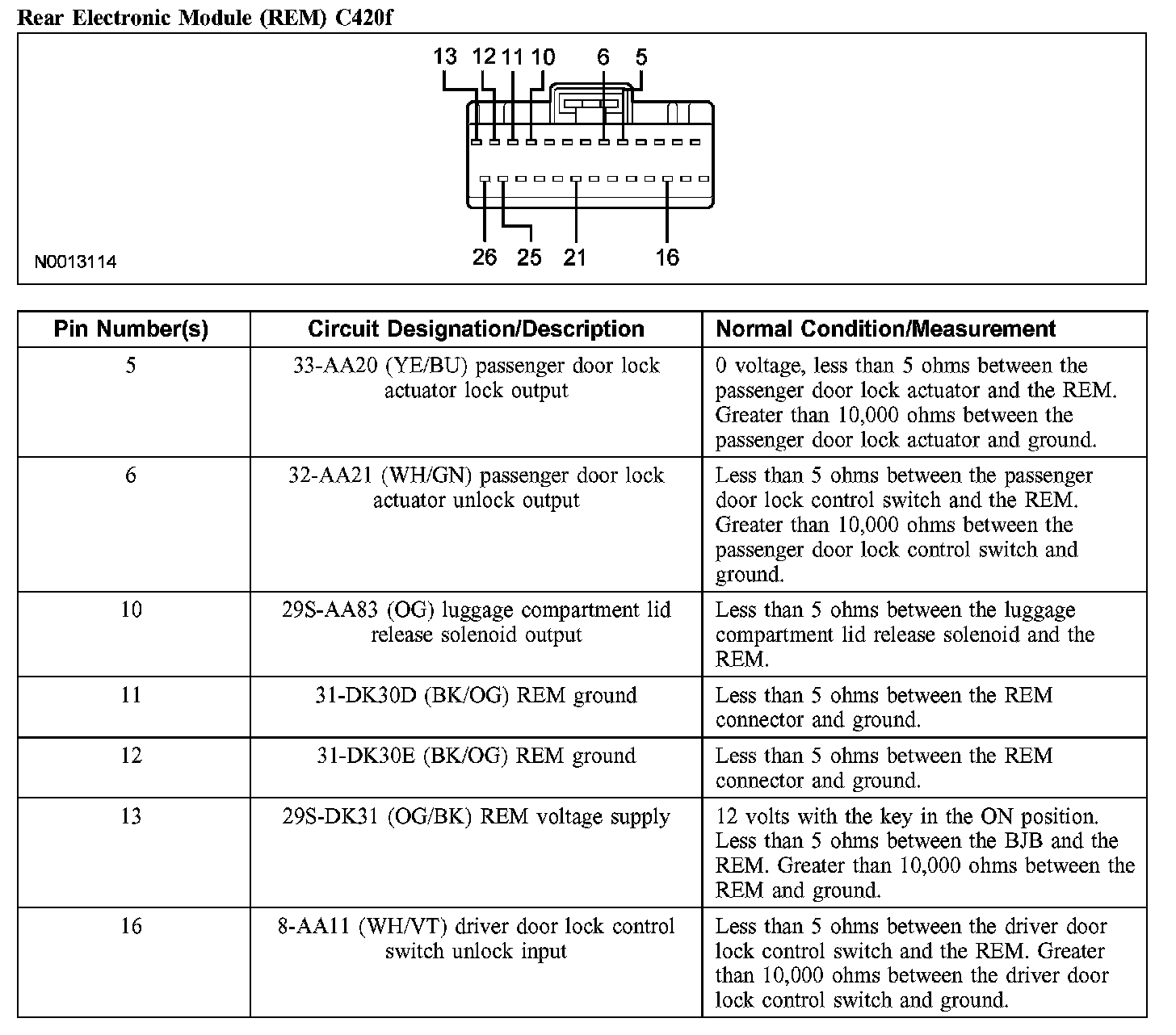

Rear Electronic Module (REM) C420f:

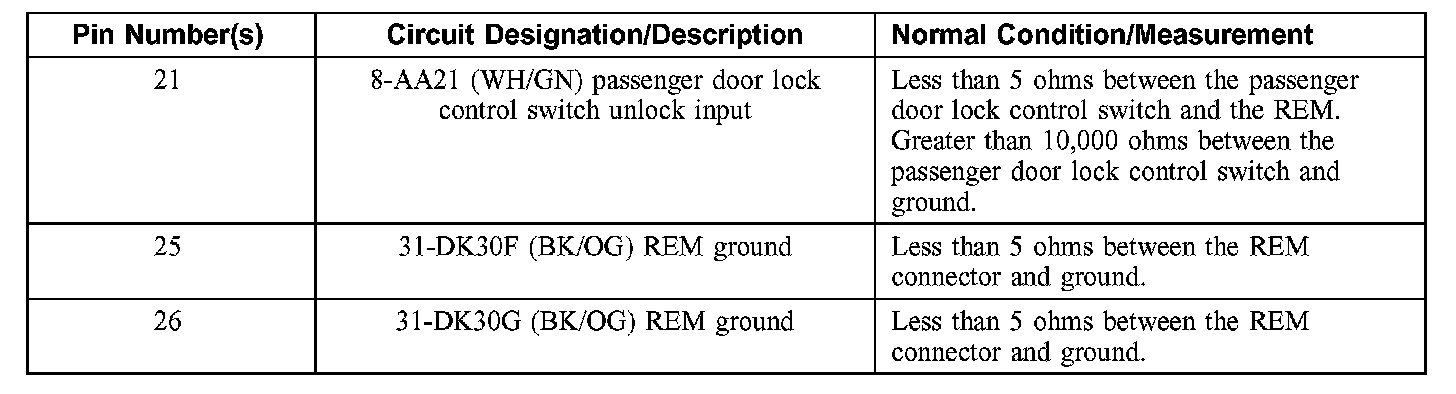

Rear Electronic Module (REM) C420f (Part 2):
