Connector Circuit Reference

Connector Circuit Reference

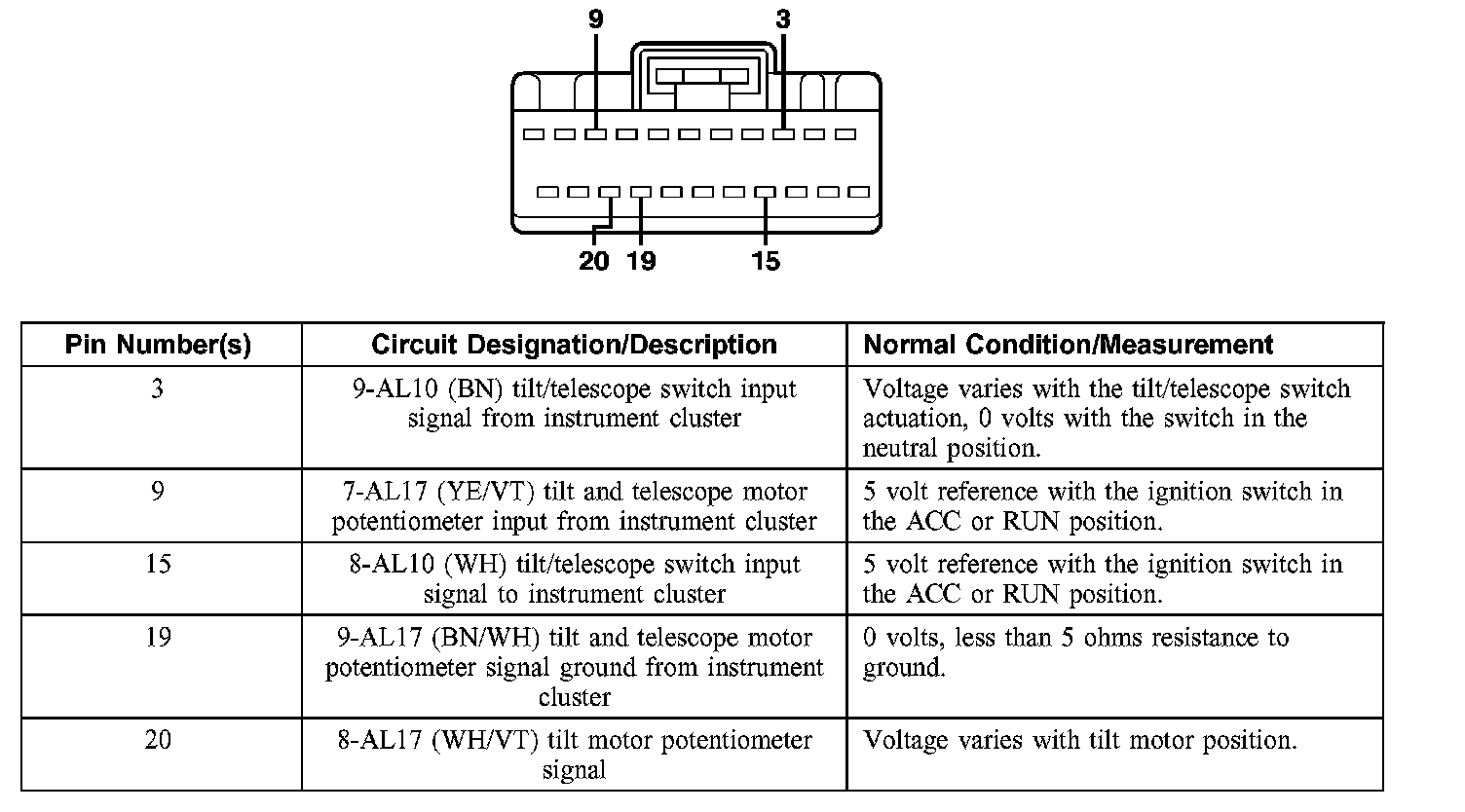

Instrument Cluster Module (ICM) C220c

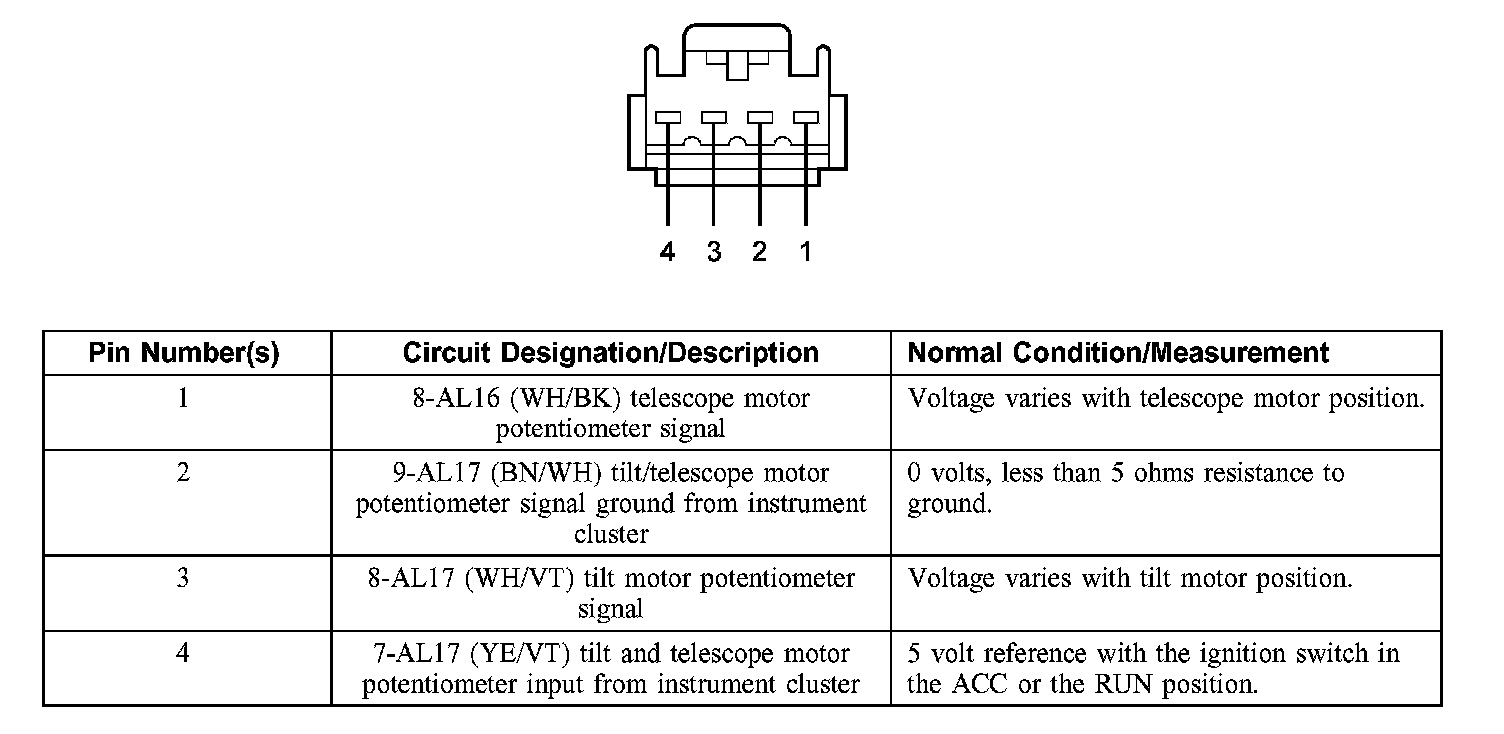

Steering Column Potentiometer C222

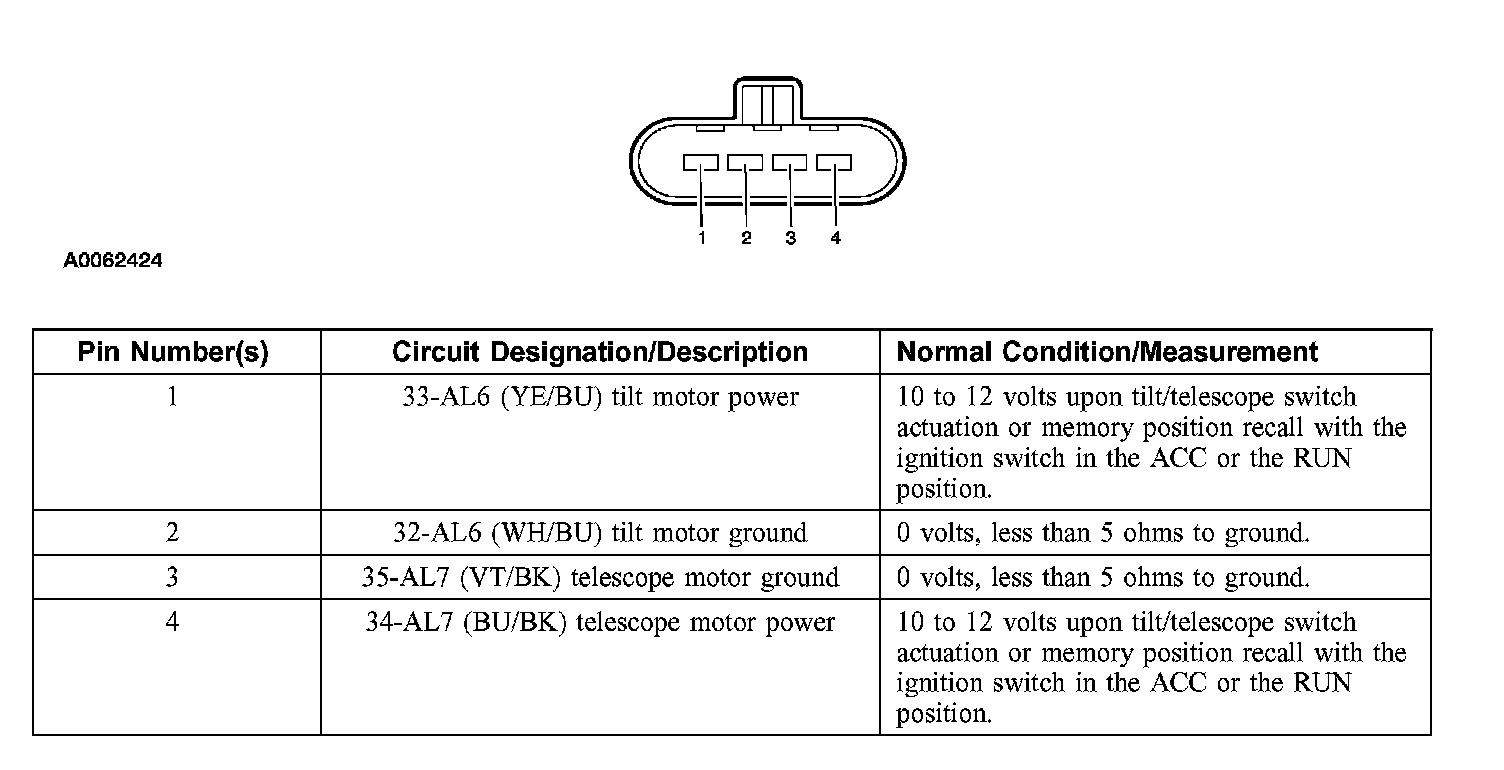

Tilt/Telescopic Motor C227

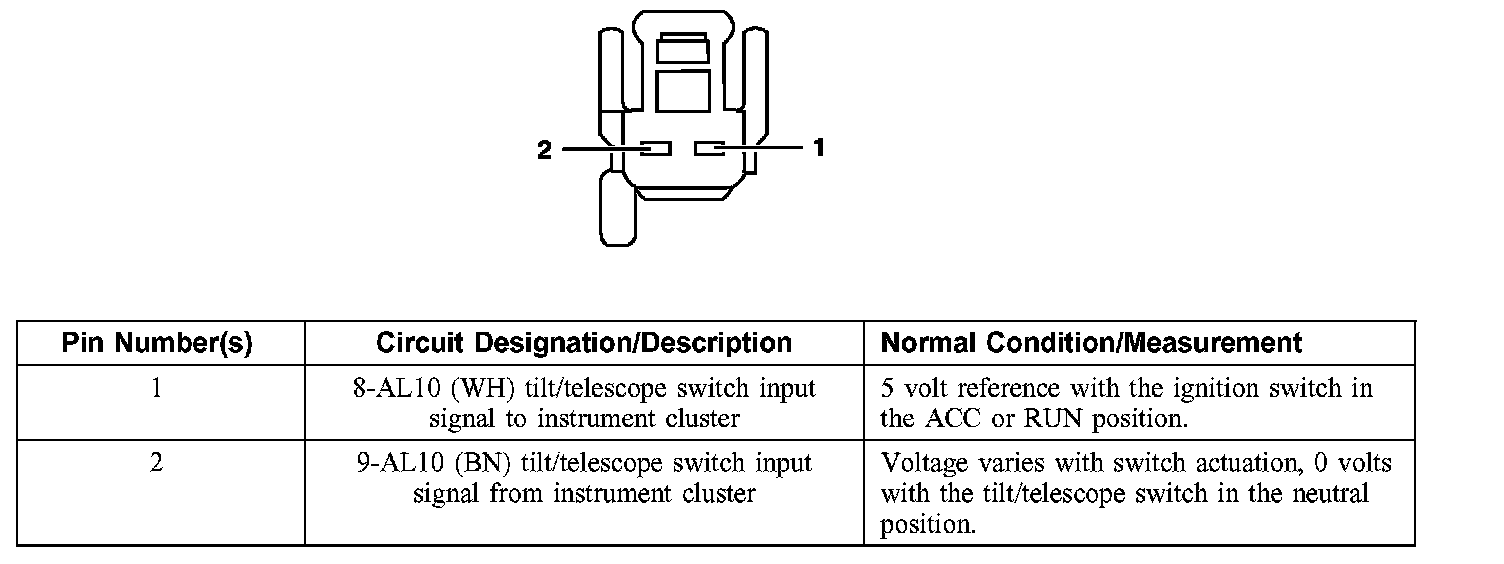

Tilt/Telescope Switch C2250
