Supercharger Belt

Supercharger Belt

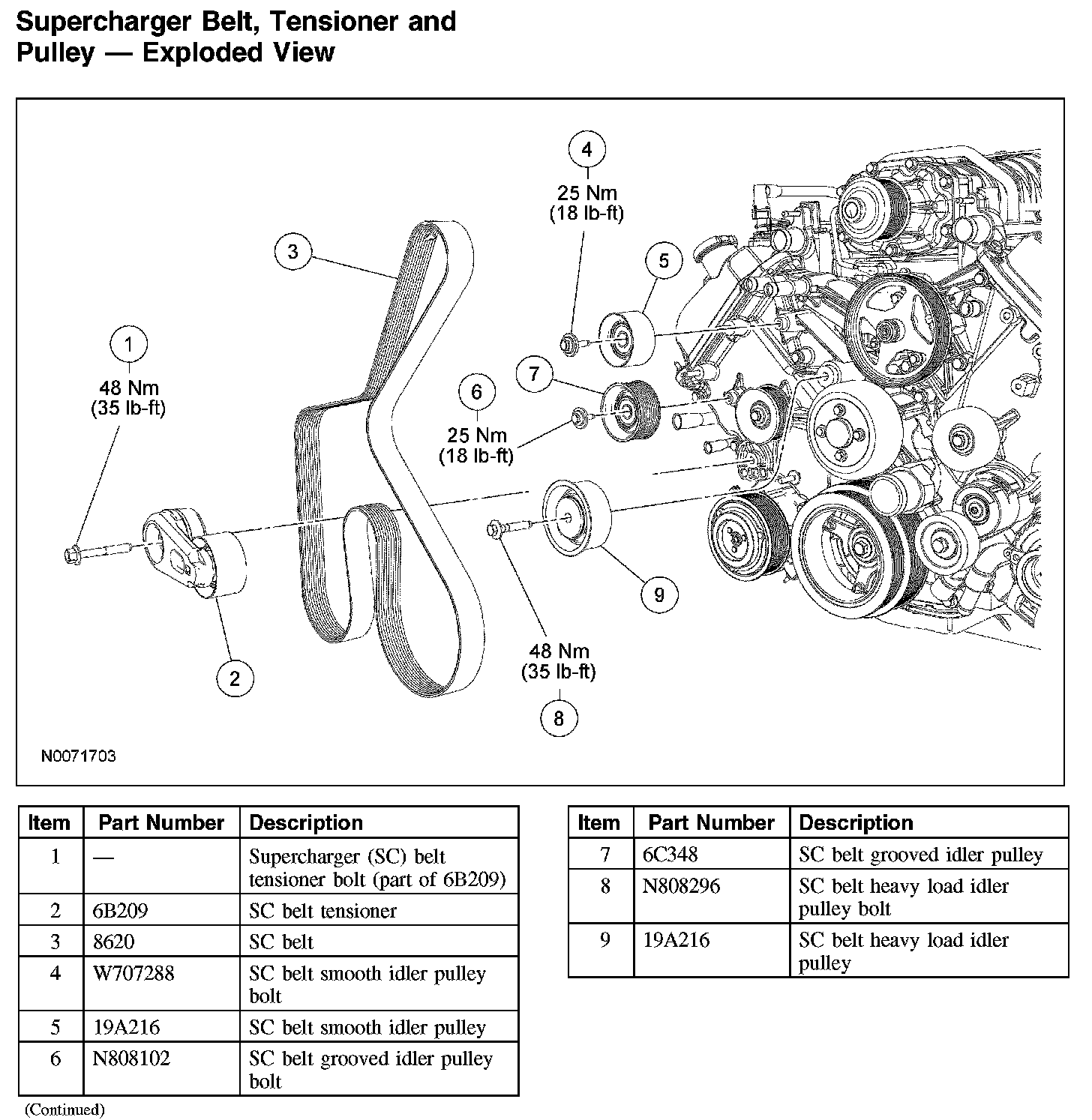

Supercharger Belt, Tensioner and Pulley - Exploded View:

Removal and Installation
1. Remove the accessory drive belt.
2. Using a suitable belt tensioner release tool, rotate the supercharger (SC) belt tensioner clockwise and remove the SC belt from the SC pulley.

3. NOTE: The SC belt is routed behind the SC belt tensioner.

Remove the SC belt tensioner bolt, the tensioner and the SC belt.
^ To install, tighten to 48 Nm (35 lb-ft).

4. NOTE: Refer to the illustration for correct SC belt routing.

To install, reverse the removal procedure.
