Register - Passenger Side

Register - Passenger Side

Removal and Installation

1. Remove the passenger airbag module. For additional information, refer to Air Bag Systems.

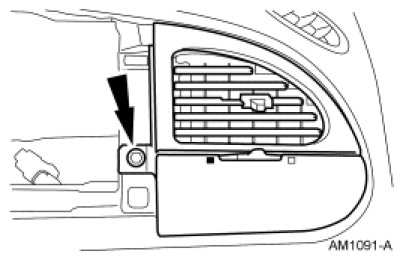

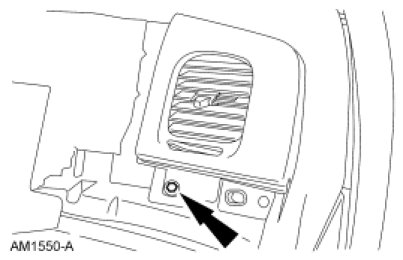

2. Remove the screw and the passenger side register.





3. To install, reverse the removal procedure.
