Accessory Drive Belt

Accessory Drive Belt - 4.6L (3V)

Removal and Installation

Bullitt vehicles

1. Remove the Air Cleaner (ACL) outlet tube. For additional information, refer to Fuel Delivery and Air Induction.

All vehicles

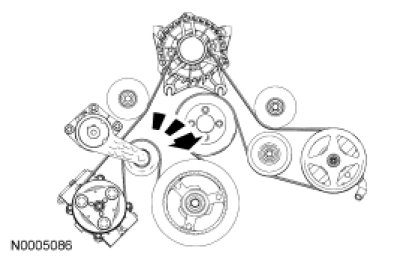

2. Rotate the accessory drive belt tensioner clockwise and remove the accessory drive belt.

3. NOTE: Refer to the illustration for correct drive belt routing.

To install, reverse the removal procedure.
