GMC Truck
>>
2007
>>
Yukon 2WD V8-4.8L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Multiple Junction Connector
>>
Diagrams
>>
C100 - C199
>>
C113
C113

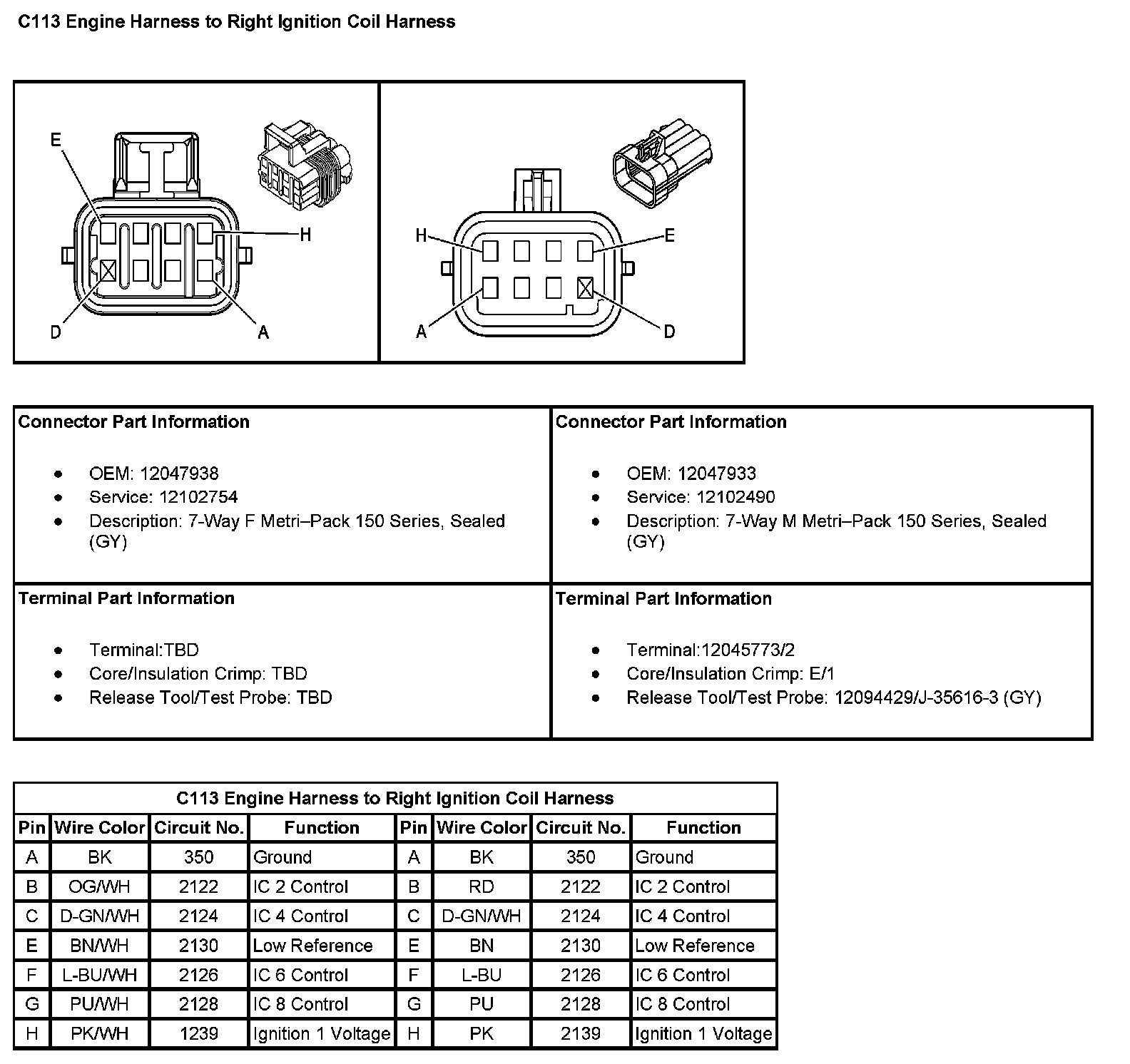

C113 Engine Harness To Right Ignition Coil Harness:
