Removal

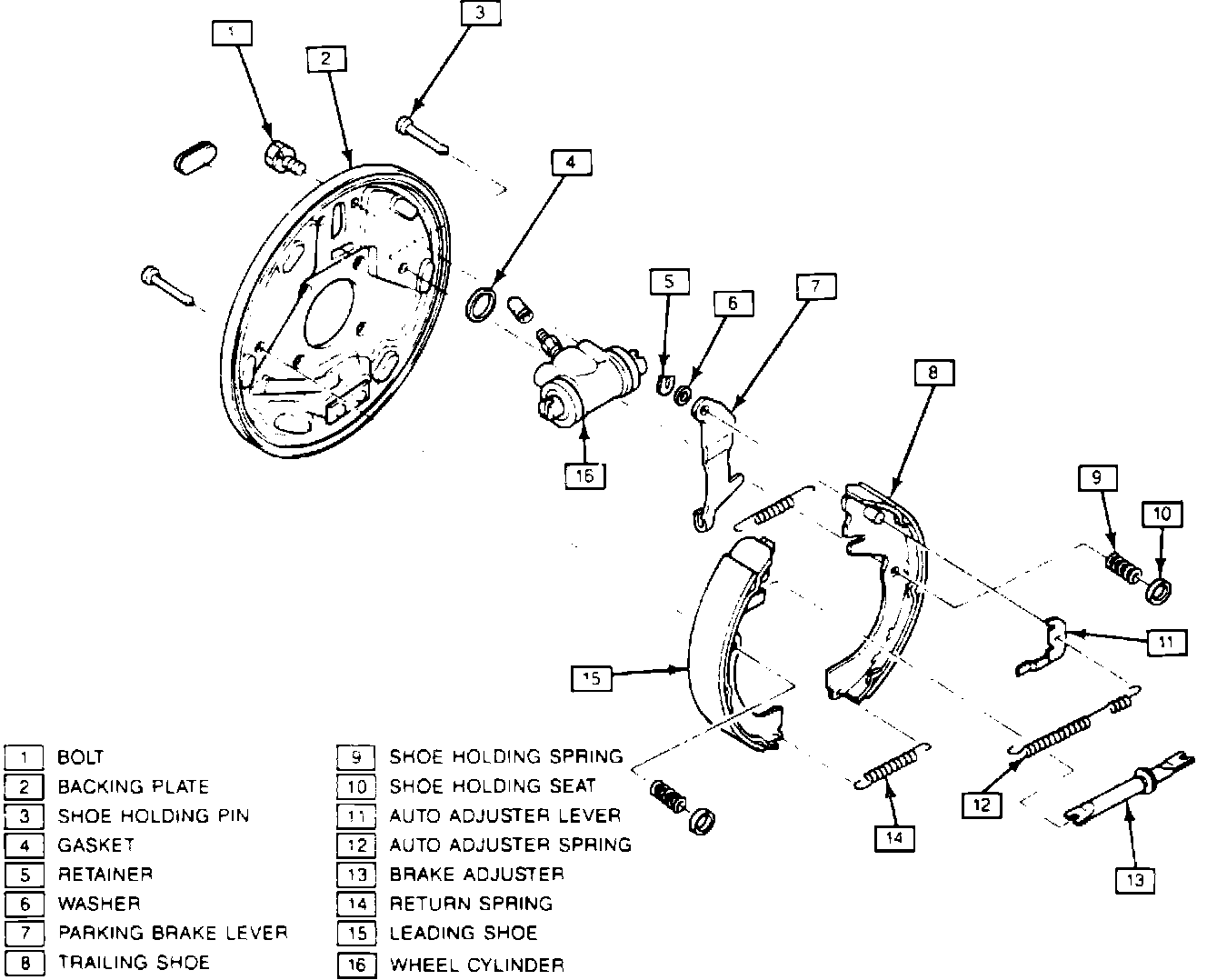

Fig. 1 Rear Drum Brake Assembly:

1. Raise and support rear of vehicle.
2. Remove wheels, then brake hubs and drums.
3. Remove return spring and auto adjuster spring.
4. Remove leading shoe hold-down spring and pin, Fig. 1.
5. Remove leading shoe and auto adjuster.
6. Remove trailing shoe hold-down spring and pin, then shoe.
7. Disconnect parking brake cable from lever, then remove trailing shoe.
8. Remove parking brake lever from trailing shoe.
