Chart C-8A Shift Light Inoperative

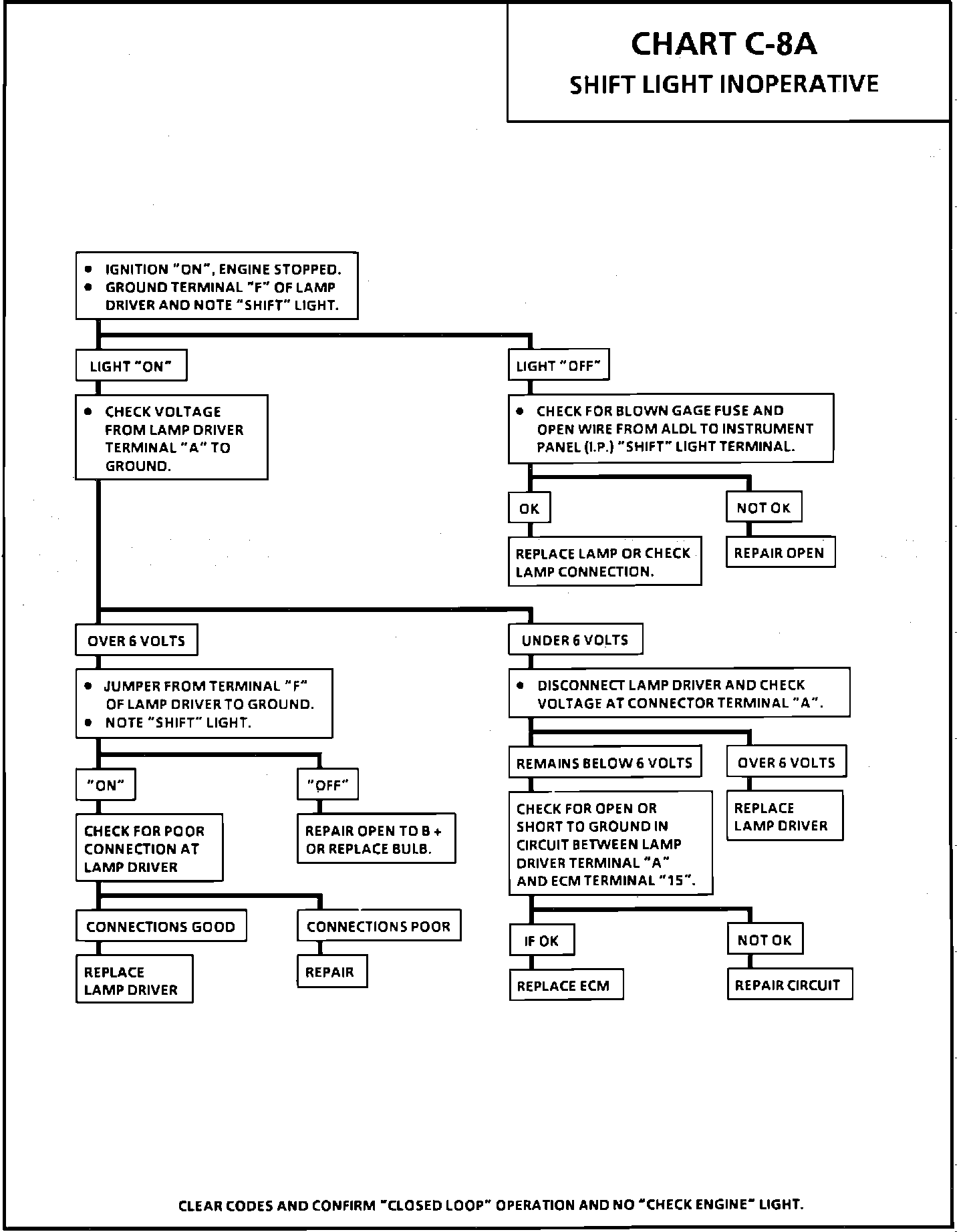

Chart C-8A:




Chart C-8A/B Wiring Diagram:






This chart is used for diagnosing malfunctions in the shift indicator light.
