Clutch Pedal Assembly: Adjustments

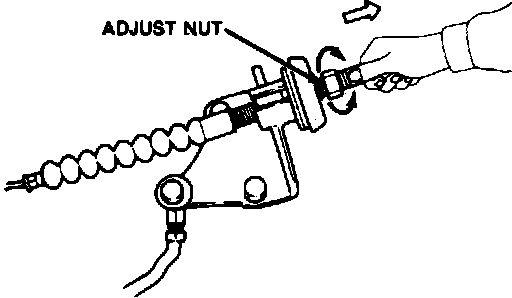

Fig. 1 Clutch Cable Adjustment:

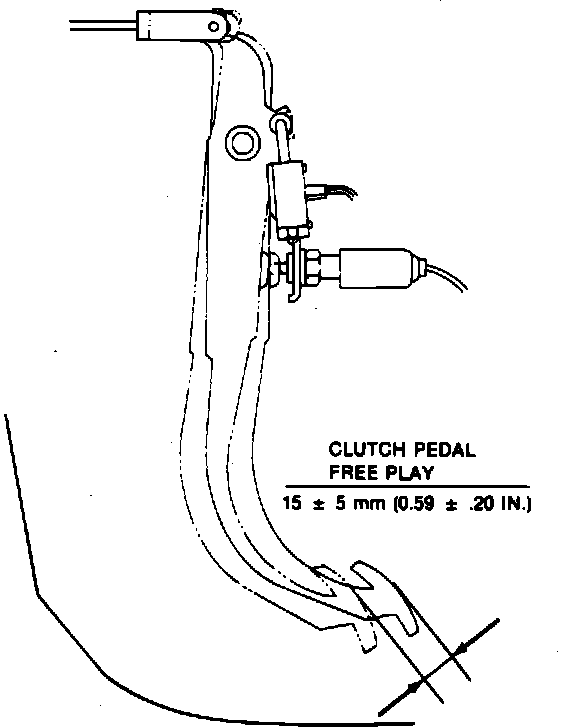

Fig. 2 Clutch Pedal Free Travel Measurement:

1. Disconnect battery ground cable.
2. Loosen clutch cable adjusting nut, Fig. 1, then pull cable rearward until it turns freely.
3. Turn adjusting nut as needed to adjust cable length. Release cable when pedal freeplay is within specifications, Fig. 2.
4. Tighten locknut securely.
