Radiator Cooling Fan Motor Relay: Locations

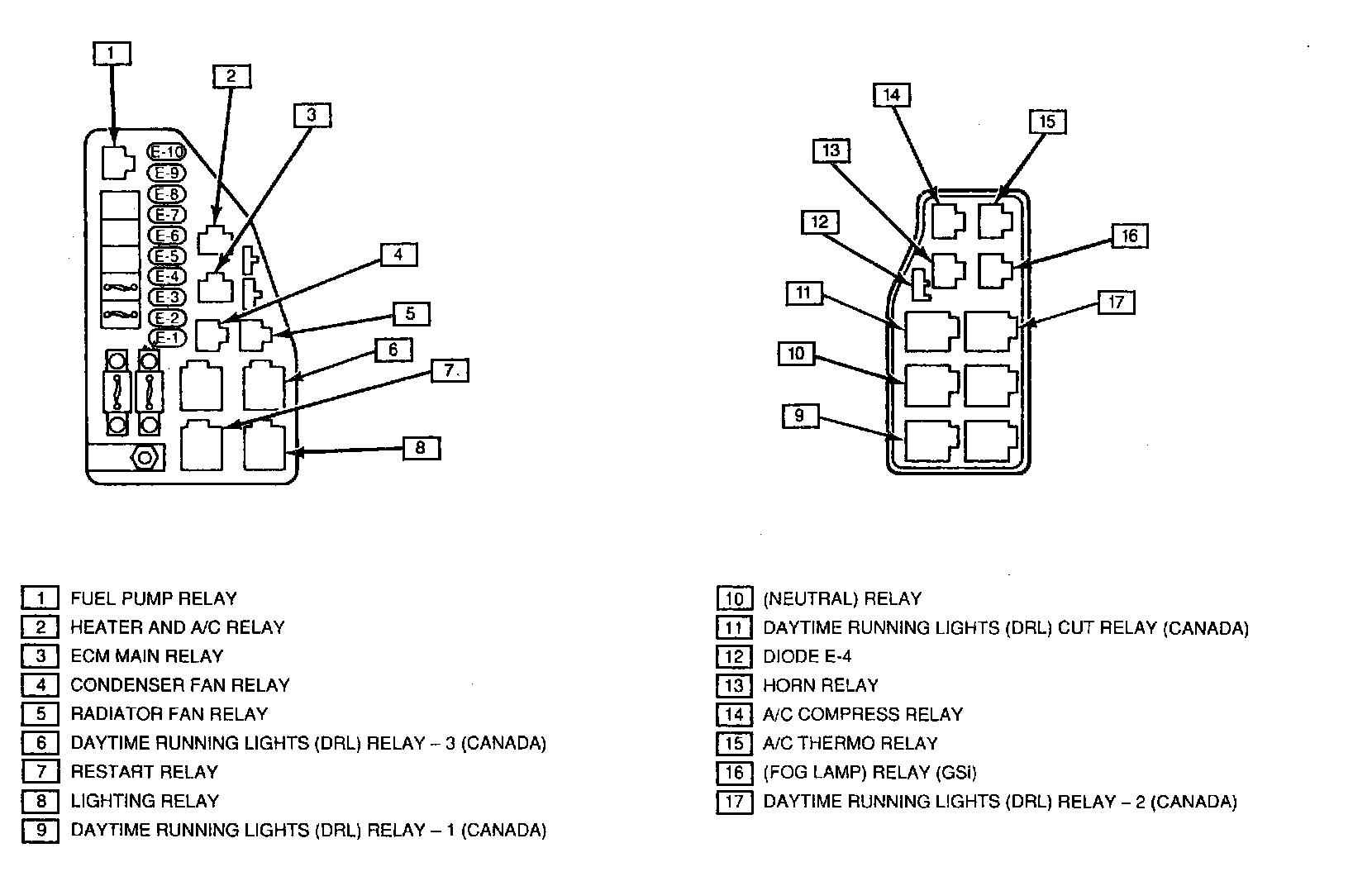

Fuse Block Details:

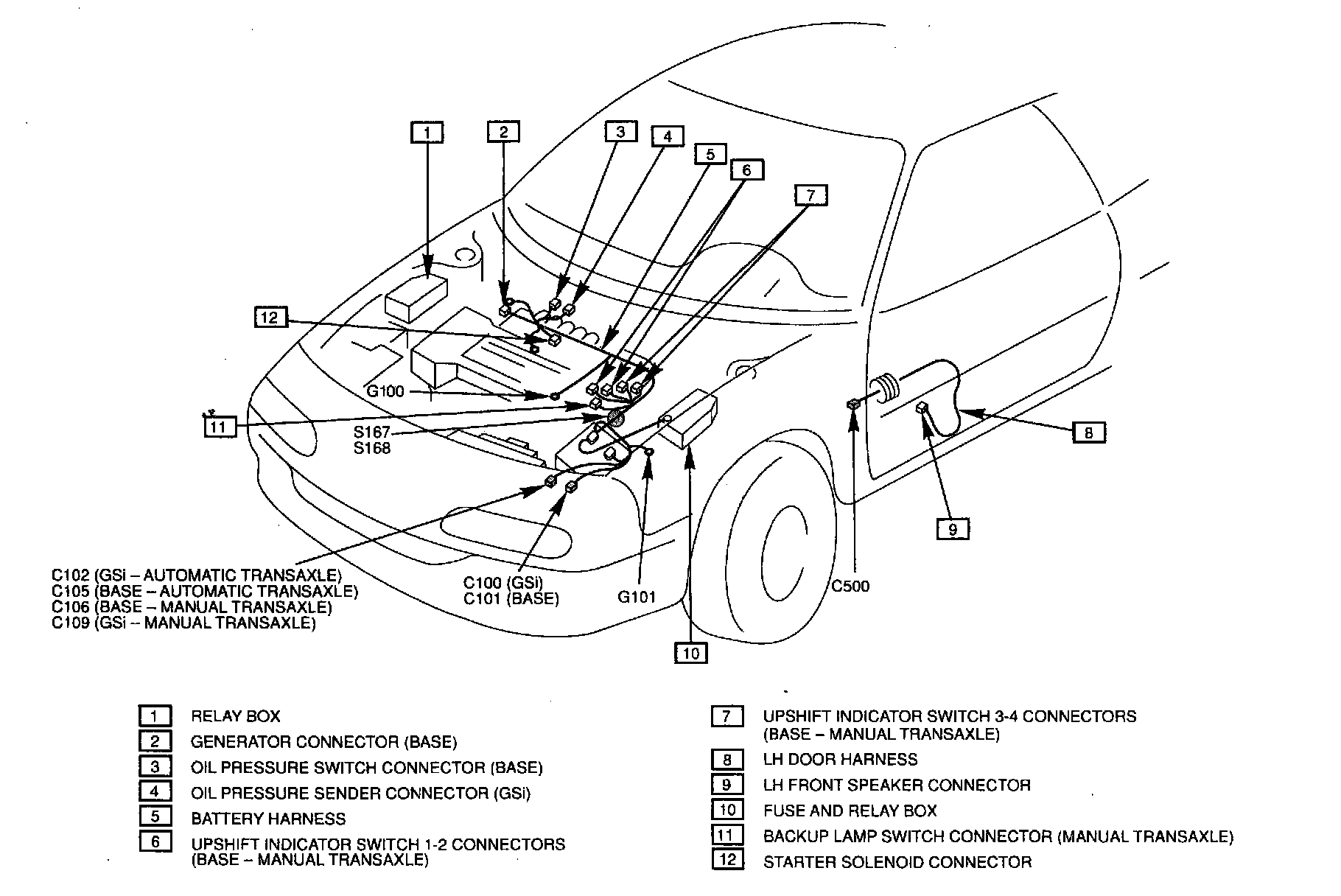

LH Door And Battery Harnesses:

The Coolant Fan Relays are located inside the Fuse & Relay Box.

The Fuse & Relay box is located in the LH engine compartment, near the battery.
