Home >> Geo >> 1993 >> Storm L4-1600cc 1.6L SOHC >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Component Tests and General Diagnostics >> Diagnostic Test Steps >> Compressor Controls >> Test Steps A4 Thru A11

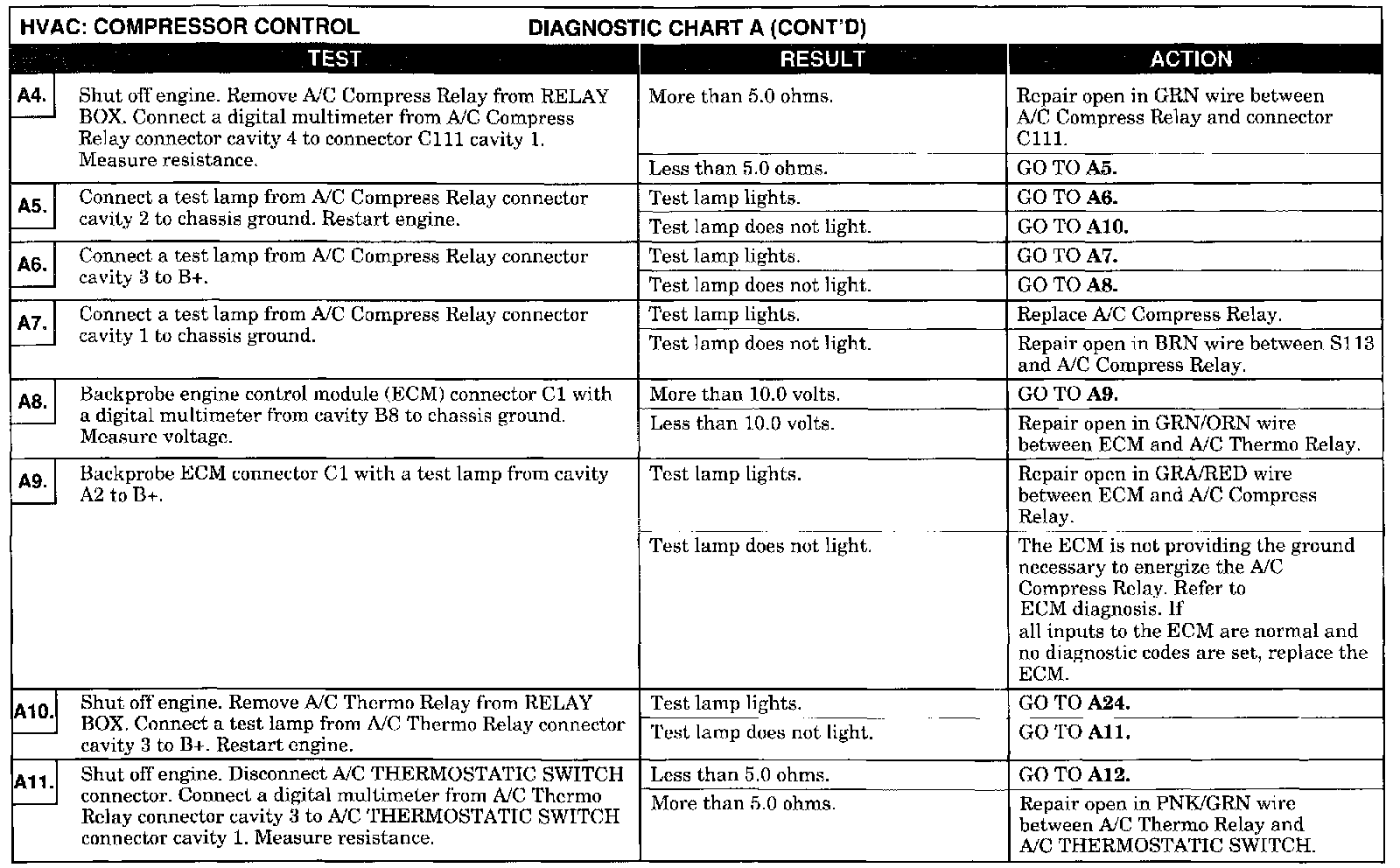

Test Steps A4 Thru A11

HVAC Compressor System Diagnosis:
