Home >> Geo >> 1993 >> Storm L4-1600cc 1.6L SOHC >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Ignition Controls

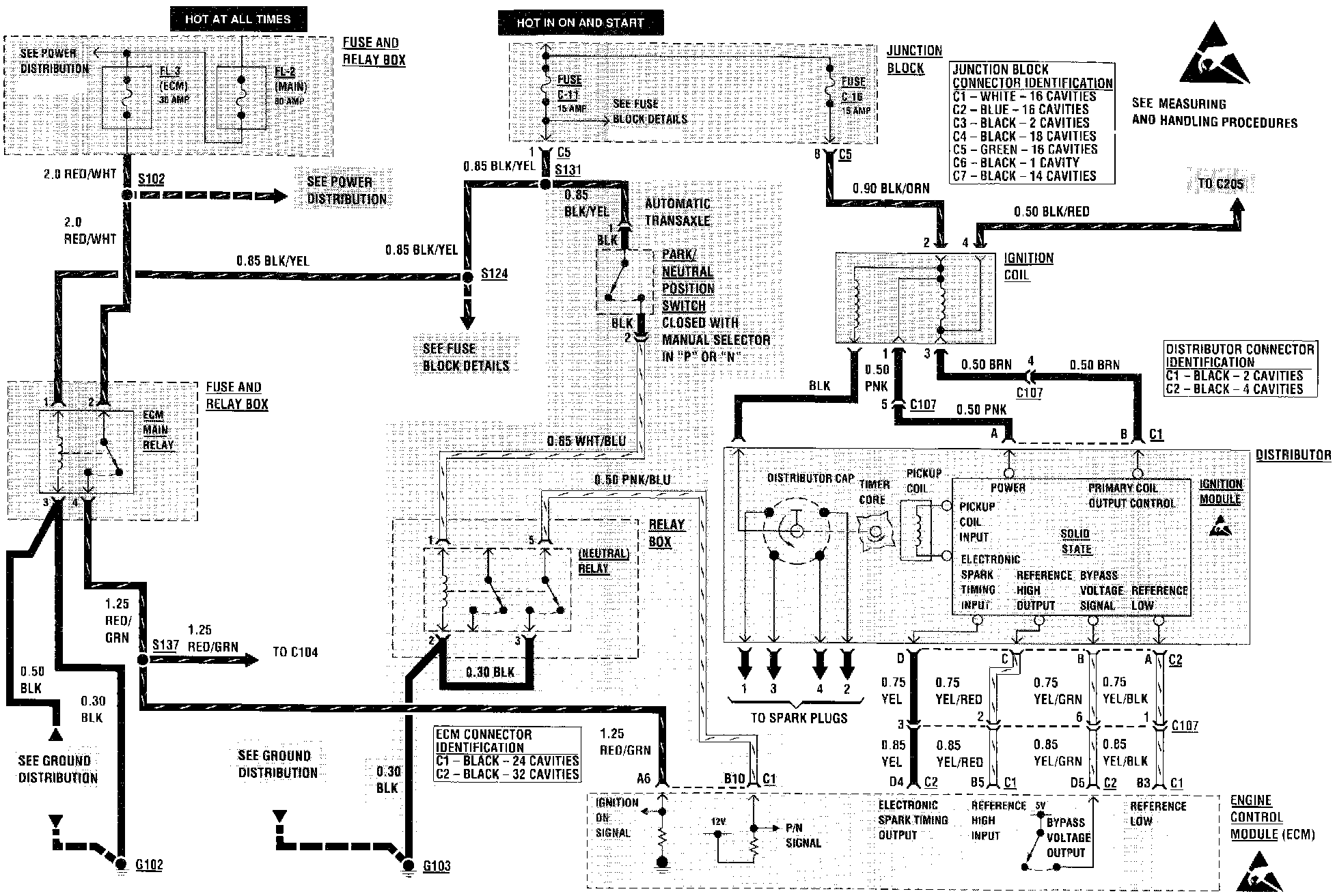

Ignition Controls

Engine Controls 1.6L VIN 6:
